In solvent-free laminating equipment, the quality of the final laminated film depends on much more than the coating roller.
Before the adhesive reaches the coating unit, it must pass through a complete material-delivery system that may include storage tanks, pumps, metering units, flexible hoses and mixing components.
If material temperature changes during this journey, adhesive viscosity can change as well.
For solvent-free polyurethane systems, this can affect how easily the material is pumped, metered and delivered to the laminating section.
A heated adhesive feed hose helps maintain a controlled thermal pathway between different machine modules so that the adhesive arrives at the next process stage under more consistent conditions.

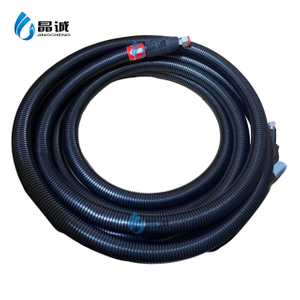

Jingcheng heated hoses are designed for solvent-free laminating machines, including equipment using single-component and two-component polyurethane systems.
The hose may appear to be only a flexible connection.
However, in a continuous laminating process, it forms part of the adhesive feed system.
If the material cools inside the hose, several changes may occur:
Viscosity may increase
Pump resistance may rise
Metering response may change
Pressure may become less stable
Adhesive delivery may become slower
These changes do not necessarily originate in the pump or mixing unit.
Sometimes, the flexible transfer section itself becomes the source of process variation.
Maintaining the hose temperature helps reduce this variable.
Many solvent-free laminating systems use separate polyurethane components before mixing.
When Component A and Component B travel through separate feed lines, the thermal condition of both paths becomes important.
If one line operates at a different temperature from the other, the two materials may have different viscosities when they reach the metering or mixing section.
A well-designed heated hose system helps maintain more comparable material conditions before the components are combined.
This can support:
More predictable metering
More stable pressure response
Consistent material feed
Smoother machine startup
Better control during continuous production
The hose should always be configured according to the actual adhesive and equipment requirements.
The source product uses uniformly arranged heating elements around the hose.
The purpose is to reduce large temperature differences along the internal material path.
This is important because one localized cold section can affect the adhesive even when the average temperature of the hose appears correct.
More consistent heating can help reduce:
Localized adhesive thickening
Pressure fluctuation
Material accumulation
Delayed startup
Unstable feed conditions
Thermal insulation also helps limit unnecessary heat loss to the surrounding environment.
Solvent-free laminating lines often operate for long production runs.
During continuous operation, even a small variation in adhesive delivery can become significant over time.
A temperature-controlled hose can help support a more consistent feed between:
Material Supply → Metering System → Heated Hose → Mixing/Coating Section
This can be particularly valuable in flexible packaging production where long production cycles and repeatable adhesive application are important.
Different laminating machines may use different:
Hose lengths
Inner diameters
End fittings
Electrical plugs
Temperature sensors
Voltage
Heating power
For this reason, replacement hoses should be matched to the actual machine rather than selected only by nominal diameter.
Jingcheng can manufacture customized hose assemblies according to:
Original hose samples
Technical drawings
Equipment parameters
Connector photographs
Machine specifications
This makes the hose suitable for both new equipment integration and replacement projects.
The source product lists a maximum heat-resistant temperature of approximately:
230°C
The actual operating temperature should be selected according to the adhesive manufacturer's recommended process window.
The purpose of the heated hose is not to use the highest possible temperature.
It is to maintain the adhesive at the temperature required by the laminating process.
This hose can be customized for:
Solvent-free laminating machines
Flexible packaging production lines
Polyurethane adhesive systems
Single-component PU equipment
Two-component PU systems
Adhesive metering equipment
Mixing and coating modules
Composite-film machinery
Imported laminator replacement projects
OEM adhesive feeding systems
Available configurations may include:
Hose length
Inner diameter
Heating power
Voltage
Temperature sensor
Machine-side fitting
Mixing-unit fitting
Electrical connector
Cable length
Outer protective layer
A complete assembly can be developed around the machine layout.
For accurate hose selection, please provide:
Adhesive type
Single- or two-component system
Operating temperature
Working pressure
Material viscosity if available
Required flow rate
Hose length
Inner diameter
Voltage
Heating power
Sensor type
End fittings
Electrical plug
Laminating machine brand and model
If the material delivery system becomes unstable, operators may need to spend additional time adjusting:
Temperature
Pump pressure
Metering settings
Startup conditions
A correctly configured heated hose helps reduce temperature-related variation before the adhesive reaches the coating section.
That can make the complete laminating system easier to operate and maintain.
In solvent-free laminating equipment, adhesive temperature affects more than simple flow.
It can influence viscosity, pressure response and metering behavior before the material reaches the coating system.
A customized heated adhesive hose provides a controlled flexible connection between machine modules, helping maintain stable material conditions during long production runs.
For laminating machine manufacturers and maintenance teams, the hose should therefore be treated as part of the adhesive-control system rather than a basic accessory.
