Replacement High-Pressure Heated Hose for Automotive Adhesive Equipment

Automotive production lines are built for continuous output.

When a pump, dispensing head or robot stops because of a hose failure, even a relatively small component can interrupt an entire production cell.

For maintenance teams, the real challenge is therefore not simply finding a hose with the correct diameter.

The replacement must match the original system in:

• Pressure capability

• Temperature performance

• Fittings

• Hose length

• Electrical configuration

• Temperature sensor

• Installation geometry

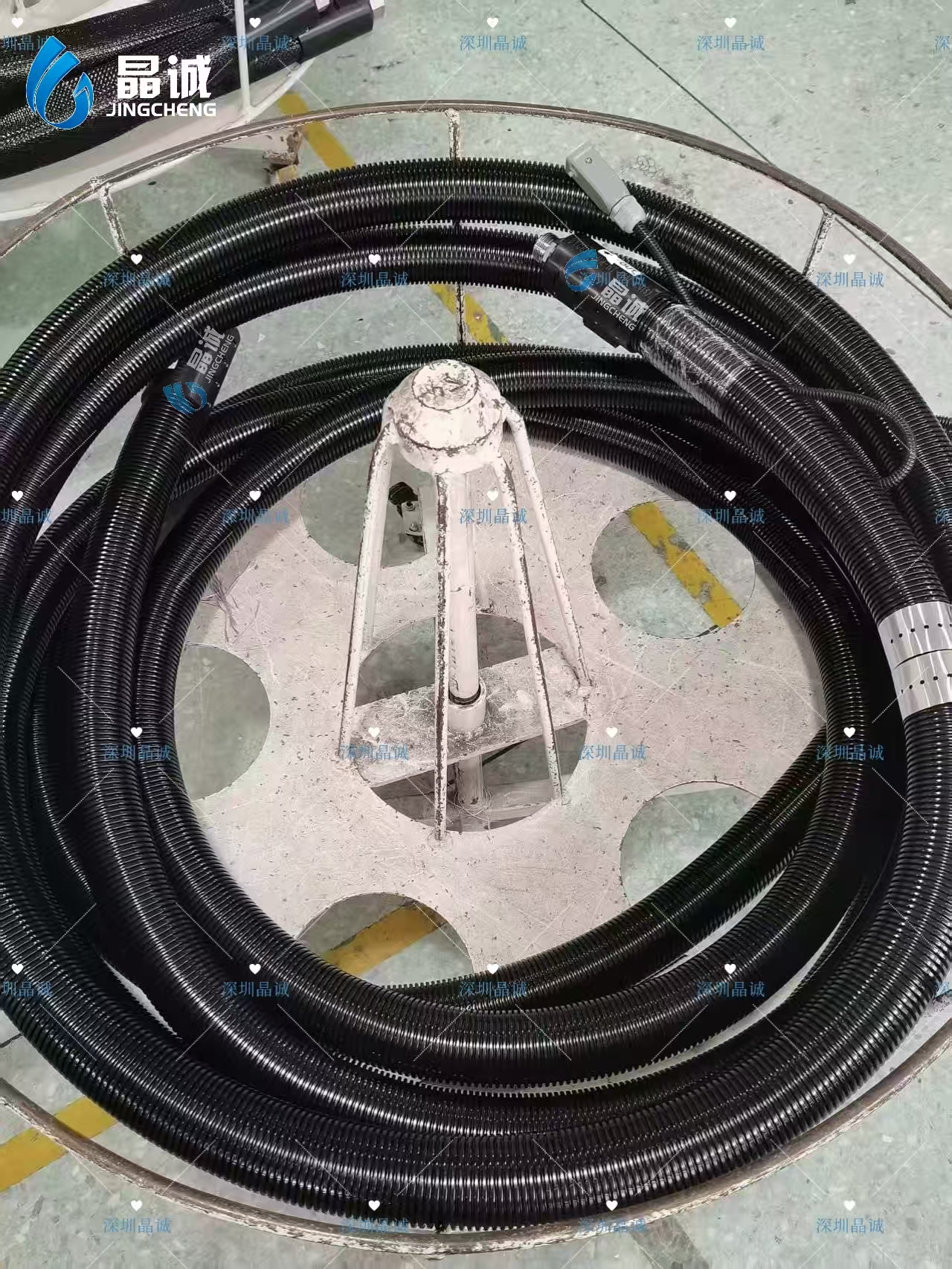

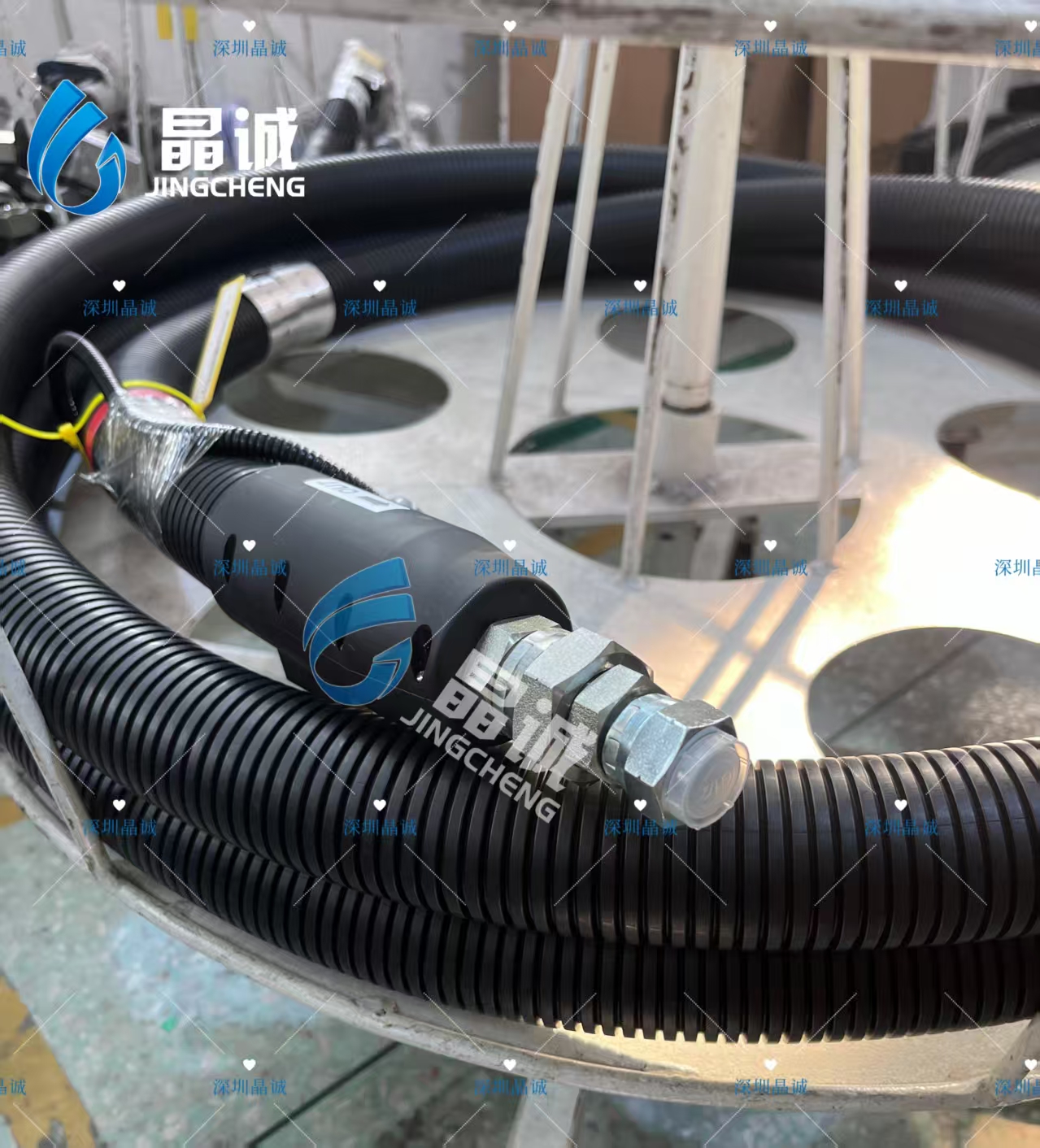

The automotive high-pressure heated hose shown is designed for adhesive and sealant systems used on domestic and imported production equipment, including configurations associated with SCA, ATN, GRACO and similar dispensing systems.

Why Automotive Plants Need a Reliable Second Source

Many automotive lines are originally supplied as complete systems.

Years later, replacement components may become:

• Expensive

• Difficult to source

• Subject to long delivery times

• Limited to one original supplier

This creates maintenance risk.

A validated second-source hose can help reduce dependence on a single spare-parts channel.

For automotive manufacturers and equipment integrators, this can provide:

• Shorter replacement lead times

• Better spare-parts availability

• More flexible customization

• Easier support for older equipment

• Reduced downtime risk

A Replacement Hose Must Match More Than Pressure

A common mistake is to compare only:

diameter + length + pressure

For a heated automotive adhesive hose, this is not enough.

The complete assembly may also contain:

• Heating element

• Temperature sensor

• Electrical plug

• Control wiring

• Special fittings

• Protective structure

A hose can be mechanically compatible but electrically incompatible.

That is why replacement matching should evaluate the complete original assembly.

High Pressure for Viscous Automotive Materials

Automotive adhesive and sealant systems frequently handle materials with relatively high viscosity.

Long hose distances, small application openings and demanding dispensing rates can require substantial delivery pressure.

The catalog includes configurations with working pressure reaching approximately:

475 bar / 6,888 psi

for selected hose sizes.

This makes the product relevant to demanding material delivery systems used in automotive manufacturing.

The exact allowable pressure must still be evaluated according to temperature, diameter, fittings and complete hose construction.

Heating Helps Maintain Consistent Material Behavior

The adhesive leaving a pump or conditioning unit may have the correct viscosity.

However, if it travels through a cooler flexible connection, the material can change before reaching the dispensing valve.

Temperature variation can affect:

• Viscosity

• Pressure response

• Dispensing speed

• Start-stop behavior

• Bead consistency

A heated hose helps maintain the required material condition through the transfer section.

The product supports temperatures up to approximately:

200°C

The actual operating temperature should follow the adhesive or sealant manufacturer's processing recommendations.

Particularly Useful for Maintenance and Retrofit Projects

Automotive production lines are often upgraded over time.

A dispensing system may receive:

• A new robot

• A replacement pump

• A different metering unit

• A new application head

• Modified equipment positioning

These changes may alter the required hose length or fitting orientation.

A customized replacement hose can be produced around the modified installation instead of forcing the new machine layout to match the old hose.

Typical Automotive Applications

Potential applications include:

• Structural adhesive dispensing

• Automotive seam sealing

• Body-in-white bonding

• Roof-panel bonding

• Windshield adhesive systems

• Underbody sealant

• Battery-pack assembly

• EV battery bonding

• Robotic adhesive cells

• High-viscosity material dispensing

Matching SCA, ATN, GRACO-Type Equipment

For replacement projects, brand information is useful but should not be used as the only selection factor.

Different systems from the same manufacturer may use different:

• Fittings

• Sensors

• Connectors

• Pin assignments

• Electrical parameters

The best approach is to provide the actual original hose information.

Useful references include:

• Equipment model

• Original hose label

• Connector photographs

• Fitting dimensions

• Electrical plug information

• Complete hose sample

Customization Options

Jingcheng can customize:

• Hose length

• Inner diameter

• Pressure structure

• Voltage

• Heating power

• Temperature sensor

• Machine-side fitting

• Gun-side fitting

• Electrical plug

• Cable configuration

• Protective outer layer

This allows the replacement assembly to match both the mechanical and electrical requirements of the machine.

Why Spare Hose Planning Matters

Automotive lines operate at high production value.

Waiting until a hose fails before searching for a replacement can create unnecessary downtime.

Maintenance teams can instead develop and validate a second-source hose in advance.

This makes it possible to keep replacement assemblies available as planned spare parts.

For factories operating multiple similar dispensing systems, standardized spare-hose management can further simplify maintenance.

What Information Should Be Provided?

Please provide:

• Adhesive or sealant type

• Working temperature

• Normal pressure

• Maximum pressure

• Hose length

• Inner diameter

• Minimum bending radius

• Voltage

• Heating power

• Sensor type

• Inlet fitting

• Outlet fitting

• Electrical connector

• Pin arrangement

• Machine brand and model

• Original hose photos or sample

Conclusion

In automotive adhesive systems, the hose is a relatively small part with a potentially large impact on line availability.

A properly matched replacement high-pressure heated hose can help maintenance teams reduce spare-part risk while maintaining compatibility with existing dispensing systems.

For automotive factories, OEM equipment manufacturers and system integrators, developing a reliable second source can turn the hose from an emergency spare part into a planned maintenance component.
