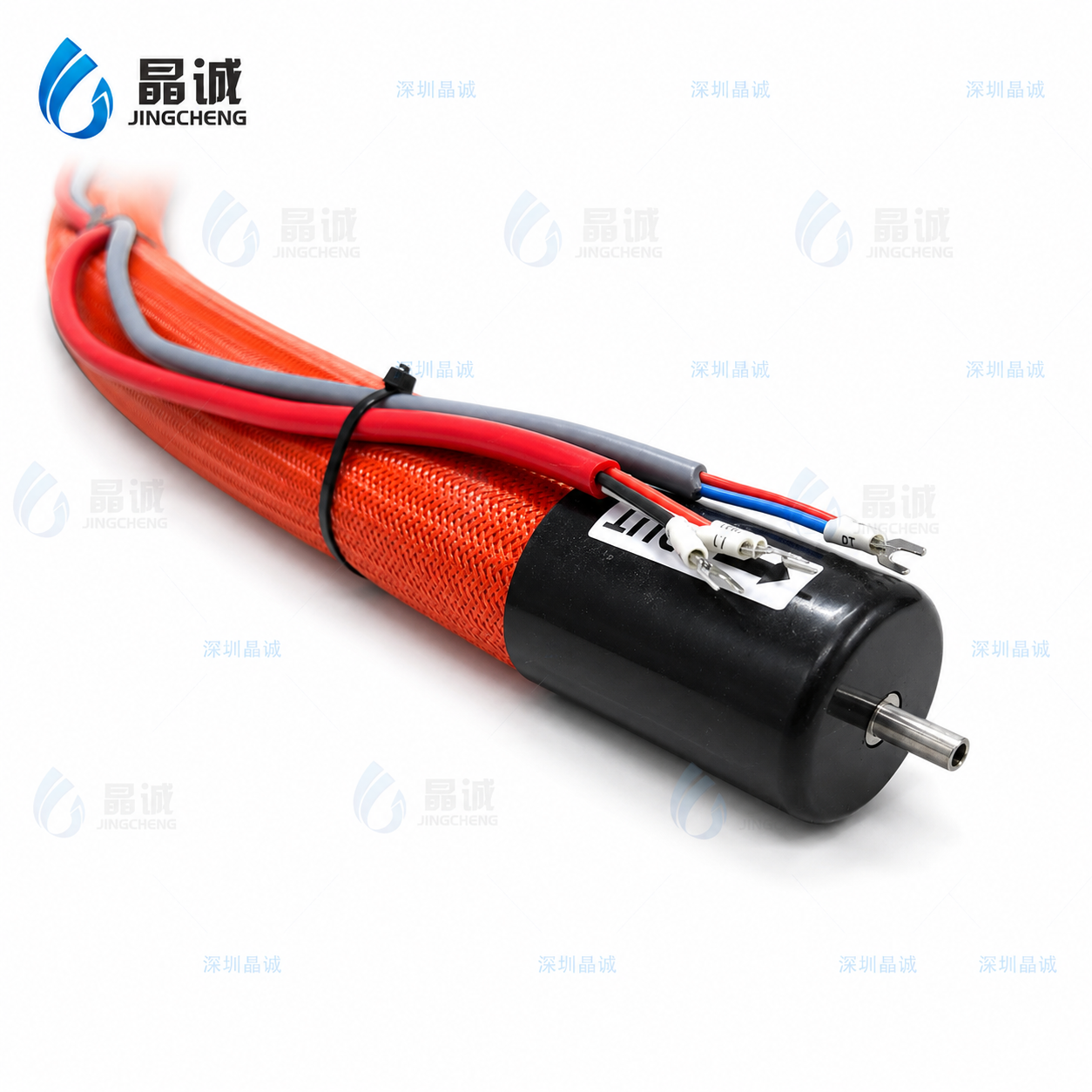

Heated Gas Sampling Hose for Stable Analyzer Sample Transport

When a gas-analysis system produces unstable readings, attention usually goes directly to the analyzer.

The sensor is checked.

Calibration is repeated.

The software is inspected.

But there is another part of the measurement chain that deserves attention:

the hose carrying the sample to the analyzer.

A gas analyzer can only measure the sample it actually receives.

If the sample changes while traveling from the sampling point to the analytical instrument, the analyzer may no longer be seeing exactly the same gas condition that existed at the source.

This is why a heated gas sampling hose is an important part of many industrial monitoring systems.

The Measurement Chain Starts Before the Analyzer

A typical gas-monitoring path can include:

Sampling point → heated sample hose → pretreatment system → analyzer

The hose connects the process environment to the analytical equipment.

Its role is not simply transportation.

It must help maintain stable sampling conditions while the gas travels through the system.

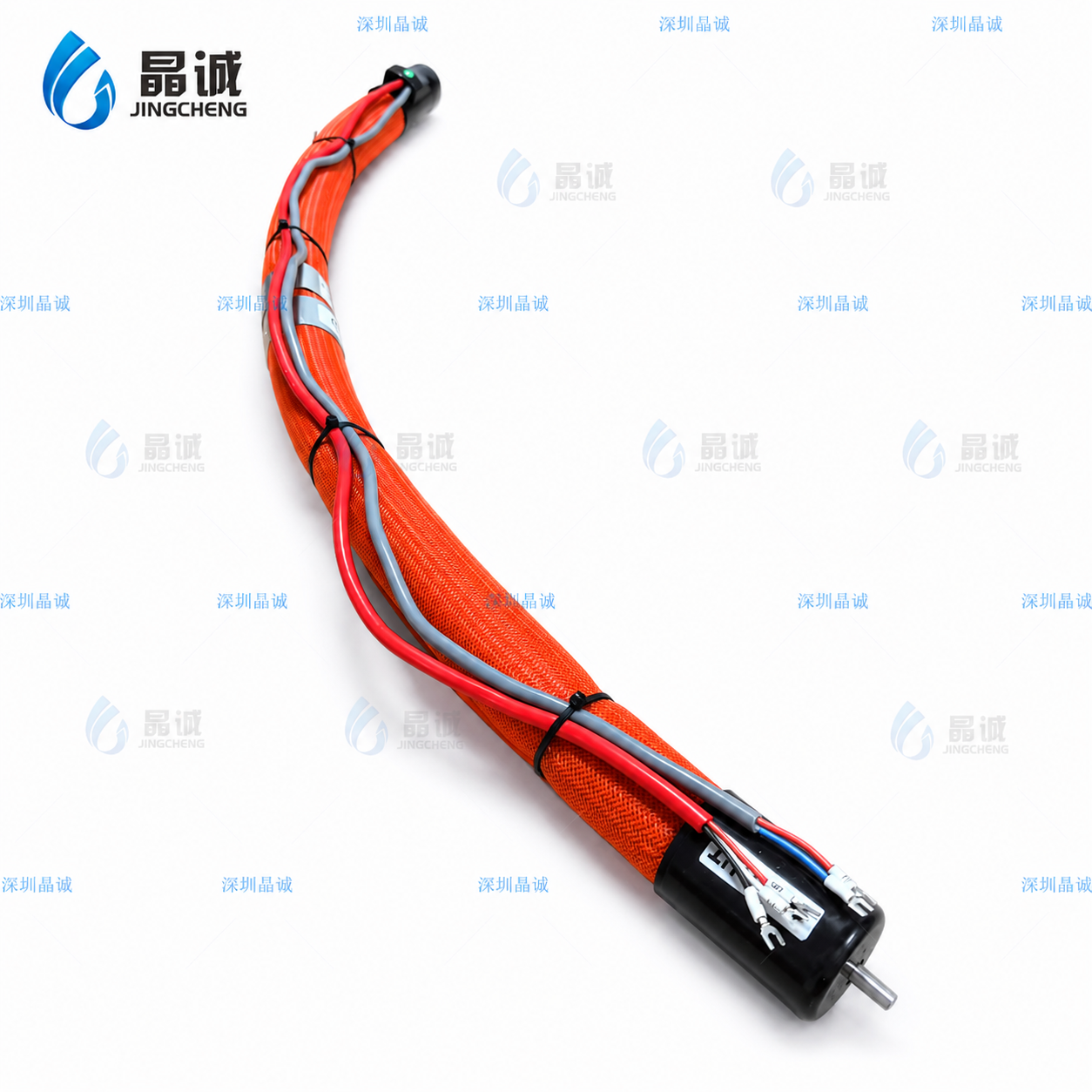

The product shown is designed for:

• Flue-gas pretreatment equipment

• Online monitoring systems

• Infrared gas analyzers

• Ultraviolet sampling analyzers

• Laboratory gas-testing equipment

Why Heating Is Used in Sampling Lines

Many industrial gas samples leave the process at elevated temperature.

During transportation, the hose is exposed to a cooler environment.

In many gas-analysis applications, excessive cooling can change the condition of the sample before analysis.

A heated sampling line provides controlled thermal support along the transfer route.

The purpose is to keep sample conditions more stable between the extraction point and the analyzer.

Uniform Heating Reduces Thermal Variation Along the Line

The product uses uniformly arranged heating elements around the hose.

This helps reduce differences between warmer and colder sections.

In a long sample line, temperature uniformity can be more important than simply measuring the temperature at one location.

A stable thermal profile supports more consistent sample transport throughout the hose.

Flexibility Matters in Analyzer Installations

Gas-analysis systems often contain:

• Sampling probes

• Pretreatment cabinets

• Filters

• Pumps

• Analytical instruments

• Control boxes

The hose may need to pass around these components while connecting equipment installed at different heights and orientations.

The catalog describes the gas sampling hose as resistant to repeated bending while maintaining stable insulation performance.

This makes it suitable for both fixed and equipment-integrated installations.

Why Mechanical Stability Matters

A sampling hose may be bent during:

• Initial installation

• Analyzer maintenance

• Probe replacement

• Cabinet servicing

• Equipment relocation

Repeated mechanical handling can affect poorly designed insulation structures.

The product is intended to maintain thermal-insulation stability while remaining flexible enough for gas-analysis equipment installation.

Standard Temperature Capability

The catalog lists a maximum standard heat-resistant temperature of:

230°C

The correct operating temperature should be determined according to the actual sampling application.

Important factors include:

• Gas composition

• Sampling temperature

• Hose length

• Ambient temperature

• Inner-tube material

• Analyzer requirements

• Pretreatment-system design

Typical Applications

• Continuous emission monitoring

• Industrial flue-gas analysis

• Infrared gas analyzers

• UV gas-analysis systems

• Laboratory gas instruments

• Gas pretreatment units

• Process-monitoring equipment

• Environmental monitoring systems

• Industrial sampling stations

Customization for Different Analyzer Systems

Gas-analysis equipment may require different:

• Hose lengths

• Internal tube materials

• Tube diameters

• Sensors

• Voltages

• Electrical connectors

• Probe-side fittings

• Analyzer-side fittings

The complete sampling line can therefore be customized according to the analyzer and pretreatment system.

What Information Should Be Provided?

For custom production, please provide:

• Sample-gas type

• Required hose temperature

• Hose length

• Inner-tube diameter

• Inner-tube material

• Working pressure

• Voltage

• Heating power

• Temperature sensor

• Probe-side connection

• Analyzer-side connection

• Electrical plug

• Equipment brand and model

Why the Sampling Hose Should Be Considered During System Design

It is easy to treat the hose as a component that can be selected at the end of the project.

But the hose influences:

• Installation route

• Sampling distance

• Thermal control

• Connection design

• Maintenance access

Including the heated sample line earlier in the system design can help simplify installation and reduce later modification.

Conclusion

Gas measurement does not begin inside the analyzer.

It begins at the sampling point and continues through every component that transports and conditions the sample.

A heated gas sampling hose helps provide a stable connection between the process and the analytical instrument while combining heating, insulation and flexible installation.

For online monitoring, infrared, ultraviolet and laboratory gas-analysis equipment, the sampling hose should therefore be treated as part of the measurement system—not merely an accessory.
