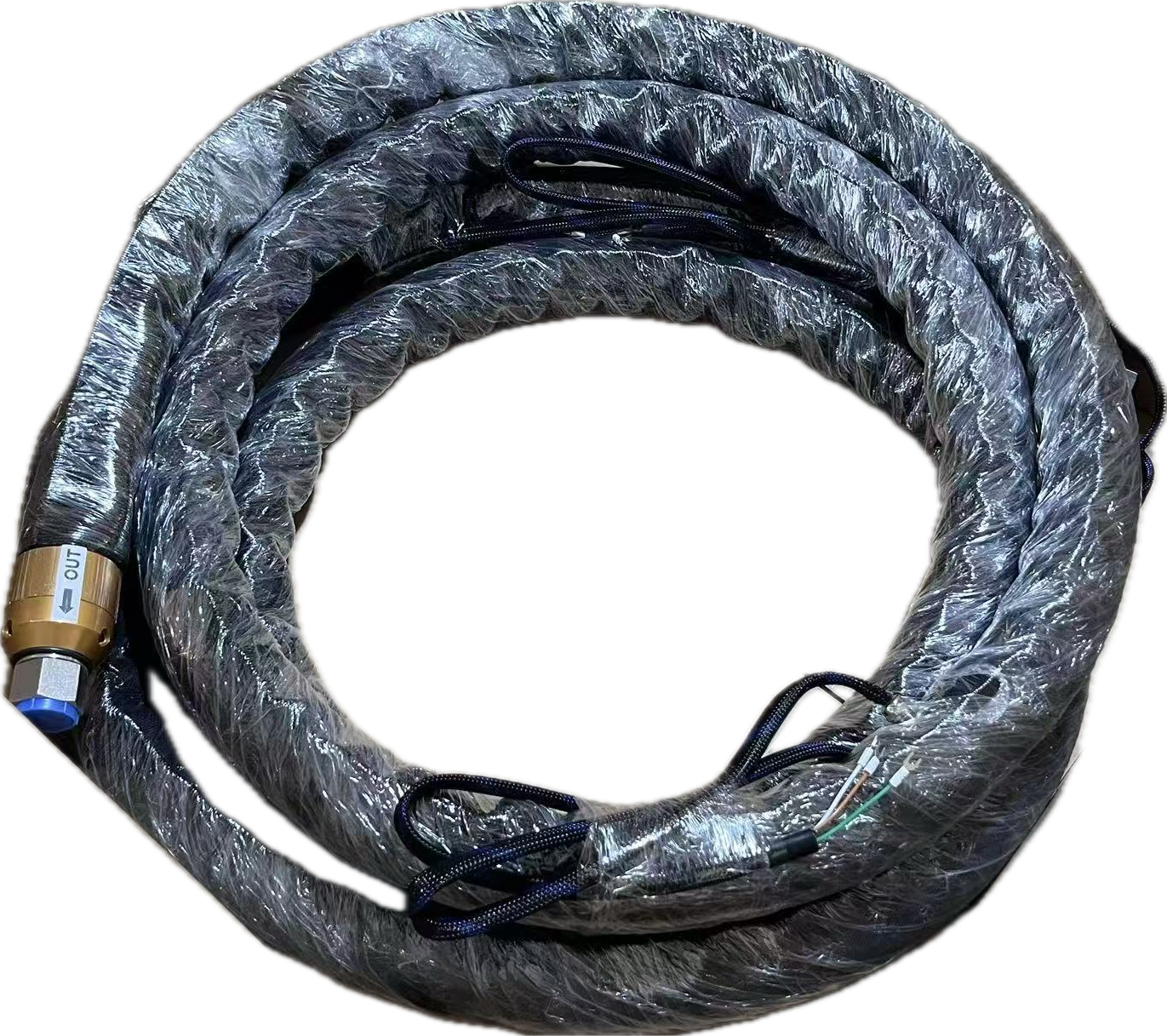

Heavy-Duty Heated Coating Hose for Non-Curing Waterproofing Equipment

Introduction

A heavy-duty heated coating hose transfers temperature-sensitive waterproofing material from the heating and pumping system to the spray gun.

Non-curing waterproof coatings and similar viscous construction materials require controlled temperature to maintain pumpability and stable spraying performance.

When material loses heat inside the hose, viscosity may increase and cause reduced flow, higher pump pressure or irregular spray output.

Shenzhen Jingcheng High-tech manufactures customized heated hoses for waterproof construction equipment and non-curing coating spray systems. The product is intended for operation in demanding outdoor construction environments.

Why Waterproofing Spray Systems Need Heated Hoses

Waterproofing equipment may operate on roofs, bridges, tunnels, basements and other construction sites exposed to changing weather, dust and repeated equipment movement.

A conventional hose may not provide adequate temperature maintenance.

Possible problems include:

• Coating thickening

• Reduced spray flow

• Unstable spray pattern

• Higher pumping pressure

• Material buildup

• Hose blockage

• Heat loss in cold weather

• External abrasion

• Frequent replacement

• Construction downtime

An electrically heated and insulated hose helps maintain more stable material conditions between the machine and spray gun.

Designed for Harsh Construction Environments

According to the product catalog, this hose series has been supplied to the waterproofing equipment sector since 2013 and is designed with stability and durability for demanding weather and construction conditions.

The final outer protection can be selected according to:

• Outdoor exposure

• Abrasion

• Dragging

• Dust

• Moisture

• Chemical splash

• Ambient temperature

• Frequency of movement

Specific waterproof or ingress-protection requirements must be confirmed before production.

Key Features

Temperature Resistance up to 230°C

The standard hose supports working temperatures up to 230°C.

Uniform Heating Distribution

Uniformly arranged heating elements help minimize internal temperature differences.

High-Efficiency Thermal Insulation

The insulation system reduces heat loss during outdoor operation.

Equipment-Specific Construction

The hose can be matched to domestic or imported waterproofing spray equipment.

Customized Outer Protection

Protective coverings can be selected according to abrasion, weather and installation conditions.

Customized Fittings and Electrical Connections

Available customized items include:

• Machine-side fitting

• Spray-gun fitting

• Hose length

• Inner diameter

• Voltage

• Heating power

• Sensor

• Electrical plug

• Cable length

• Outer protective layer

Typical Applications

• Non-curing waterproof coating equipment

• Roof waterproofing machines

• Bridge waterproofing systems

• Tunnel waterproof construction

• Basement waterproofing equipment

• Heated bituminous coating spraying

• Viscous construction-material transfer

• Spray-applied waterproof membranes

• Outdoor coating equipment

• Mobile waterproofing machinery

• Heated construction material systems

• Replacement waterproofing hoses

Technical Specification Options

Reference Product Data

Final operating pressure must be confirmed according to material temperature, fittings, hose length and the complete assembly.

Benefits for Equipment Manufacturers and Contractors

A correctly designed heated waterproofing hose can help:

• Maintain more stable coating viscosity

• Improve continuous spraying

• Reduce cold spots

• Lower material blockage risk

• Reduce pump-pressure fluctuation

• Improve equipment compatibility

• Support outdoor construction

• Reduce premature hose wear

• Shorten replacement time

• Improve after-sales compatibility for machine builders

Information Required for Selection

Please provide:

• Waterproofing material name

• Material operating temperature

• Working pressure

• Maximum pump pressure

• Material viscosity

• Required flow rate

• Hose length

• Inner diameter

• Voltage

• Heating power

• Sensor type

• Machine-side fitting

• Spray-gun fitting

• Electrical connector

• Equipment brand and model

• Outdoor protection requirements

• Original hose photos or drawing

Why Choose Shenzhen Jingcheng?

Industry Application Experience

We manufacture heated hoses for waterproofing and other viscous-material equipment.

Factory-Direct Supply

Technical requirements can be communicated directly with manufacturing and engineering personnel.

Highly Customized Production

The hose can be developed from drawings, samples, equipment information or actual operating conditions.
