How to Choose Between Smooth-Bore, Convoluted, and Stainless Steel Braided PTFE Hoses for Industrial Fluid Transfer

Polytetrafluoroethylene (PTFE) is the material of choice when an industrial fluid line must handle strong acids, alkalis, oxidizers, organic solvents, steam, or high-purity media across wide temperature swings. However, choosing "a PTFE hose" is only the first step. An unreinforced smooth-bore PTFE tube behaves very differently on a compact process skid than a helical convoluted bellows tube or a 304 stainless steel wire-braided assembly. Selecting the wrong wall geometry or reinforcement can lead to kinking during installation, product hold-up between batches, vacuum collapse, or premature pressure failure.

This engineering guide compares the six foundational PTFE cold-hose constructions in Jingcheng's PTFE hose catalog—spanning bare inner tubes, spring-reinforced hoses, and 304 stainless steel braided assemblies—so buyers and equipment engineers can match the right series to their operating pressure, bend radius, temperature window, and cleanability requirements.

Quick selection summary for buyers:

1. Low-pressure straight runs & high-purity chemical dosing (up to 1.73 MPa): Choose JCC-00000 Smooth-Bore PTFE Tubing for a flat, non-stick bore and visual flow checks.

2. Tight routing on low-pressure skids (0.2–0.4 MPa): Choose JCC-10000 Inner Spiral Convoluted PTFE Hose for bend radii down to 20 mm.

3. Smooth bore + tight bends + steam, hot oil or corrosive chemicals (1.2–2.64 MPa): Choose JCC-20000 Smooth-ID Corrugated-OD PTFE Hose with 304 Spiral Spring.

4. High-pressure hydraulic, automotive & chemical lines (10–42 MPa): Choose JCC-01100 Single-Layer 304 Braided Smooth-Bore PTFE Hose (or multi-layer braided series up to 44 MPa).

5. Medium-pressure lines needing ultra-tight bends (3.1–13.8 MPa, bend radius down to 10 mm): Choose JCC-11100 Convoluted Braided PTFE Hose.

6. Vacuum-resistant, easy-to-clean hygienic & chemical delivery (2.5–9.0 MPa): Choose JCC-21100 Smooth-Bore Convoluted Braided PTFE Hose.

1. The Three Core Design Choices in a PTFE Hose

Every PTFE transfer hose is defined by three structural variables: the inner bore geometry, the outer wall profile, and the external reinforcement layer.

Inner Bore: Smooth vs. Convoluted

• Smooth inner bore (JCC-00000, JCC-20000, JCC-01100, JCC-21100): Provides an unobstructed, seamless PTFE contact surface. It minimizes pressure drop, drains quickly, and avoids trapping viscous fluids, food ingredients, cosmetics, or pharmaceutical media during flushing and batch changeovers.

• Inner spiral convoluted bore (JCC-10000, JCC-11100): Features continuous helical corrugations on both the inside and outside of the PTFE wall. The bellows profile acts like a spring, allowing the tube to flex around tight corners without kinking—at the trade-off of slightly higher flow turbulence and internal crevices.

Outer Wall Profile: Smooth vs. Corrugated

• Smooth outer wall (JCC-00000, JCC-01100): Maximizes hoop strength for a given wall thickness, supporting higher working pressures in straight or gently curved routing paths.

• Corrugated outer wall with a smooth inner bore (JCC-20000, JCC-21100): Combines the cleanability of a flat internal bore with the small bend radius of an externally ribbed wall.

External Reinforcement: Bare vs. 304 Spiral Spring vs. 304 Wire Braid

• Unreinforced (bare) PTFE (JCC-00000, JCC-10000): Translucent white wall that allows operators to inspect fluid flow and air bubbles visually. Best suited for low-pressure chemical dosing and laboratory or skid jumpers.

• 304 stainless steel spiral spring (JCC-20000): A helical 304 stainless steel wire seated in the outer corrugations reinforces the wall against kinking and crushing, raising working pressure up to 2.64 MPa (396 psi) for steam, hot oil, and corrosive chemical transfer.

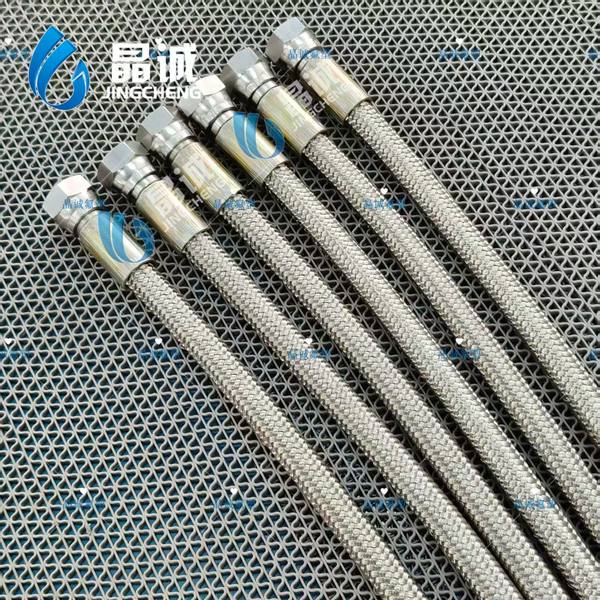

• 304 stainless steel wire braid (JCC-01100, JCC-11100, JCC-21100): A woven 304 stainless steel outer braid carries axial and radial pressure loads while protecting the PTFE core from external abrasion, raising working pressures into the medium- and high-pressure range.

2. Catalog Overview: Six Core PTFE Hose Series Compared

The table below summarizes the six primary PTFE cold-hose constructions from Jingcheng's PTFE hose catalog:

Data source: Jingcheng PTFE Hose Catalog. All specifications can be customized to customer parameters.

3. Direct Size-by-Size Comparison (1/4", 1/2", 3/4", and 1" Reference Sizes)

Because pressure and bend radius change significantly with diameter, engineers often compare candidate hose series at the exact nominal bore required by their pump or manifold. The table below extracts the catalog ratings for four common industrial sizes (1/4", 1/2", 3/4", and 1") across all six series:

Looking at the 1" nominal size illustrates how structural design changes performance:

• Switching from bare smooth-bore tubing (JCC-000025-PTFE) to smooth-ID corrugated-OD hose with a 304 spiral spring (JCC-20025-PTFE) cuts the minimum bend radius from 600 mm down to 75 mm while raising working pressure from 0.70 MPa to 1.2 MPa.

• Adding a 304 stainless steel braid to the smooth-ID corrugated-OD core (JCC-21125-PTFE) maintains that tight 75 mm bend radius while boosting working pressure to 4.0 MPa (burst 16.0 MPa) and adding vacuum resistance.

• Where high pressure is the primary driver and a 260 mm bend radius fits the layout, the single-braid smooth-bore hose (JCC-01125-PTFE) delivers 10 MPa working pressure (31 MPa burst).

4. Heavy-Duty and Specialized PTFE Hose Options

When an application exceeds the scope of single-layer 304 wire braid or involves electrostatic or external jacket requirements, Jingcheng's catalog includes six additional specialized constructions:

• Wire-Bundle Braided PTFE Hose (JCC-02100): Smooth PTFE inner tube + middle 304 braid + outer 304 wire-bundle braid. Rated for −70 °C to +260 °C in sizes 3/8" to 2", with working pressures from 41 MPa down to 17 MPa (burst 122.2 to 49.5 MPa) for high-pressure chemical spraying, high-pressure gluing, steam, oil, and brake lines.

• Double-Braid PTFE Hose (JCC-01200): Smooth PTFE inner tube + two layers of 304 stainless steel braid (−70 °C to +260 °C, sizes 1/4" to 1-1/4", working pressure 40 MPa down to 14 MPa) for hydraulic transmission of gas-, oil-, and water-based fluids and chemicals.

• Spiral-Wound Braided PTFE Hose (JCC-03100): PTFE inner tube + 1–2 layers of copper-plated steel wire spiral + 304 stainless steel outer braid (−65 °C to +220 °C, sizes 1/2" to 1", working pressure 44 MPa down to 27 MPa, burst 176.4 to 108.1 MPa) for heavy hydraulic, fuel, coolant, rail, marine, and aerospace lines.

• Aramid-Braided Lightweight PTFE Hose (JCC-04100): PTFE tube reinforced with aramid fiber braid (−65 °C to +220 °C, sizes 3/8" to 1", working pressure 40 MPa down to 24.5 MPa), combining high pressure capacity with lightweight handling and an anti-static effect.

• PU-Covered Braided PTFE Hose (JCC-61100): Smooth PTFE tube + 304 stainless steel braid + smooth polyurethane (PU) outer jacket in black, red, or blue (sizes 5/32" to 1", working pressure 27 MPa down to 10 MPa), protecting the stainless braid against external abrasion and paint/adhesive buildup.

• Anti-Static PTFE Series: Available in anti-static smooth-bore, anti-static convoluted, anti-static smooth-bore convoluted, and all-black conductive convoluted profiles (−60 °C to +260 °C) for transferring flammable liquids, chemical solvents, and electrostatic coating media.

5. When to Upgrade from a Cold PTFE Hose to an Electrically Heated PTFE Hose

Unheated PTFE hoses handle fluid temperatures from −70 °C up to +260 °C, provided the fluid stays low enough in viscosity to flow on its own. If the medium solidifies, freezes, or thickens as it loses heat along the transfer line—such as hot-melt adhesives, PUR adhesives, road crack sealants, waterproofing sprays, molten paraffin wax, polyurethane resins, or heated flue-gas samples—an unheated PTFE hose will clog during startups or pauses.

In those cases, Jingcheng builds electrically heated hoses around a PTFE inner tube (denoted as code T for PTFE hose or TB for stainless-steel-braided PTFE hose in the JCH model code), adding uniformly braided heating elements, an embedded temperature sensor (PT100, PT1000, Ni120, Type J or Type K thermocouple), and high-efficiency thermal insulation for controlled heat tracing up to 230 °C (and up to 250 °C on extruder heated hoses).

6. Installation and Field Routing Rules for PTFE Hoses

Even the highest-grade PTFE hose assembly can fail early if it is kinked or twisted during installation. Follow these engineering practices on the shop floor:

1. Never bend tighter than the catalog minimum bend radius: Every series has a defined minimum bend radius for each nominal diameter. Routing a hose tighter than its rated radius concentrates wall stress, restricts flow, and can kink smooth-bore tubes or deform convolutions near the fitting collar.

2. Avoid axial twisting during tightening: Always align the mating fittings before torquing swivel nuts or flanges. Twisting a braided or convoluted hose along its axis weakens the reinforcement weave and introduces torsional stress under pressure pulses.

3. Leave a straight length behind each end fitting: Allow a short straight section immediately behind the crimp collar or cuff before starting a bend so flexing does not concentrate at the metal-to-PTFE transition.

4. Support long horizontal spans and protect against abrasion: Use clamps or trays to prevent sagging on long runs, and choose a braided (JCC-01100 / JCC-11100 / JCC-21100) or PU-jacketed (JCC-61100) hose where lines rub against machine frames.

7. Frequently Asked Questions

What is the difference between JCC-11100 and JCC-21100 braided convoluted PTFE hoses?

Both hoses have a corrugated outer profile and a 304 stainless steel outer braid, but JCC-11100 is corrugated on both the inside and outside (giving bend radii down to 10 mm and working pressures of 3.1–13.8 MPa at −70 °C to +200 °C), whereas JCC-21100 has a smooth inner bore and corrugated outer wall (−70 °C to +260 °C, working pressures of 2.5–9.0 MPa). Choose JCC-21100 when vacuum resistance, self-draining flow, and easy cleaning between food, cosmetic, pharmaceutical, or chemical batches are required.

When should I choose JCC-20000 with a 304 spiral spring instead of a wire-braided hose?

JCC-20000 combines a smooth PTFE inner wall, a corrugated outer wall, and an external 304 stainless steel spiral reinforcing spring for working pressures of 1.2 to 2.64 MPa and bend radii of 19 to 75 mm. It is ideal when you want visual translucency across the PTFE wall, a smooth non-stick bore, and kink-resistant routing for steam, hot oil, hot air, or corrosive chemicals without the weight of a full wire braid.

Can Jingcheng customize PTFE hose dimensions and end fittings?

Yes. Every PTFE series in the Jingcheng catalog can be manufactured to customer parameters, including custom inner and outer diameters, wall thicknesses, coiled or cut lengths, smooth end cuffs, and crimped end fittings (threaded, flanged, sanitary clamp, or camlock).

Request a PTFE Hose Engineering Quotation

Need help selecting between smooth-bore, convoluted, spring-reinforced, and 304 stainless steel braided PTFE hoses for your equipment or plant? Send Jingcheng your fluid media, working pressure, temperature range, nominal inner diameter, minimum bend radius, hose length, and end fitting requirements. Our engineering team will confirm the best specification and prepare a quotation tailored to your application.
