Integrating Custom Heated Transfer Hoses into Medical Equipment

Introduction

Medical and precision equipment often requires a flexible material path that matches the machine’s exact thermal, mechanical and connection requirements.

A standard industrial hose may have the correct diameter but still be unsuitable because of its inner-tube material, fitting design, electrical connector or temperature-control configuration.

A custom heated material path for medical equipment integrates the material-contact tube, heating layer, insulation, sensor and equipment connections into one assembly.

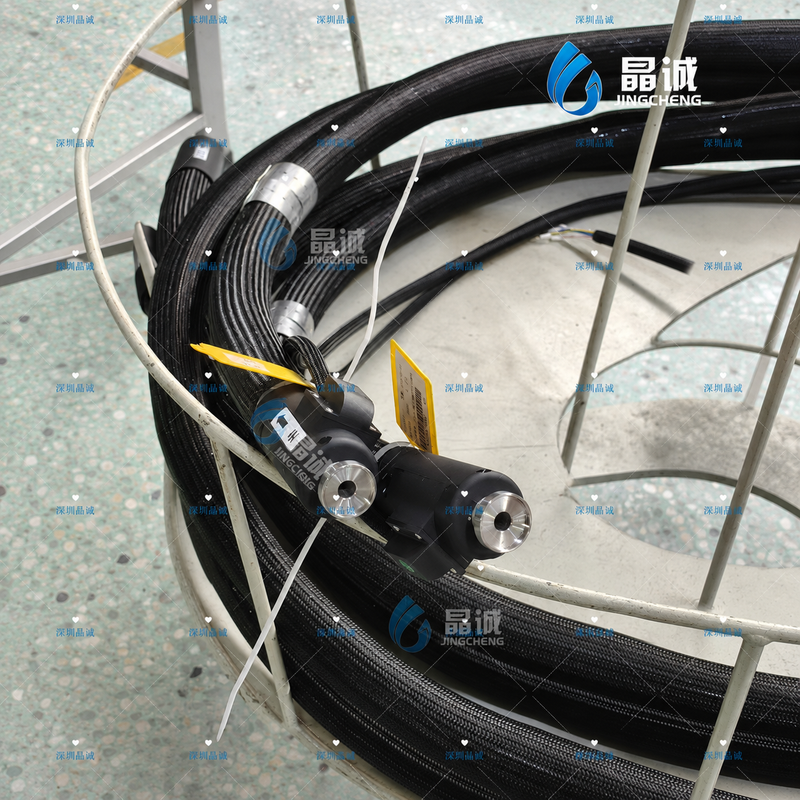

The product shown uses a customized medical-purpose material-contact inner tube, and each part of the pipeline can be configured according to the customer’s technical requirements.

Designing Around the Complete Equipment

The hose should be designed according to the machine and process rather than selected from only one general product specification.

Important considerations include:

• Transferred material

• Required material-contact tube

• Operating temperature

• Pressure

• Flow rate

• Cleanliness requirements

• Equipment layout

• Hose bending

• Sensor type

• Electrical interface

• Fitting geometry

• Cleaning procedure

The final design may vary considerably between different medical or laboratory devices.

Customized Material-Contact Inner Tube

The inner tube is the part directly contacting the transferred medium.

Its selection should consider:

• Chemical compatibility

• Temperature resistance

• Surface characteristics

• Permeability

• Required flexibility

• Cleaning method

• Pressure

• Process sensitivity

The source image states that a customized medical-purpose over-material inner tube is used. It does not identify a specific polymer grade or regulatory classification, so these requirements must be confirmed for each project.

Temperature Maintenance as a Process Function

Some materials require temperature control to maintain:

• Stable viscosity

• Consistent flow

• Accurate dispensing

• Predictable equipment response

• Reduced material accumulation

• Continuous operation

An ordinary hose may allow the material to cool between machine sections.

The heated assembly uses uniformly distributed heating elements and insulation to reduce temperature variation along the material path.

Integration with Machine Controls

The hose can be configured with a sensor compatible with the equipment controller.

Possible options may include:

• PT100

• PT1000

• J-type thermocouple

• K-type thermocouple

• Other customized sensors

The sensor type, wiring method and electrical plug must match the controller.

An incorrect sensor or pin arrangement may cause:

• Incorrect temperature readings

• Control alarms

• Overheating

• Insufficient heating

• Failure of the machine to recognize the hose

Standard Temperature Capability

The product supports temperatures up to:

230°C

Final allowable temperature depends on the material-contact inner tube, fittings, sensor, insulation and complete assembly design.

Potential Application Areas

Depending on the final validated configuration, the hose may be evaluated for:

• Medical equipment material transfer

• Diagnostic devices

• Laboratory instruments

• Precision liquid-delivery systems

• Pharmaceutical-processing machinery

• Temperature-controlled dispensing

• Heated process-fluid transfer

• Customized healthcare equipment

• Laboratory process systems

• Replacement material-path assemblies

Suitability for a specific regulated application must be confirmed according to the customer’s technical and compliance requirements.

Customization Matrix

Reference Product Data

*The source image contains inconsistent burst-pressure conversion for this size.

The table contains general catalog reference data. Final performance depends on the selected inner tube, operating temperature, fittings and complete assembly.

Project Confirmation Checklist

For technical evaluation, please provide:

• Equipment application

• Transferred medium

• Required inner-tube material

• Working temperature

• Normal and maximum pressure

• Required flow rate

• Hose length

• Inner diameter

• Minimum bending radius

• Voltage

• Heating power

• Sensor type

• Inlet fitting

• Outlet fitting

• Electrical connector

• Pin arrangement

• Cleaning requirements

• Packaging requirements

• Original sample or technical drawing
