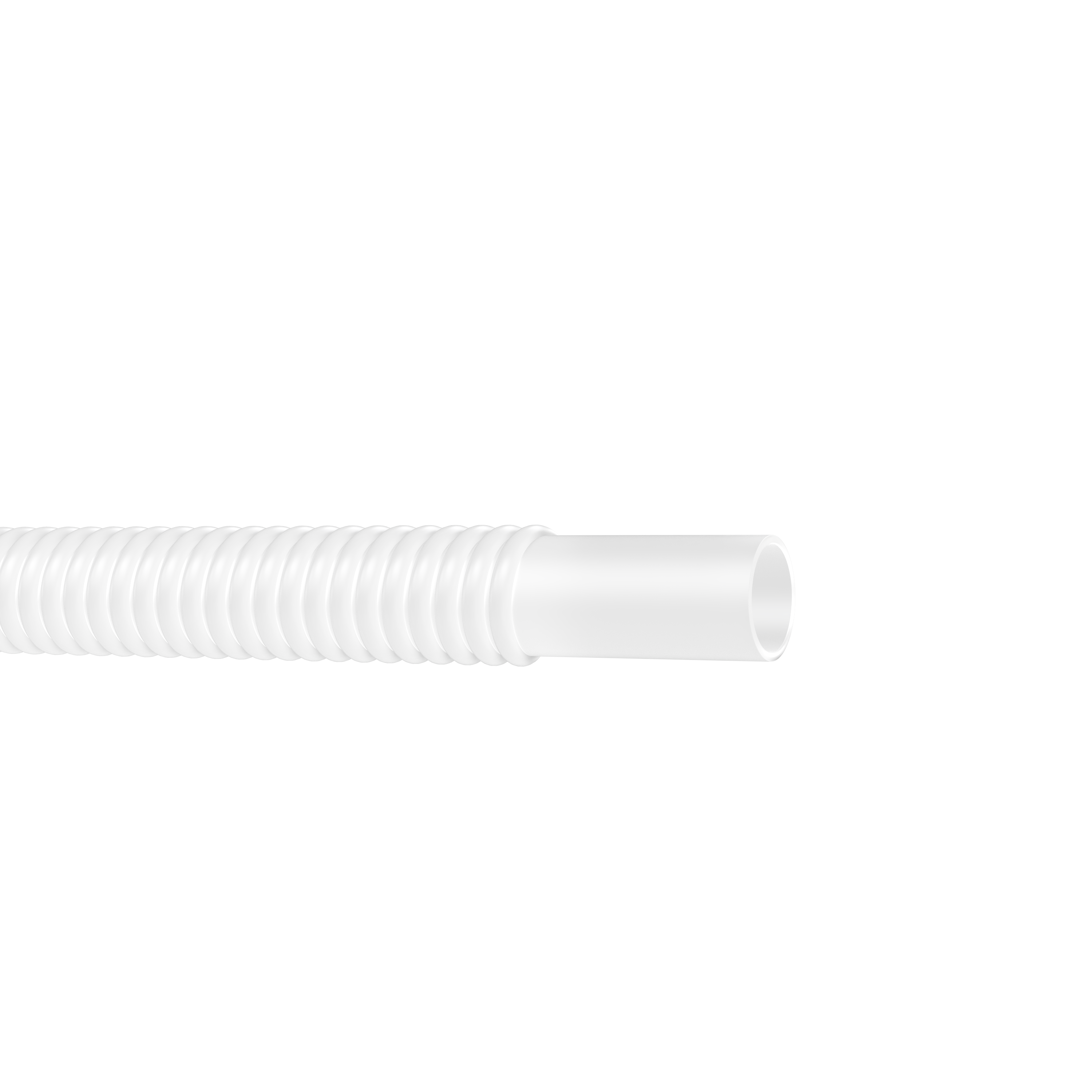

JINGCHENG PTFE Helical Corrugated Hoses : Fully Tailored Parameter Customization Supporting Comprehensive Bore Sizes and -70°C to +260°C Operating Temperatures

In modern industrial fluid handling, piping systems face harsh challenges daily. Extreme thermal fluctuations, highly aggressive chemicals, and intricate layout constraints can cause standard rigid piping or lower-grade rubber hoses to fail prematurely, leading to expensive downtime or safety hazards.

To resolve these critical industrial pain points, JINGCHENG, a premier manufacturer specializing in professional PTFE hose production , introduces the JCC-10000-PTFE Series Internal Helical Corrugated Hose. This high-quality, engineered product combines exceptional material chemistry with advanced structural engineering to optimize fluid transfer in the most demanding environments.

1. What is a PTFE Helical Corrugated Hose?

The JCC-10000-PTFE Series is an advanced Teflon hose engineered with a specialized profile where both the inner and outer walls are corrugated. This specific design offers distinct mechanical and fluid dynamic advantages over traditional smooth-bore or standard annular corrugated hoses:

• Superior PTFE Material Characteristics: Polytetrafluoroethylene (PTFE), widely known as Teflon, possesses an ultra-low friction coefficient, outstanding non-stick properties, and near-universal chemical inertness. It resists degradation from virtually all strong acids, alkalis, and aggressive organic solvents.

• The "Helical" Advantage: Unlike standard parallel rings (annular corrugations), a helical (spiral) corrugated design allows fluids to flow smoothly along the spiral path. This rotational flow dynamic significantly minimizes material entrapment in dead corners, offering excellent self-cleaning and easy-drainage properties—a vital requirement for high-purity industrial loops.

2. Key Performance Advantages of the JCC-10000-PTFE Series

Extreme Bending & Kink Resistance

Thanks to its uniform internal and external corrugated architecture , this hose exhibits extremely strong bending performance. It can achieve exceptionally tight bend radiuses without collapsing, flattening, or kinking, making it perfect for tight routing spaces, robotic arms, and continuously moving machinery. For instance, the smallest standard size features a minimum bend radius of just 20 mm.

Ultra-Wide Operating Temperature Range

The JCC-10000-PTFE series maintains its mechanical integrity and elastomeric flexibility across a vast thermal spectrum, rated for environments ranging from -70°C to 260°C (with some technical references noting a 70°C to 260°C scope ). It stands up effortlessly to deep-freeze media transfer as well as high-temperature steam or hot oil cycles without hardening or becoming brittle.

International Compliance and Certifications

Safety and purity are non-negotiable in critical sanitary processes. JINGCHENG ensures total compliance and peace of mind by securing elite global standard certifications for this series, confirming the media remains free from secondary contamination:

• ISO9001:2015: Validates strict adherence to international quality management systems.

• US FDA 21 CFR 177.1550: Confirms the material is completely non-toxic and strictly safe for direct contact with food, beverages, and pharmaceuticals.

• SGS: Verified by world-leading inspection and testing authorities.

3. Targeted Applications: Solving Core Industry Challenges

The Pharmaceutical Industry

In active pharmaceutical ingredient (API) manufacturing or sterile filling lines, cross-contamination can ruin an entire batch. The JCC-10000-PTFE hose is perfectly suited for the pharmaceutical industry because its non-stick internal surface stands up to aggressive Clean-In-Place (CIP) and Steam-In-Place (SIP) sterilization routines.

The Food & Beverage Industry

Fully compliant with FDA food-grade safety standards , this hose is widely utilized across the food industry to transfer edible oils, dairy products, syrups, and liquid flavorings. The inert PTFE core ensures the absolute purity of the media, leaving flavors, colors, and aromas completely unaltered.

The Chemical Industry

Standard industrial hoses dissolve or swell when exposed to high-purity chemical lines, strong oxidizers, or volatile solvents. This series provides an unyielding barrier against chemical attacks, making it highly suitable for the chemical industry to lower long-term maintenance overhead and prevent hazardous environmental leaks.

4. Technical Specifications & Customization Capabilities

To assist project engineers with precise component selection, JINGCHENG supplies a comprehensive array of standard sizes stretching from 1/4" up to 2". Furthermore, every single line item is fully customizable to meet your specific parameter requirements.

5. Why Choose JINGCHENG?

Established in August 2005, JINGCHENG is a production- and processing-oriented enterprise focusing on high-tech fluid transfer lines. Our main manufacturing facility is strategically situated in the Torch Development Zone of Zhongshan City, Guangdong Province.

Backed by nearly twenty years of rigorous exploration and practical engineering , JINGCHENG has built an elite, specialized R&D team. Operating under our foundational business philosophy of "Excellence in Heart, Sincerity in Distance" , we supply standard PTFE hoses, industrial high-pressure conduits, PA tubings, and tailored electrically heated insulated hose bundles. We pride ourselves on engineering full-scale thermal fluid insulation transport schemes for complex operations. Today, JINGCHENG stands recognized as a prominent domestic market leader in the heated and Teflon hose sectors , earning acclaim from top-tier global corporations.

Optimize Your Fluid Systems Today

Whether you need a standard batch of flexible conduits or custom-tailored solutions for specialized, high-temperature fluid handling, JINGCHENG delivers absolute performance. Reach out to our engineers or explore our catalogs through the channels below:
