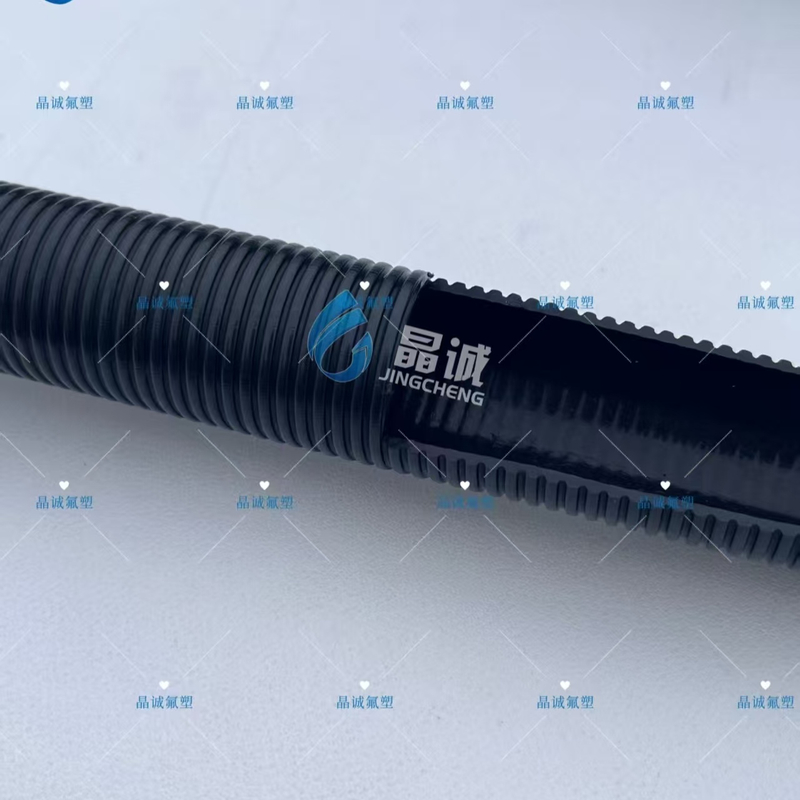

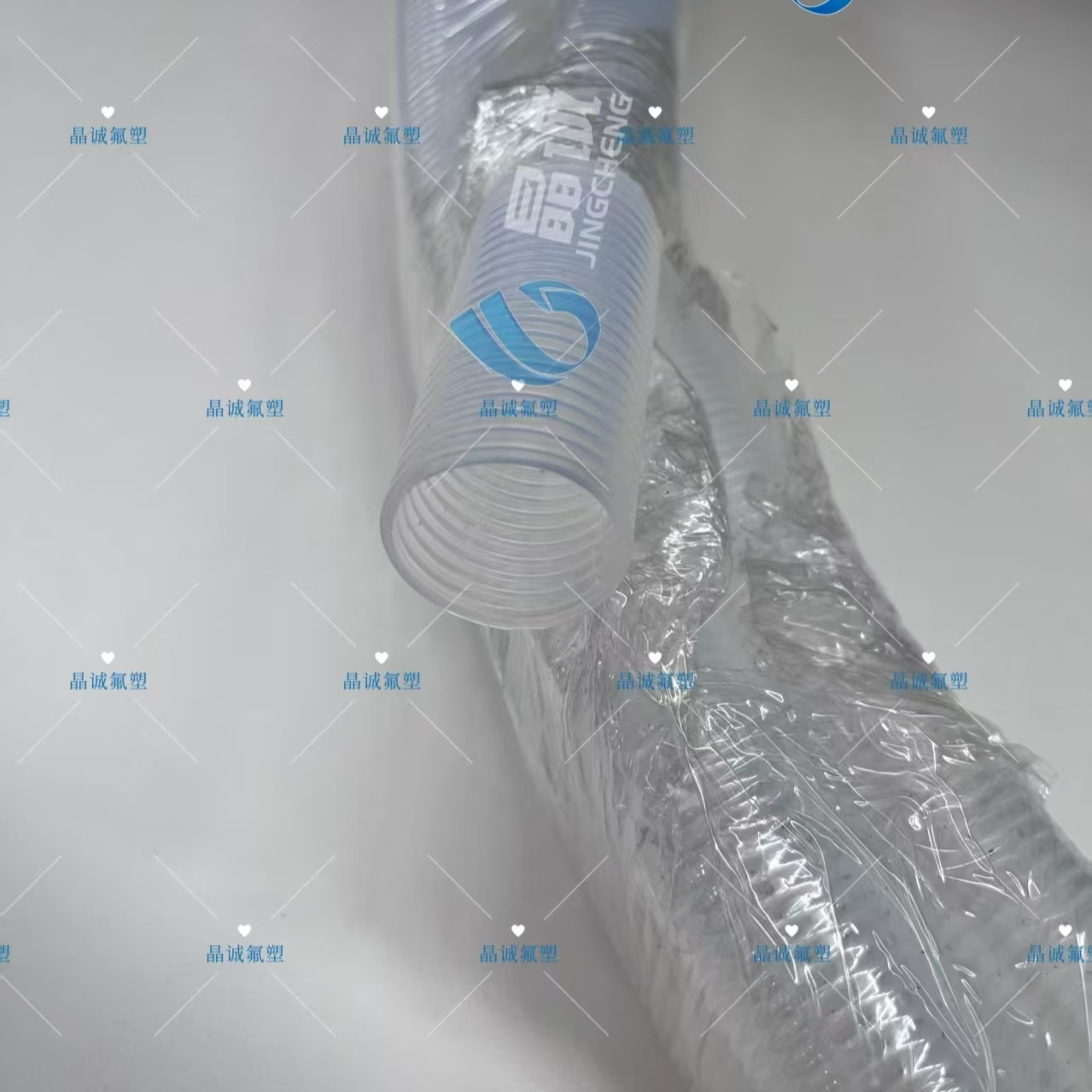

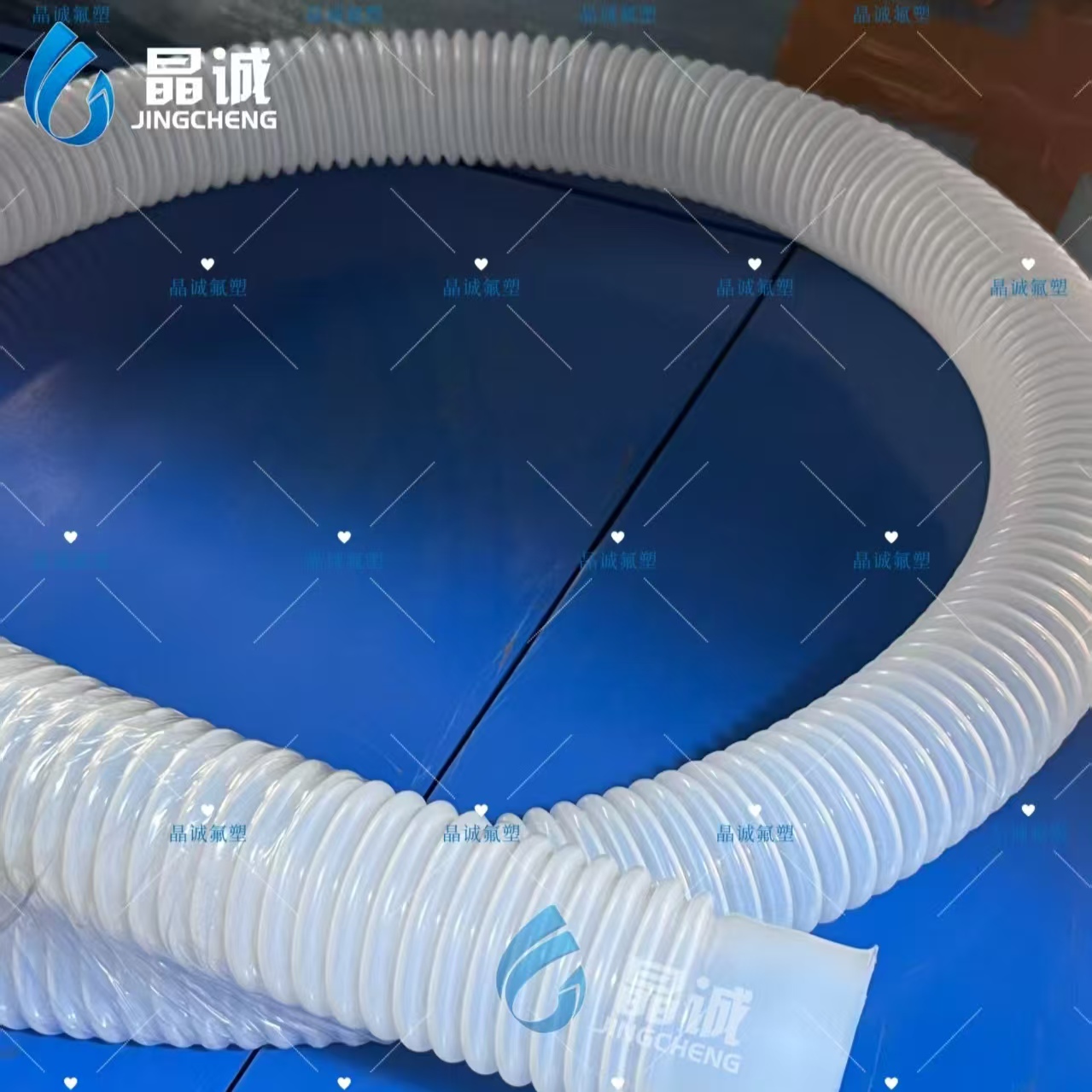

This PTFE inner-corrugated spring reinforced hose is designed for applications that need chemical resistance + flexibility + structural support in one hose. Compared with standard smooth PTFE tubing, this structure improves bend performance while keeping excellent media compatibility.
According to your catalog page for this product, the hose uses a PTFE inner tube, flat/corrugated outer tube, and a middle 304 spiral spring reinforcement, making it suitable for transporting highly corrosive chemicals, hot air, hot oil, and steam across demanding industrial environments. It is also listed for food, cosmetics, chemical, and pharmaceutical industries.
Temperature range: -65°C to 260°C (design-dependent)
Working pressure: up to 396 psi / 2.64 MPa (design-dependent, depends on size)
Burst pressure: up to 1276 psi / 8.8 MPa (design-dependent, depends on size)
Minimum bend radius: as low as 19 mm (0.75") (design-dependent)
Reinforcement: 304 spiral spring for added support and durability
Media compatibility: suitable for corrosive chemicals, hot air, hot oil, steam (verify media compatibility by concentration and temperature)
When standard tubing kinks too easily or lacks support in dynamic routing, this hose structure solves the problem. It combines:
PTFE chemical resistance for aggressive media
Better flexibility for tighter installations
Spring-supported structure to improve routing reliability
Wide temperature tolerance for heated process lines
It is a strong fit for transfer systems in chemical processing, cosmetic production, pharmaceutical fluid handling, and related equipment where hose life and process stability matter.
PTFE + 304 Spring Composite Structure
PTFE flow path for corrosion resistance, plus a 304 spiral spring layer to strengthen the hose body and support flexible routing.
High Flexibility with Controlled Bend Radius
Designed for installations where space is limited and hose routing is complex, while reducing the risk of deformation during use.
Multi-Industry Process Compatibility
Suitable for hot air, hot oil, steam, and corrosive chemical transfer in food, cosmetics, chemical, and pharmaceutical applications (application review recommended).
Catalog product family shown as JCC-20000-PTFE (page 8 in the brochure).
| Model No. | Nominal Size | Inner Dia (mm) | Outer Dia (mm) | Working Pressure (psi / MPa) | Burst Pressure (psi / MPa) | Min. Bend Radius (inch / mm) |
|---|---|---|---|---|---|---|
| JCC-20006-PTFE | 1/4" | 6.8 | 8.35 | 396 / 2.64 | 1276 / 8.8 | 0.75 / 19 |
| JCC-20008-PTFE | 5/16" | 7.9 | 10.3 | 378 / 2.52 | 1218 / 8.4 | 0.75 / 19 |
| JCC-20010-PTFE | 3/8" | 10.0 | 11.93 | 360 / 2.4 | 1160 / 8.0 | 0.98 / 25 |
| JCC-20013-PTFE | 1/2" | 13.6 | 15.1 | 270 / 1.8 | 870 / 6.0 | 1.50 / 38 |
| JCC-20016-PTFE | 5/8" | 16.7 | 18.3 | 236.83 / 1.63 | 725 / 5.0 | 1.97 / 50 |
| JCC-20019-PTFE | 3/4" | 19.8 | 22.0 | 203 / 1.4 | 609 / 4.2 | 2.48 / 63 |
| JCC-20025-PTFE | 1" | 26.4 | 29.4 | 180 / 1.2 | 580 / 4.0 | 2.95 / 75 |
All values are catalog reference values and are design-dependent. Final performance depends on hose size, wall design, fittings, assembly method, media, and operating temperature.
We support custom builds for OEM and process equipment needs, including:
Hose size (ID/OD)
Length
End fittings / connectors
Spring reinforcement design
Operating pressure target
Temperature requirement
Media/application matching
Color / marking / labeling
Assembly type (hose only or finished hose assembly)
We are a PTFE hose manufacturer focused on custom industrial hose solutions. Our process typically includes requirement review, structure confirmation, sample/prototype (if needed), production, inspection, and shipment—so you get a hose built for your actual working conditions, not a generic substitute.
