In high-pressure transfer systems, ordinary PTFE hose structures are often not enough. When the application involves pressure spikes, mechanical stress, steam, oil, or heavy-duty industrial routing, the hose must provide more than chemical resistance. It also needs stronger reinforcement, better structural stability, and higher mechanical strength.

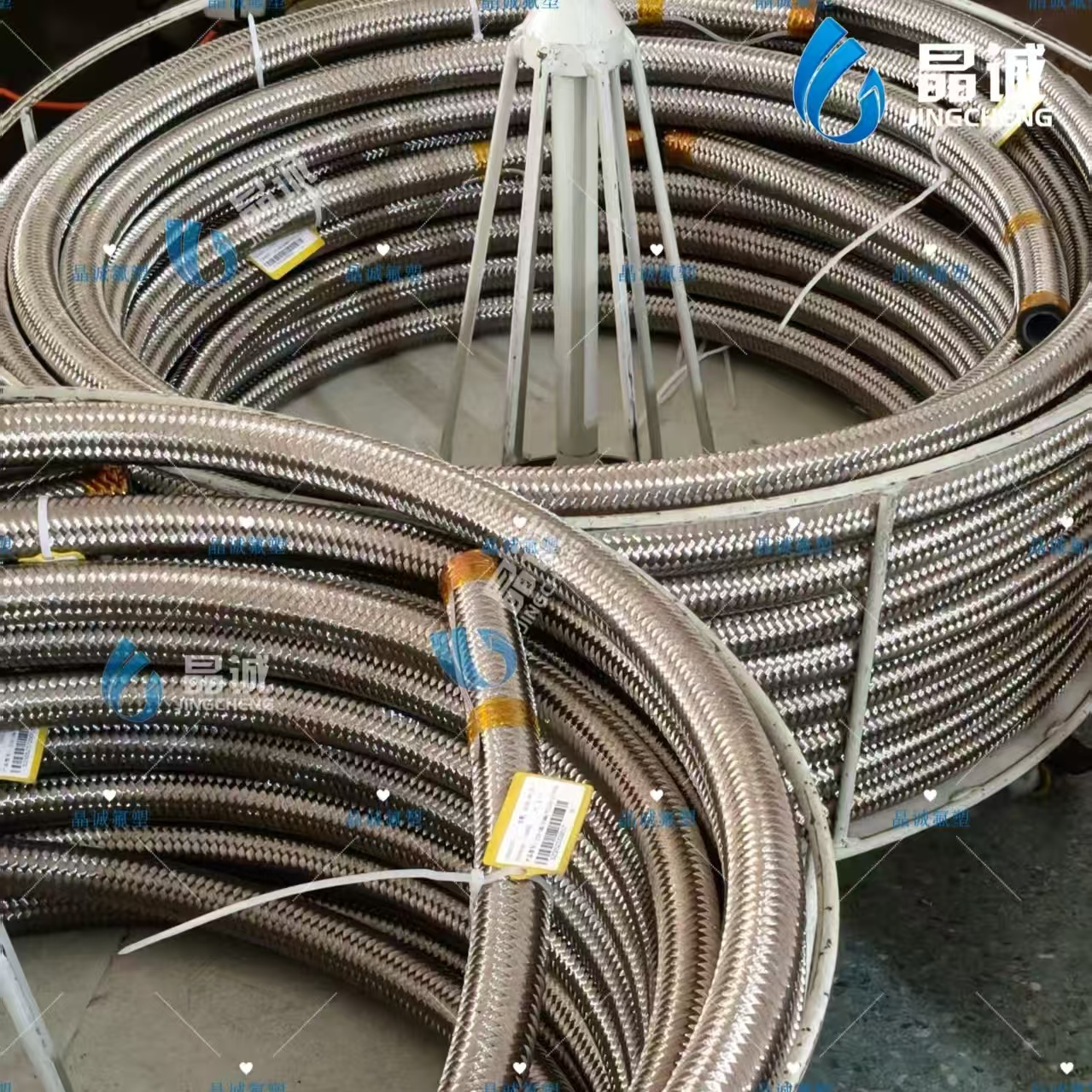

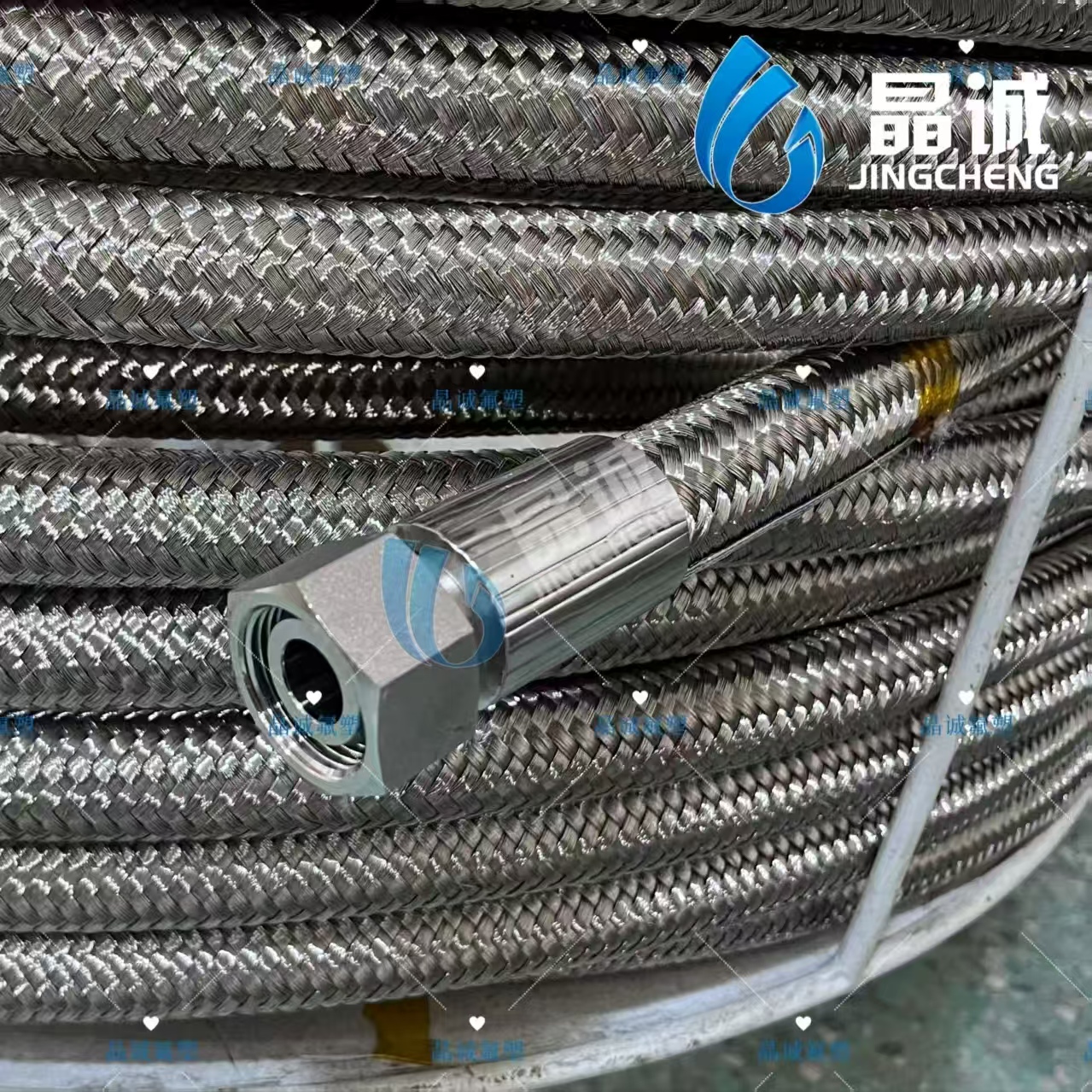

That is where a PTFE steel wire bundled braided hose becomes a much more suitable solution. Shenzhen Jingcheng’s seventh PTFE cold hose product is designed for demanding pressure applications by combining a smooth PTFE inner tube with two layers of stainless steel reinforcement. According to your brochure, the hose uses one layer of 304 stainless steel braided wire as the middle reinforcement layer and one outer layer of high-strength 304 stainless steel wire bundle braid, giving the product strong mechanical resistance and making it suitable for high-pressure industrial transfer.
Unlike a standard single-braided PTFE hose, this product is built for heavier-duty service. Its structure does not stop at one stainless steel braid. Instead, it adds an extra high-strength stainless steel wire bundle reinforcement layer, which increases the hose’s resistance to demanding mechanical conditions.
This multi-layer reinforcement design gives the hose a more robust profile for industrial users who need:
higher pressure capability
stronger mechanical resistance
more durable hose structure
better suitability for severe operating environments
For many buyers, this makes it a more reliable option than simpler PTFE braided hose designs when the system involves higher loads or harsher transfer conditions.

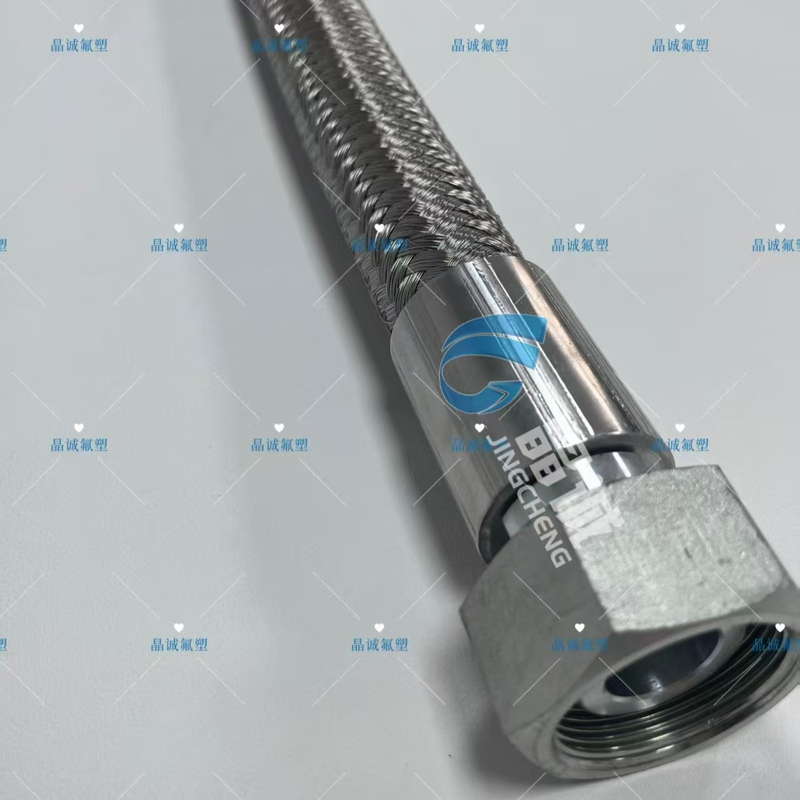

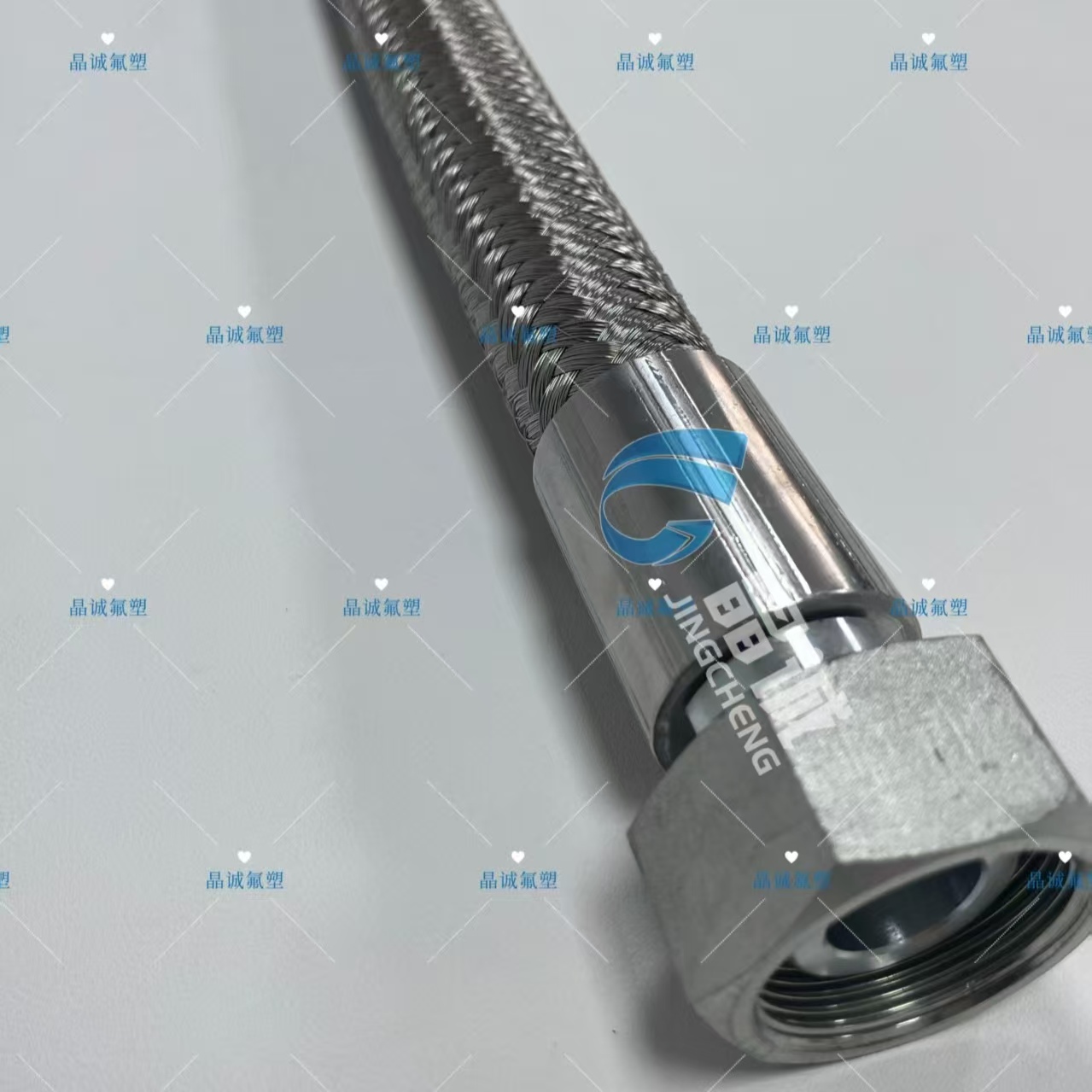

One of the biggest strengths of this hose is its two-layer stainless steel reinforcement design. According to the brochure, the hose includes one 304 stainless steel braided wire layer in the middle and one high-strength 304 stainless steel wire bundle braided outer layer. This creates a stronger overall hose structure for high-pressure use.
The hose inner layer is a smooth PTFE tube, which supports stable media transfer while maintaining the well-known chemical resistance and cleanliness advantages of PTFE.
The brochure specifically states that the hose has good mechanical resistance. This is important in demanding industrial systems where hoses must handle not only aggressive media, but also external wear, vibration, and more severe operating conditions.
This hose operates within a temperature range of -70°C to +260°C, making it suitable for both low-temperature and high-temperature industrial transfer applications.
The brochure explicitly lists applications such as high-pressure chemical spraying, high-pressure gluing, high-pressure conveying, steam conveying, oil conveying, and brake hose service. That makes its positioning very clear: this is a hose for more demanding pressure environments.
Item | Our Data |
|---|---|
Product Name | PTFE Steel Wire Bundled Braided Hose |
Model Series | JCC-02100-PTFE |
Inner Structure | Smooth PTFE inner tube |
Middle Reinforcement | 304 stainless steel braided wire |
Outer Reinforcement | High-strength 304 stainless steel wire bundle braid |
Key Feature | Good mechanical resistance |
Temperature Range | -70°C to +260°C |
Main Applications | High-pressure chemical spraying, high-pressure gluing, high-pressure conveying, steam conveying, oil conveying, brake hose |
Custom Support | Customizable according to parameter requirements |
These product details are stated on the seventh product page of your PTFE cold hose brochure.
No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|
JCC-02110-PTFE | 3/8" / 9.5 mm | 11.9 mm | 5945 psi / 41 MPa | 17719 psi / 122.2 MPa | 2.95" / 75 mm |
JCC-02113-PTFE | 1/2" / 12.7 mm | 15.1 mm | 5713 psi / 39 MPa | 17139 psi / 118.2 MPa | 4.45" / 113 mm |
JCC-02216-PTFE | 5/8" / 16.3 mm | 19.9 mm | 5959 psi / 41 MPa | 17879 psi / 123.3 MPa | 6.69" / 170 mm |
JCC-02219-PTFE | 3/4" / 19 mm | 23 mm | 5872 psi / 41 MPa | 17618 psi / 121.5 MPa | 8.07" / 205 mm |
JCC-02225-PTFE | 1" / 25 mm | 29 mm | 5118 psi / 35 MPa | 15356 psi / 105.9 MPa | 9.76" / 248 mm |
JCC-02232-PTFE | 1-1/4" / 31.5 mm | 35.5 mm | 3770 psi / 26 MPa | 11310 psi / 78 MPa | 19.29" / 490 mm |
JCC-02238-PTFE | 1-1/2" / 38 mm | 42 mm | 2392 psi / 17 MPa | 7178 psi / 49.5 MPa | 25.59" / 650 mm |
JCC-02250-PTFE | 2" / 50 mm | 54.5 mm | 2537 psi / 18 MPa | 7613 psi / 52.5 MPa | 35.43" / 900 mm |
These specifications are shown in the product table for the seventh PTFE hose product in your brochure.
These values show very clearly that this is not a light-duty PTFE hose.
For example:
working pressures up to 41 MPa indicate serious high-pressure capability
burst pressures above 120 MPa on some sizes show the strength of the dual stainless steel reinforcement design
and the wide size range from 3/8" to 2" gives this hose more flexibility across different industrial systems
For high-pressure spray, glue, steam, or oil systems, these numbers matter because they directly affect operational safety, hose durability, and system reliability.
This product is well suited for:
high-pressure chemical spraying
high-pressure gluing systems
high-pressure fluid conveying
steam conveying lines
oil transfer systems
brake hose applications
industrial systems requiring strong mechanical resistance and reinforced PTFE structure
These application directions are directly supported by the brochure description.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer focused on PTFE hose production and customized transfer solutions. For a product like this, that matters because performance depends not only on PTFE material, but also on reinforcement structure, braid quality, dimensional control, and consistency in manufacturing.
For buyers in high-pressure industries, the supplier must be able to deliver not just a hose, but a reinforced hose solution with predictable performance under demanding service conditions.
