A spring-reinforced smooth-bore corrugated PTFE hose combines clean internal flow, improved flexibility and structural reinforcement.

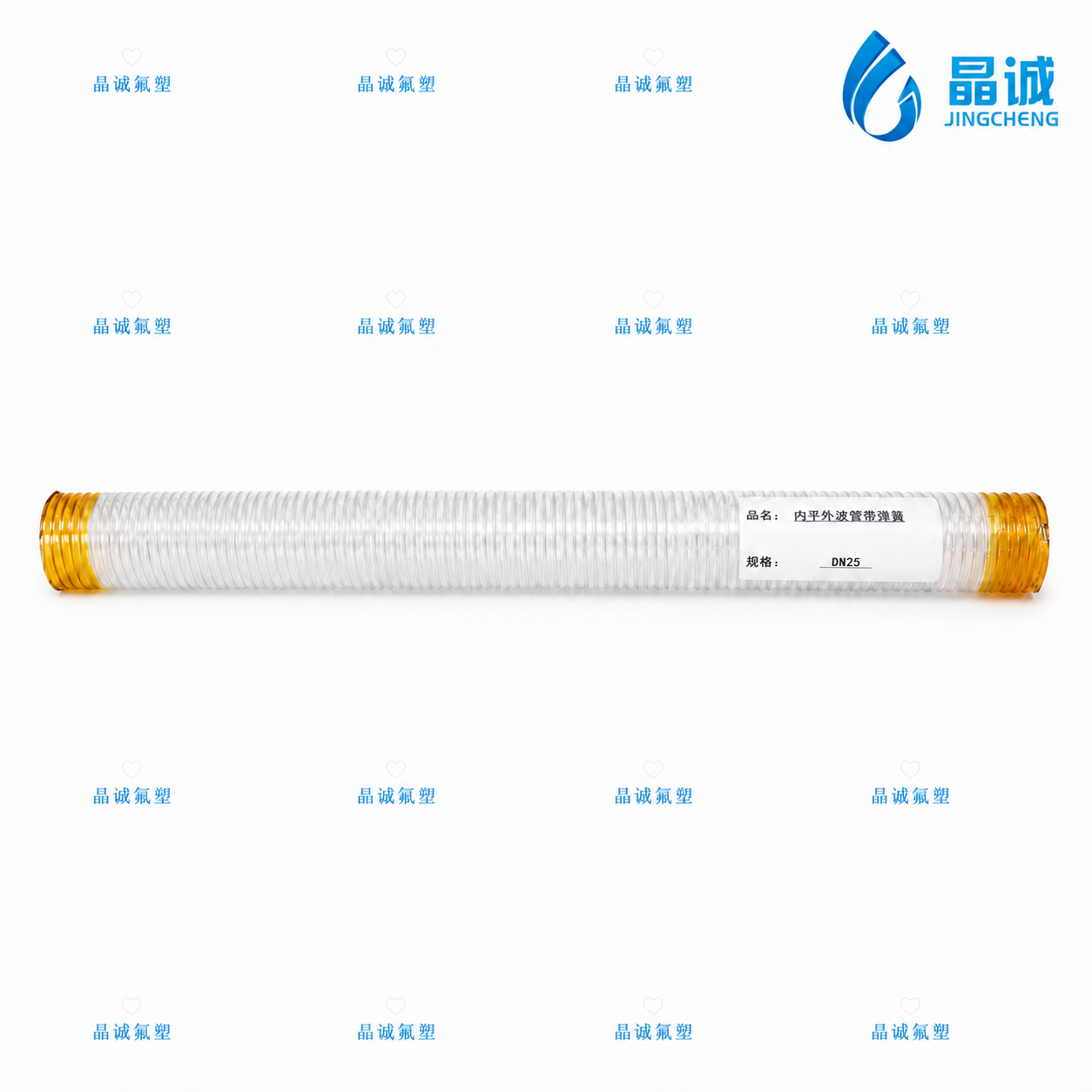

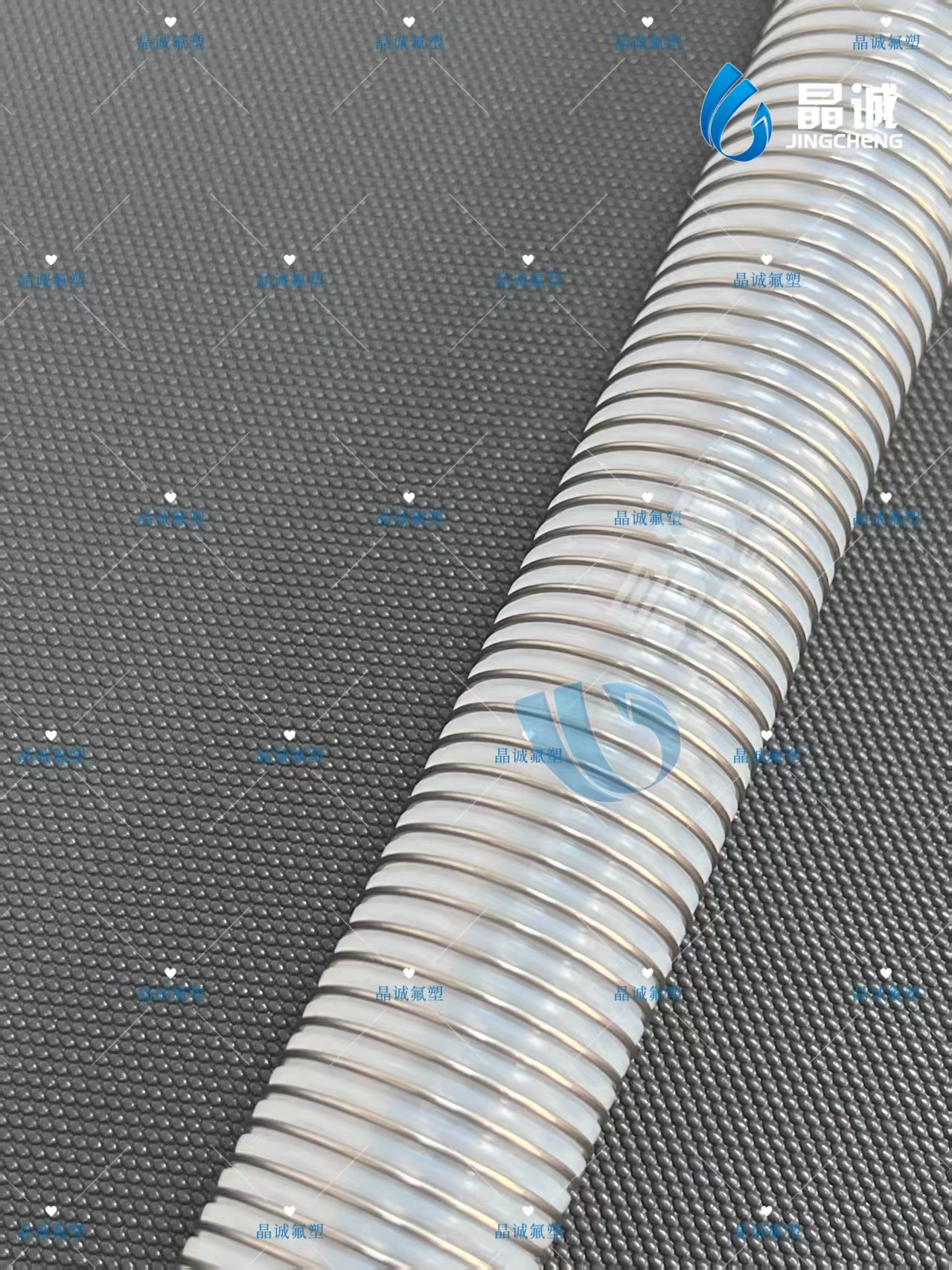

The inner wall is smooth to reduce material retention and flow resistance. The outer PTFE wall is corrugated to improve bending performance. A 304 stainless steel spiral spring is positioned around the hose to provide additional support.
This structure is suitable for transferring corrosive chemicals, hot air, hot oil, steam and other industrial fluids.
A conventional smooth PTFE hose offers good flow performance but may be less flexible.
A fully corrugated PTFE hose bends easily, but its corrugated inner wall may retain more material in certain applications.
The inner-smooth, outer-corrugated design provides a balance between:
Smooth internal flow
Easier cleaning
Better flexibility
Small bending radius
Structural reinforcement
Chemical resistance
High-temperature performance
The spiral spring layer helps support the hose structure during bending and installation.
Depending on the complete assembly design, it can help:
Reduce deformation
Improve bending stability
Support compact routing
Protect the hose during movement
Maintain a more consistent internal flow path
Improve installation flexibility
The smooth internal surface helps reduce friction and material accumulation.
The outer corrugation improves flexibility without creating a fully corrugated material-contact surface.
The spring provides reinforcement and additional structural support.
The product is designed for temperatures from -65°C to +260°C.
PTFE is suitable for many highly corrosive chemicals and industrial process media.
The hose can be configured for hot air, hot oil and steam transfer according to working conditions.
Highly corrosive chemical transfer
Hot-air delivery systems
Hot-oil transfer
Steam pipelines
Food processing equipment
Cosmetics production machinery
Pharmaceutical equipment
Chemical dosing systems
Flexible process connections
High-temperature industrial pipelines
Compact equipment layouts
Item | Specification |
|---|---|
Product Name | Spring-Reinforced Smooth-Bore Corrugated PTFE Hose |
Model Series | JCC-20000-PTFE |
Inner Structure | Smooth PTFE wall |
Outer Structure | Corrugated PTFE wall |
Reinforcement | 304 stainless steel spiral spring |
Temperature Range | -65°C to +260°C |
Inner Diameter Range | 1/4” to 1” |
Main Advantages | Smooth flow, flexibility and reinforcement |
Customization | Available |
Catalog Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
JCC-20006-PTFE | 1/4” / 6.8 mm | 8.35 mm | 396 psi / 2.64 MPa | 1276 psi / 8.8 MPa | 19 mm |
JCC-20008-PTFE | 5/16” / 7.9 mm | 10.3 mm | 378 psi / 2.52 MPa | 1218 psi / 8.4 MPa | 19 mm |
JCC-20010-PTFE | 3/8” / 10 mm | 11.93 mm | 360 psi / 2.4 MPa | 1160 psi / 8 MPa | 25 mm |
JCC-20013-PTFE | 1/2” / 13.6 mm | 15.1 mm | 270 psi / 1.8 MPa | 870 psi / 6 MPa | 38 mm |
JCC-20016-PTFE | 5/8” / 16.7 mm | 18.3 mm | 236.83 psi / 1.63 MPa | 725 psi / 5 MPa | 50 mm |
JCC-20019-PTFE | 3/4” / 19.8 mm | 22 mm | 203 psi / 1.4 MPa | 609 psi / 4.2 MPa | 63 mm |
JCC-20025-PTFE | 1” / 26.4 mm | 29.4 mm | 180 psi / 1.2 MPa | 580 psi / 4 MPa | 75 mm |
Final pressure capability depends on temperature, hose size, spring structure, fittings and complete assembly design.
This hose structure can help:
Improve fluid flow
Reduce internal residue
Support easier cleaning
Increase installation flexibility
Reduce hose deformation
Support tight routing
Resist corrosive chemicals
Handle hot industrial fluids
Improve equipment connection reliability
Provide customized replacement solutions
Please provide:
Working medium
Medium concentration
Working temperature
Working pressure
Required hose length
Inner diameter
Minimum bending radius
Whether negative pressure is present
Fitting type
Cleaning method
Equipment drawing or sample
