In corrosive fluid transfer systems, hose performance is not just about moving media from one point to another. It is about maintaining chemical compatibility, temperature stability, purity, and long-term reliability. When the wrong hose material is selected, the result can be premature failure, contamination risk, reduced service life, and higher replacement cost.

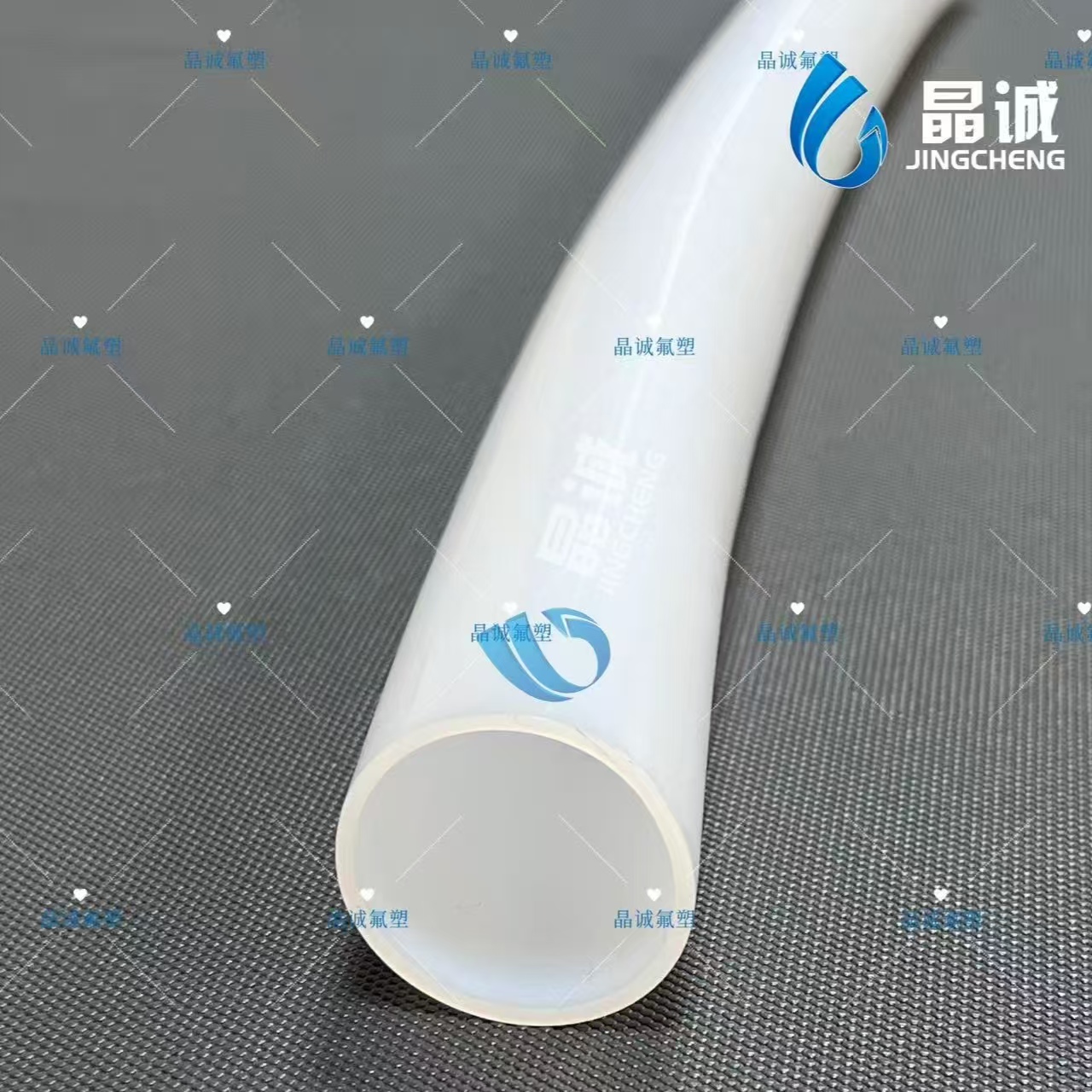

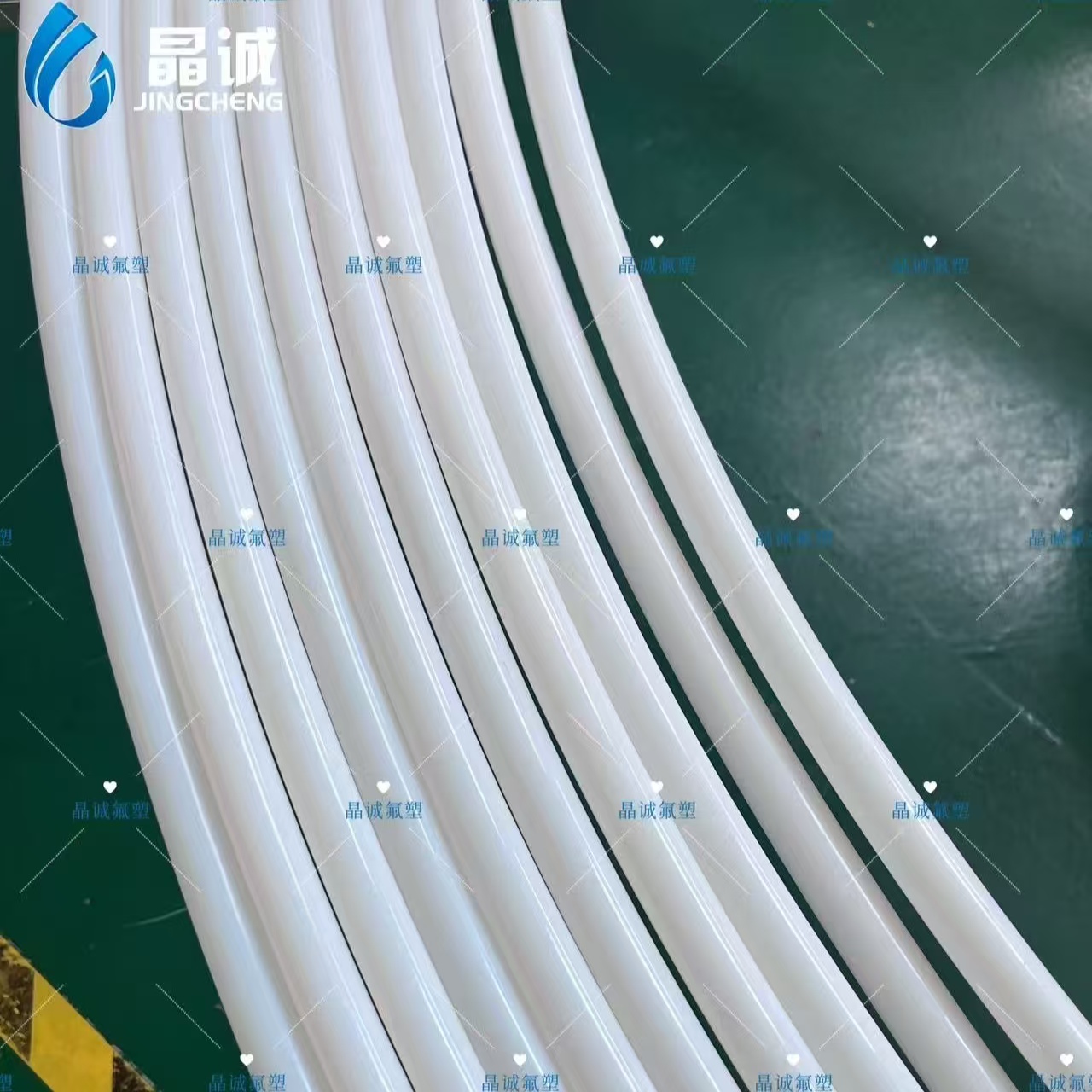

That is why a high-quality standard smooth bore PTFE hose remains one of the most trusted solutions in chemical transfer applications. Shenzhen Jingcheng’s standard PTFE smooth hose is designed for demanding environments where corrosion resistance, cleanliness, and temperature performance all matter. According to your brochure, this hose is manufactured from PTFE material through drying, high-temperature sintering, shaping, and other processes, and is suitable for transferring high-purity chemicals in harsh chemical environments.
Unlike ordinary plastic tubing, a smooth bore PTFE hose is designed for more aggressive chemical duties and broader thermal conditions. PTFE is widely valued for its excellent resistance to corrosive media, its low friction surface, and its ability to perform in both low and high temperature environments.
Your brochure states that this hose has a temperature range of -70°C to +260°C, giving it a wide operating window for industrial applications. It is also specifically recommended for use with strong acids, strong alkalis, strong oxidizing agents, reducing agents, and various organic solvents, making it a highly practical option for chemical transfer systems that demand broad media compatibility.
One of the biggest strengths of this PTFE hose is its compatibility with highly aggressive media. Your brochure explicitly lists strong acids, strong alkalis, strong oxidizers, reducing agents, and organic solvents among its suitable applications. This makes it especially valuable for chemical plants, laboratories, and industrial fluid systems.
The product supports a temperature range from -70°C to +260°C, which allows it to perform across both low-temperature and high-temperature environments. That gives engineers more flexibility when selecting one hose material for varying operating conditions.
As a smooth bore PTFE hose, this product provides a cleaner internal path for fluid transfer. In many chemical and high-purity applications, a smooth inner wall helps reduce residue retention and supports more stable media movement compared with more complex inner structures.
The brochure specifically notes that this hose is very suitable for transporting high-purity chemicals. That is an important value point, because in many industries, purity is not just preferred. It is required.
The product page includes a wide range of sizes from 5/32" to 2", and the brochure notes that it can be customized according to requirements. That makes it easier to match different installation layouts and transfer volumes.
Item | Our Data |
|---|---|
Product Name | Standard PTFE Smooth Bore Hose |
Model Series | JCC-00000-PTFE |
Product Structure | PTFE hose made through drying, high-temperature sintering, shaping, and related processes |
Temperature Range | -70°C to +260°C |
Main Media Compatibility | Strong acids, strong alkalis, strong oxidizing agents, reducing agents, various organic solvents |
Recommended Use | High-purity chemical transfer |
Customization | Custom sizes available on request |
These product details are stated on the first product page of your PTFE hose brochure.
No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius | Wall Thickness |
|---|---|---|---|---|---|---|
JCC-00004-PTFE | 5/32" / 4.5 mm | 6.5 mm | 203 psi / 1.40 MPa | 812 psi / 5.6 MPa | 2.36" / 60 mm | 1.0 mm |
JCC-00006-PTFE | 1/4" / 6.8 mm | 8.8 mm | 251.33 psi / 1.73 MPa | 754 psi / 5.2 MPa | 5.12" / 130 mm | 1.0 mm |
JCC-00008-PTFE | 5/16" / 8.2 mm | 10.5 mm | 203 psi / 1.40 MPa | 609 psi / 4.2 MPa | 6.30" / 160 mm | 1.2 mm |
JCC-00010-PTFE | 3/8" / 10.3 mm | 12.7 mm | 169.17 psi / 1.17 MPa | 507.5 psi / 3.5 MPa | 8.66" / 220 mm | 1.2 mm |
JCC-00013-PTFE | 1/2" / 13.3 mm | 15.7 mm | 135.33 psi / 0.93 MPa | 406 psi / 2.8 MPa | 10.63" / 270 mm | 1.2 mm |
JCC-00016-PTFE | 5/8" / 15.9 mm | 18.3 mm | 106.33 psi / 0.73 MPa | 319 psi / 2.2 MPa | 15.75" / 400 mm | 1.2 mm |
JCC-00019-PTFE | 3/4" / 19.8 mm | 22.3 mm | 80 psi / 0.80 MPa | 348 psi / 2.4 MPa | 19.69" / 500 mm | 1.5 mm |
JCC-00025-PTFE | 1" / 25.7 mm | 29.7 mm | 101.50 psi / 0.70 MPa | 304.5 psi / 2.1 MPa | 23.62" / 600 mm | 2.0 mm |
JCC-00032-PTFE | 1-1/4" / 31.7 mm | 35.7 mm | 91.83 psi / 0.63 MPa | 275.5 psi / 1.9 MPa | 31.50" / 800 mm | 2.0 mm |
JCC-00038-PTFE | 1-1/2" / 38.5 mm | 42.5 mm | 72.50 psi / 0.50 MPa | 217.5 psi / 1.5 MPa | 35.43" / 900 mm | 2.0 mm |
JCC-00050-PTFE | 2" / 51 mm | 55 mm | 58 psi / 0.40 MPa | 174 psi / 1.2 MPa | 47.24" / 1200 mm | 2.0 mm |
These specifications are shown in the parameter table on the first product page of the brochure.
These values help buyers judge whether the hose matches their operating pressure, line layout, bending space, and chemical transfer demand.
For example:
the -70°C to +260°C temperature range supports a broad range of industrial conditions,
the size range from 5/32" to 2" makes the hose suitable for both compact and larger transfer lines,
and the listed bending radius values are useful for engineering design where installation space is limited.
For chemical transfer applications, hose selection is not only about size. It is also about purity, resistance, stability, and lifecycle value.
This product is well suited for:
high-purity chemical transfer
acid and alkali delivery systems
solvent transfer lines
laboratory and chemical process equipment
industrial fluid systems requiring PTFE chemical resistance
These use scenarios are based directly on the product description in the brochure.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer with long-term experience in the R&D and production of PTFE hoses, PTFE high-pressure hoses, and related transfer solutions. For buyers, that matters because PTFE hose quality depends not only on material, but also on process control, dimensional stability, and consistency across batches.
For industrial customers, a reliable supplier is not just someone who can provide tubing. It is a manufacturer that understands chemical media, size tolerances, application conditions, and customization needs.
