In many industrial fluid transfer systems, customers need more than chemical resistance. They also need a hose that is cleaner on the outside, easier to protect, more wear-resistant, and better suited for equipment environments where stainless steel braid should not be directly exposed.

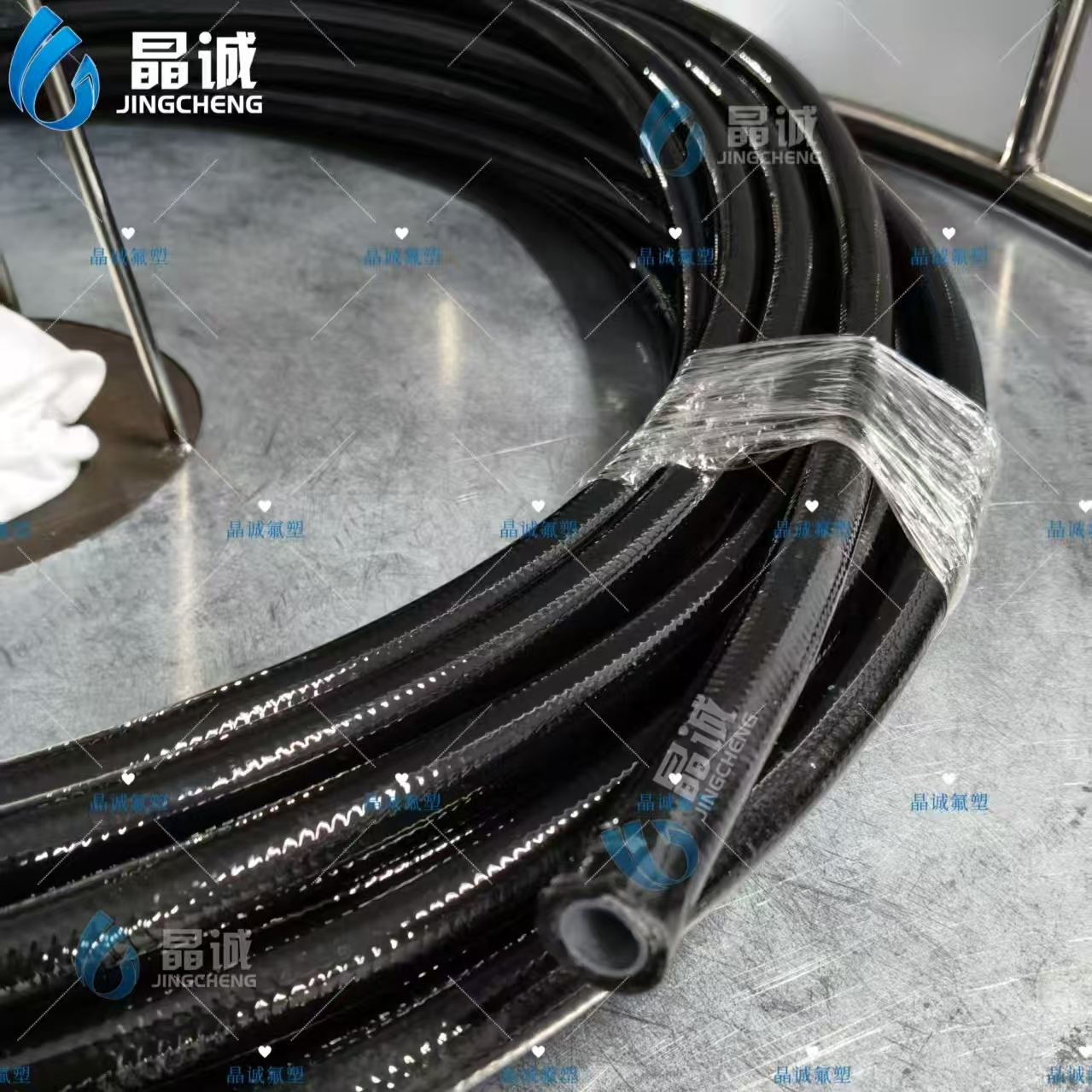

That is where a TPU covered PTFE braided hose becomes highly practical. Shenzhen Jingcheng’s TPU Covered PTFE Braided Hose combines the chemical resistance of a smooth PTFE inner tube, the structural strength of 304 stainless steel braid reinforcement, and the protection of a smooth PU outer cover. According to your brochure, this hose can operate within a temperature range of -70°C to +260°C, and the PU cover can be customized in colors such as black, red, and blue.
A traditional stainless steel braided PTFE hose has strong reinforcement, but the exposed braid may not be ideal in all environments. In some applications, users need a cleaner exterior, better wear protection, lower permeability, and a smoother outside surface to protect both the hose and surrounding equipment.
This product solves that problem by adding a smooth PU outer layer over the braided PTFE hose. The result is a hose that keeps the strength of stainless steel reinforcement while gaining better external protection and a cleaner appearance. For applications in food, cosmetics, pharmaceuticals, beverages, chemical transfer, and high-temperature hydraulic or pneumatic systems, this structure offers a more refined and application-ready solution.

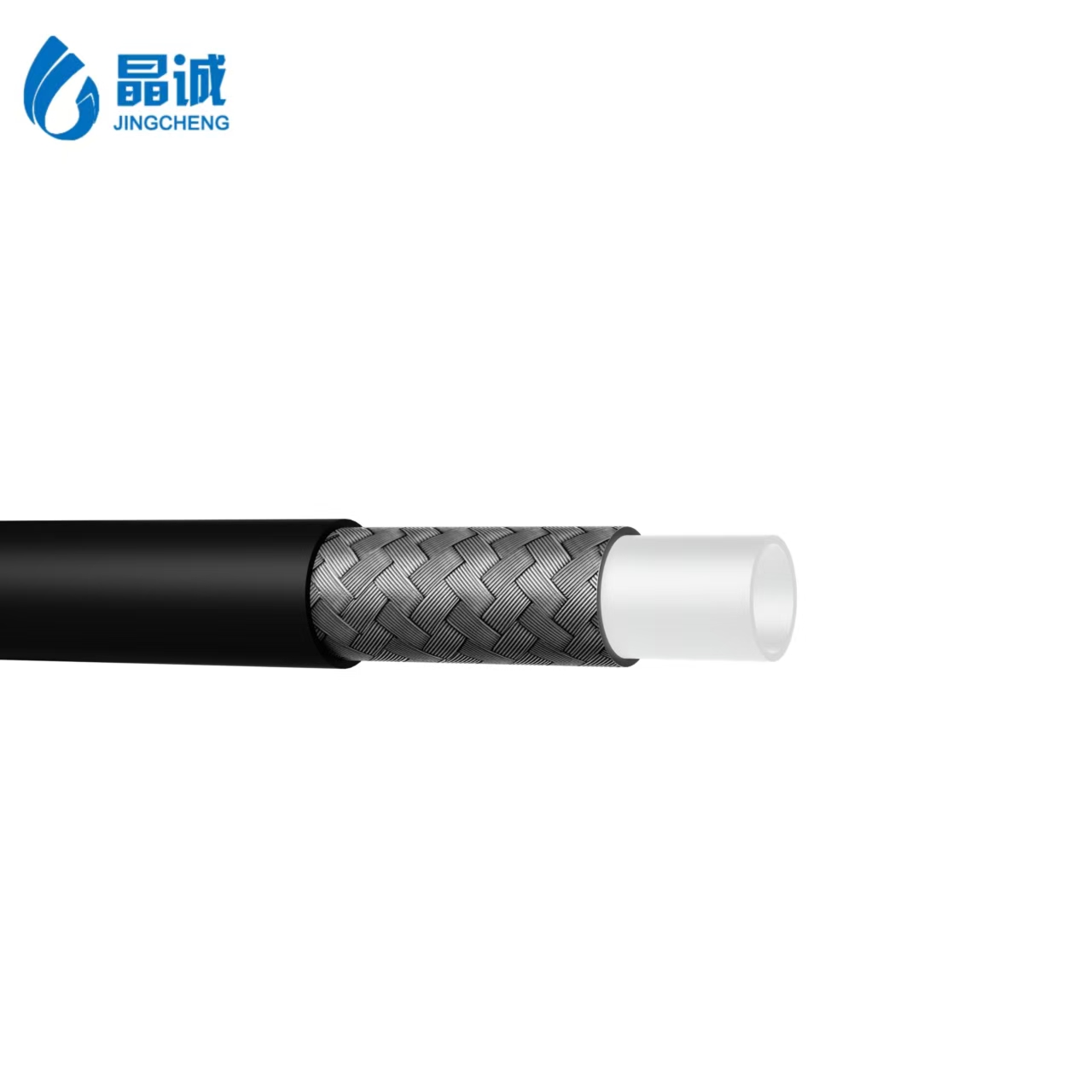

The hose uses a smooth PTFE inner tube, which provides excellent chemical resistance, low friction, and strong compatibility with demanding media. This makes it suitable for corrosive fluids, viscous media, solvents, and high-purity transfer applications.
The middle layer is reinforced with high-strength 304 stainless steel braided wire. This gives the hose improved structural support and pressure resistance while maintaining the core advantages of PTFE.
The outer layer is a smooth PU cover, which helps protect the stainless steel braid from wear, contact damage, and contamination. It also gives the hose a cleaner and more professional appearance for equipment installations.
The brochure highlights that this hose offers better cleanliness and wear resistance. That is especially valuable in industries where exposed braid may not be ideal, such as pharmaceutical, food, cosmetics, and beverage applications.
The product is described as having low permeability and being inert to almost all chemicals and solvents. This makes it a strong option for chemical fluids, solvents, adhesives, paints, and other demanding media.
Item | Our Data |
|---|---|
Product Name | TPU Covered PTFE Braided Hose |
Model Series | JCC-61100-PTFE |
Inner Tube | Smooth PTFE hose |
Reinforcement | High-strength 304 stainless steel braided wire |
Outer Cover | Smooth PU outer layer |
Custom Colors | Black, red, blue, and other colors available on request |
Temperature Range | -70°C to +260°C |
Main Media | Fuel, gas, strong acids, strong alkalis, organic solvents |
Key Features | Better cleanliness, wear resistance, low permeability, chemical inertness |
Main Applications | Pharmaceutical, food, cosmetics, beverage, paint, adhesives, corrosive chemicals, high-temperature hydraulic or pneumatic systems |
These product details are stated on the TPU covered PTFE braided hose product page in your brochure.
No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|
JCC-61104-PTFE | 5/32" / 4 mm | 9.4 mm | 27 MPa | 82 MPa | 1.97" / 50 mm |
JCC-61106-PTFE | 1/4" / 6.35 mm | 11.5 mm | 42 MPa | 126.9 MPa | 2.95" / 75 mm |
JCC-61108-PTFE | 5/16" / 7.8 mm | 13.5 mm | 19 MPa | 57.9 MPa | 3.94" / 100 mm |
JCC-61110-PTFE | 3/8" / 9.7 mm | 14.5 mm | 23 MPa | 70.2 MPa | 4.92" / 125 mm |
JCC-61113-PTFE | 1/2" / 12.7 mm | 18.5 mm | 23 MPa | 68 MPa | 6.50" / 165 mm |
JCC-61116-PTFE | 5/8" / 15.9 mm | 21.8 mm | 18 MPa | 53.8 MPa | 7.87" / 200 mm |
JCC-61119-PTFE | 3/4" / 19 mm | 25.1 mm | 15 MPa | 44.8 MPa | 8.86" / 225 mm |
JCC-61125-PTFE | 1" / 25.6 mm | 31.5 mm | 10 MPa | 31 MPa | 11.81" / 300 mm |
These specifications are shown in the product table for the TPU covered PTFE braided hose in your brochure.
These values help buyers quickly judge whether the hose can match their pressure requirements, installation space, and media compatibility.
For example:
the PU outer cover improves external protection and cleanliness,
the 304 stainless steel braid provides strong reinforcement under pressure,
the smooth PTFE inner tube supports chemical resistance and stable transfer,
and the -70°C to +260°C temperature range allows use in demanding industrial conditions.
For many customers, the real value of this hose is that it combines PTFE chemical resistance, stainless steel reinforcement, and a cleaner protective outer cover in one product.
This product is well suited for:
pharmaceutical fluid transfer
food and beverage processing lines
cosmetics production systems
paint and adhesive transfer
corrosive chemical fluid transfer
high-temperature hydraulic applications
high-temperature pneumatic systems
equipment where exposed stainless steel braid needs external protection
These application directions are directly supported by the product description in your brochure.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer with experience in PTFE hose production and customized transfer solutions. For a TPU covered PTFE braided hose, manufacturing consistency is especially important because performance depends on the PTFE inner tube, stainless steel braid quality, and PU outer cover bonding.
For customers, choosing the right supplier means getting more than a hose. It means getting a cleaner, more durable, and better-protected PTFE hose solution that can be customized for real equipment and process conditions.
