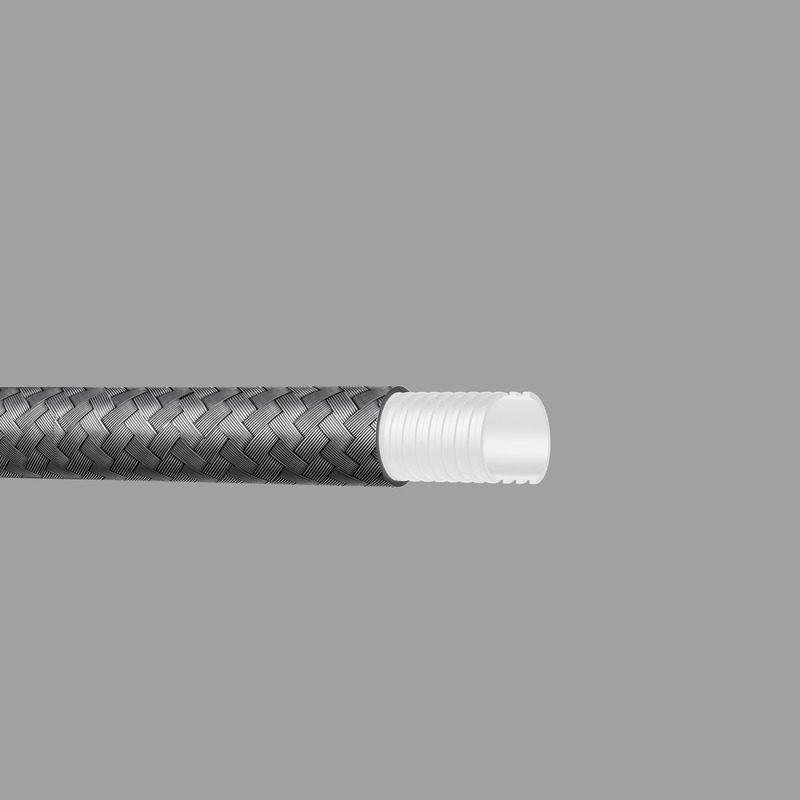

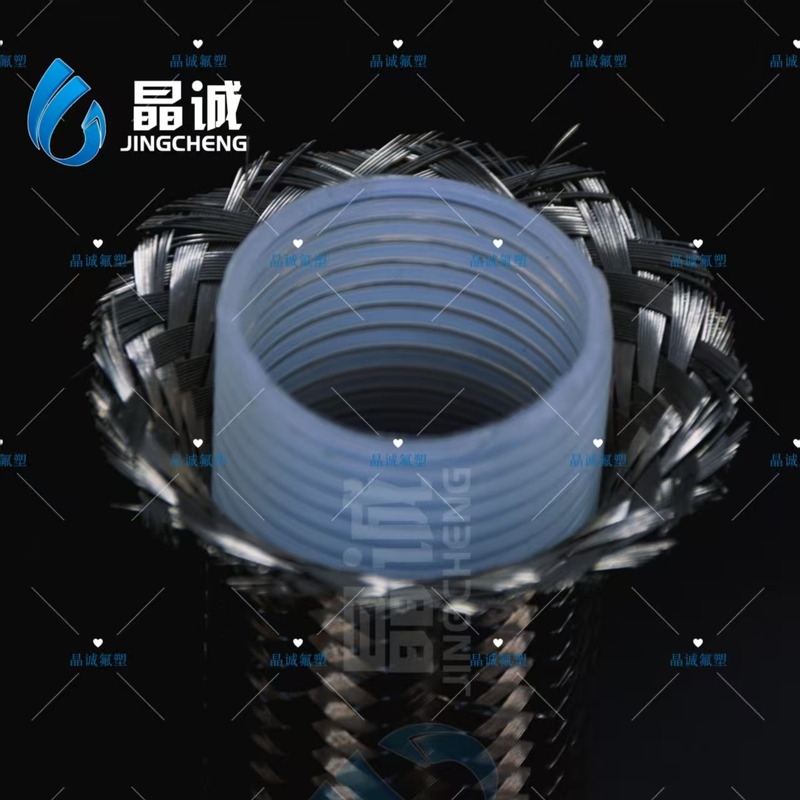

Hygienic transfer lines in food, cosmetics and pharmaceutical plants have to satisfy two requirements that usually pull in opposite directions: a product-contact surface that drains and flushes cleanly between batches, and a hose body flexible enough to route around compact filling, dosing and mixing equipment. Fully convoluted hoses bend easily but their corrugated bore can retain residue, while plain smooth-bore tubes clean well but need wide bend radii and can kink. JINGCHENG Smooth Bore Convoluted Braided PTFE Hose (series JCC-21100-PTFE) combines a smooth PTFE inner wall, a corrugated PTFE outer wall and a 304 stainless steel wire braid to deliver cleanability, vacuum resistance and a small bend radius in one hose, rated from -70°C to +260°C.
Smooth PTFE inner bore: The product-contact surface is a smooth, non-stick PTFE wall that minimizes residue, supports fast flushing and gives low flow resistance for viscous creams, syrups and process liquids.
Corrugated PTFE outer wall: External convolutions add flexibility, allowing tighter routing than a plain smooth-bore tube of similar size.
304 stainless steel braid: A single outer layer of 304 stainless steel braided wire reinforces the liner against internal pressure and suction and protects it from abrasion.
Vacuum-resistant and easy to clean: The combination of a smooth bore and braided reinforcement helps the hose keep its shape on pump suction lines and cleaning cycles.
Small bend radius: Minimum bend radius starts at 19 mm on the 1/4" and 5/16" sizes and reaches 80 mm on the 1-1/4" size.
Wide temperature range: -70°C to +260°C covers chilled product transfer as well as hot cleaning and sterilizing cycles.
The JINGCHENG PTFE hose catalog lists the JCC-21100-PTFE series for food, cosmetics, chemical and pharmaceutical delivery. Typical installations include:
Food and beverage processing: Flexible transfer of ingredients, edible oils, syrups, flavorings and cleaning solutions where a smooth bore simplifies cleaning between batches.
Cosmetics and personal care: Delivery lines for creams, lotions, alcohol-based liquids and fragrances on filling and mixing equipment.
Pharmaceutical production: Flexible jumpers on dosing, filling and transfer equipment that require a chemically inert, low-residue contact surface.
Chemical delivery: Transfer of acids, alkalis and solvents on pump suction and discharge lines that see both pressure and vacuum.
Part No. | Nominal Size | Inner Diameter (mm) | Tube Outer Diameter (mm) | Braided Outer Diameter (mm) | Working Pressure (psi) | Working Pressure (MPa) | Burst Pressure (psi) | Burst Pressure (MPa) | Min. Bend Radius (inch) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
JCC-21106-PTFE | 1/4" | 6.8 | 8.35 | 9.6 | 1276 | 8.8 | 5104 | 35.2 | 0.75 | 19 |
JCC-21108-PTFE | 5/16" | 7.9 | 10.3 | 10.6 | 1218 | 8.4 | 4872 | 33.6 | 0.75 | 19 |
JCC-21110-PTFE | 3/8" | 10 | 11.93 | 13.5 | 1305 | 9 | 5220 | 36 | 0.98 | 25 |
JCC-21113-PTFE | 1/2" | 13.6 | 15.1 | 17.5 | 870 | 6 | 3480 | 24 | 1.50 | 38 |
JCC-21116-PTFE | 5/8" | 16.7 | 18.3 | 21.4 | 725 | 5 | 2900 | 20 | 1.97 | 50 |
JCC-21119-PTFE | 3/4" | 19.8 | 22 | 24.2 | 609 | 4.2 | 2436 | 16.8 | 2.48 | 63 |
JCC-21125-PTFE | 1" | 26.4 | 29.4 | 31.7 | 580 | 4 | 2320 | 16 | 2.95 | 75 |
JCC-21132-PTFE | 1-1/4" | 31.75 | 35.5 | 37 | 362.5 | 2.5 | 1450 | 10 | 3.15 | 80 |
Data source: JINGCHENG PTFE Hose Catalog (JCC-21100-PTFE Series). Operating temperature range: -70°C to +260°C. All specifications can be customized according to customer parameters.
JCC-21100 vs. JCC-20000 Smooth-ID Corrugated-OD Hose with Spring: Both use a smooth inner bore and corrugated outer wall. JCC-21100 replaces the external spring with a full 304 stainless steel braid, raising the 1/4" working pressure to 8.8 MPa and adding abrasion protection.
JCC-21100 vs. JCC-11100 Braided Inner Spiral Convoluted Hose: JCC-11100 bends even more tightly and covers sizes up to 2", but its corrugated bore is harder to clean. Choose JCC-21100 when a smooth product-contact surface and vacuum performance are priorities.
JCC-21100 vs. JCC-01100 Single-Braid Smooth Bore Hose: JCC-01100 offers higher working pressures (10–42 MPa) with larger bend radii; JCC-21100 trades some pressure capacity for tighter routing.
Size and pressure: Choose from 8 standard sizes (1/4" to 1-1/4" ID) and keep operating pressure, including pump peaks, within the rated working pressure for that size.
Bend radius: Route bends at or above the listed minimum bend radius and leave a short straight section behind each fitting.
Temperature and cleaning cycles: Confirm that product temperature and any hot cleaning or sterilizing steps stay within -70°C to +260°C.
Installation: Avoid twisting the braid while tightening fittings, support long runs, and inspect the braid and end connections regularly.
Custom assemblies: JINGCHENG supplies bulk hose and custom cut-length assemblies with sanitary clamp, threaded or flanged ends to your drawings. Send us your media, temperature, pressure and connection details for a quotation.
