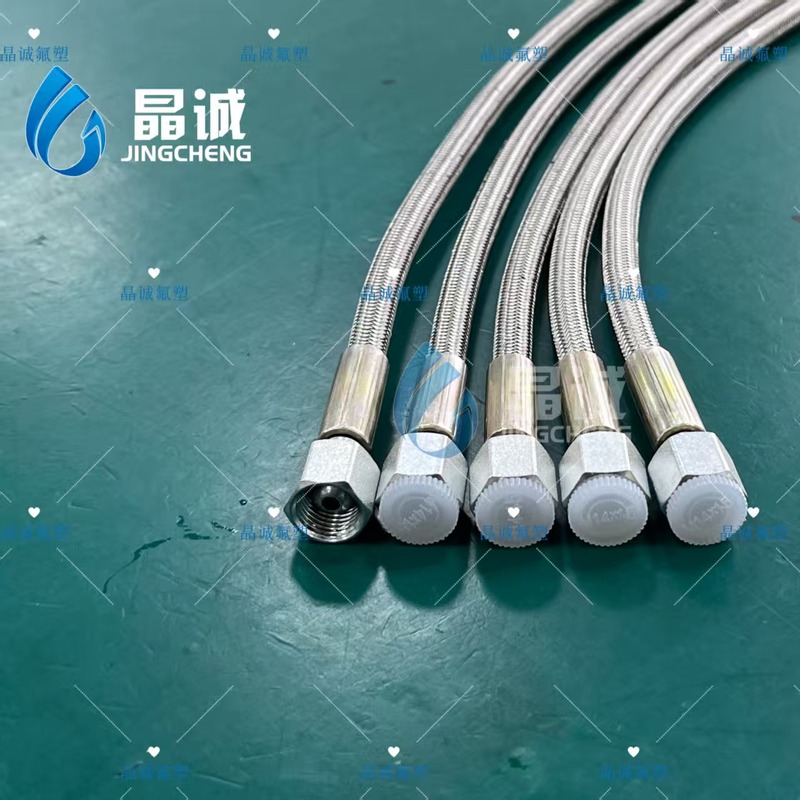

High-pressure fluid transfer systems across industrial machinery, automotive assemblies and chemical processing plants require a hose that combines broad chemical inertness with strong mechanical pressure containment. Conventional elastomer or thermoplastic hoses can soften, swell or burst when exposed to aggressive solvents, hydraulic fluids and wide temperature swings. JINGCHENG Single-Layer 304 Stainless Steel Braided Smooth Bore PTFE Hose (series JCC-01100-PTFE) pairs a smooth polytetrafluoroethylene (PTFE) inner tube with a single outer layer of high-strength 304 stainless steel braided wire reinforcement for dependable service from -70°C to +260°C.
Smooth-bore PTFE inner core: The inner layer is a smooth-wall PTFE tube that provides a low-friction, non-stick flow path, minimizing pressure drop and preventing residue buildup during fluid transfer and line flushing.
High-strength 304 stainless steel single braid: A tightly woven 304 stainless steel wire outer layer supports hoop and axial loads, protecting the PTFE core against pressure expansion, external abrasion and mechanical vibration.
High working and burst pressure ratings: Supports continuous working pressures from 10 MPa (1" ID) up to 42 MPa (1/4" ID), with burst pressures reaching up to 126.9 MPa on the 1/4" size and 82 MPa on the 5/32" size.
Wide operating temperature window (-70°C to +260°C): Maintains structural integrity and sealing reliability across sub-zero ambient conditions, hot hydraulic oil circuits and elevated-temperature chemical lines.
Broad chemical compatibility: The PTFE inner wall resists strong acids, alkalis, organic solvents, fuels, lubricants and corrosive process fluids.
According to the JINGCHENG PTFE hose catalog (JCC-01100-PTFE series), this single-layer braided PTFE hose is engineered for machinery, electronic and electrical appliances, automotive, medical, aerospace, chemical, computer, energy, military and telecommunications applications, including:
Machinery and hydraulic equipment: High-pressure oil, lubricant, coolant and actuator lines on industrial presses, molding machines and automated production skids.
Automotive and transportation systems: Fuel delivery, brake fluid, turbocharger oil feed, power steering and high-temperature fluid lines requiring braid-reinforced PTFE durability.
Chemical processing plants: High-pressure metering, reactor feed and transfer lines handling corrosive acids, alkalis and organic solvents.
Aerospace, military and energy equipment: Reliable fluid and pneumatic conduits operating under demanding thermal and mechanical conditions.
Electronics, computer, medical and telecom equipment: Clean, non-contaminating pressurized fluid and gas supply lines in manufacturing and testing apparatus.
Part No. | Nominal Size | Inner Diameter (mm ±0.2) | Tube Outer Diameter (mm ±0.2) | Braided Outer Diameter (mm ±0.2) | Working Pressure (MPa) | Burst Pressure (MPa) | Min. Bend Radius (inch) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|
JCC-01104-PTFE | 5/32" | 4 | 6 | 7 | 27 | 82 | 1.65 | 42 |
JCC-01106-PTFE | 1/4" | 6.35 | 8.35 | 9.6 | 42 | 126.9 | 2.95 | 75 |
JCC-01108-PTFE | 5/16" | 8 | 10.4 | 11.7 | 19 | 57.9 | 3.23 | 82 |
JCC-01110-PTFE | 3/8" | 9.7 | 12.1 | 13.6 | 23 | 70.2 | 3.94 | 100 |
JCC-01113-PTFE | 1/2" | 12.7 | 15.1 | 16.7 | 23 | 68 | 4.92 | 125 |
JCC-01116-PTFE | 5/8" | 15.9 | 18.3 | 19.6 | 18 | 53.8 | 6.30 | 160 |
JCC-01119-PTFE | 3/4" | 19 | 22 | 23.8 | 15 | 44.8 | 7.68 | 195 |
JCC-01125-PTFE | 1" | 25.4 | 29.4 | 31 | 10 | 31 | 10.24 | 260 |
Data source: JINGCHENG PTFE Hose Catalog (JCC-01100-PTFE Series). Operating temperature range: -70°C to +260°C. All specifications can be customized according to customer parameters.
JCC-01100 Single-Braided Smooth Bore vs. JCC-00000 Bare Smooth Bore Tube: Both share a smooth PTFE inner wall, but the 304 stainless steel wire braid on JCC-01100 boosts working pressure from 0.40–1.73 MPa up to 10–42 MPa while reducing minimum bend radii (for example, 75 mm vs. 130 mm on 1/4" size).
JCC-01100 Single-Braided Smooth Bore vs. JCC-11100 Helical Convoluted Braided Hose: Choose JCC-01100 when high working pressure (up to 42 MPa), smooth laminar flow and rapid bore drainage are priorities. Choose JCC-11100 when tight routing down to 10–200 mm bend radius is needed at moderate pressures (3.1–13.8 MPa).
JCC-01100 Single-Braided vs. JCC-01200 Double-Braided PTFE Hose: For heavy-duty hydraulic circuits requiring two layers of 304 stainless steel braid across 1/4" to 1-1/4" sizes, JINGCHENG also offers the double-braided JCC-01200 series.
Match size and pressure rating: Select from the 8 standard sizes (5/32" to 1" ID, 4 mm to 25.4 mm) and verify that system working pressure remains within the rated MPa for that diameter.
Respect minimum bend radius and alignment: Route the hose with curves at or above the 42–260 mm minimum bend radius and avoid twisting the braid during fitting tightening.

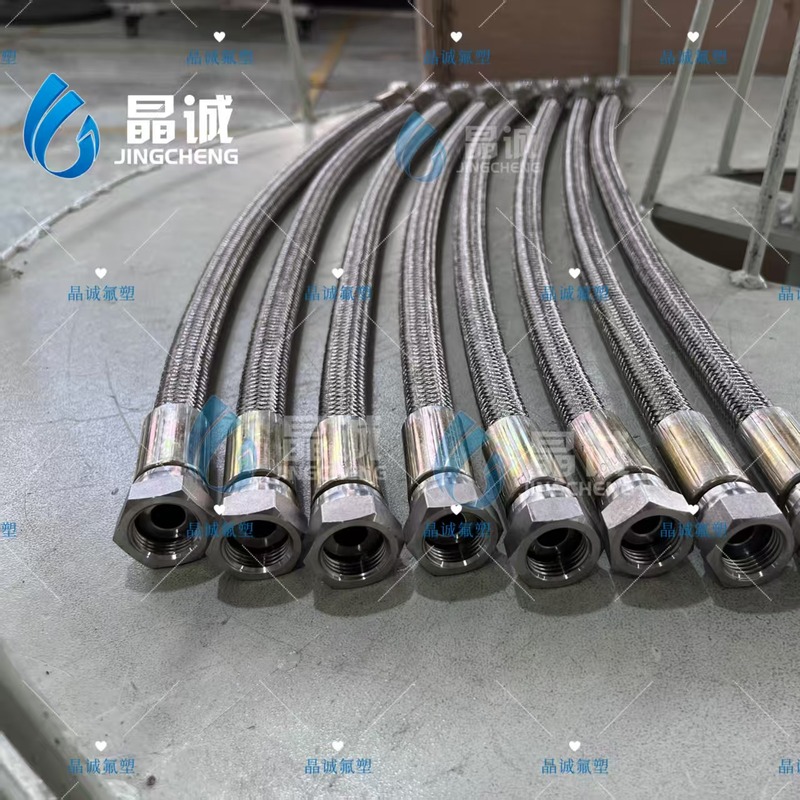

Custom hose and crimped assemblies: JINGCHENG manufactures bulk braided hose coils as well as custom cut-length assemblies with crimped metallic fittings tailored to your thread, flange or coupling drawings. Contact our engineering team with your media, temperature, pressure and connection parameters for a quotation.
