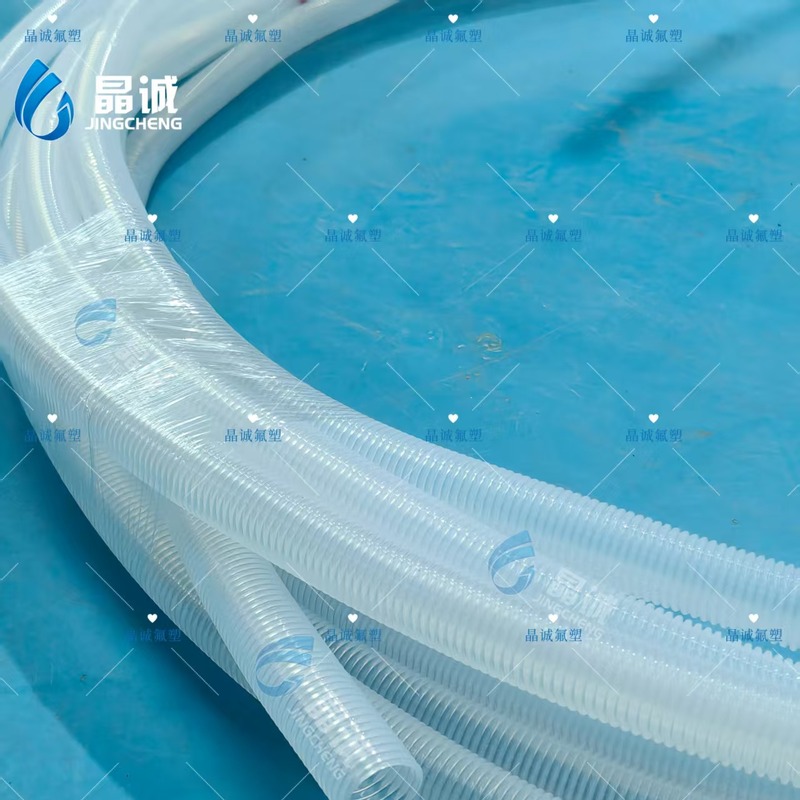

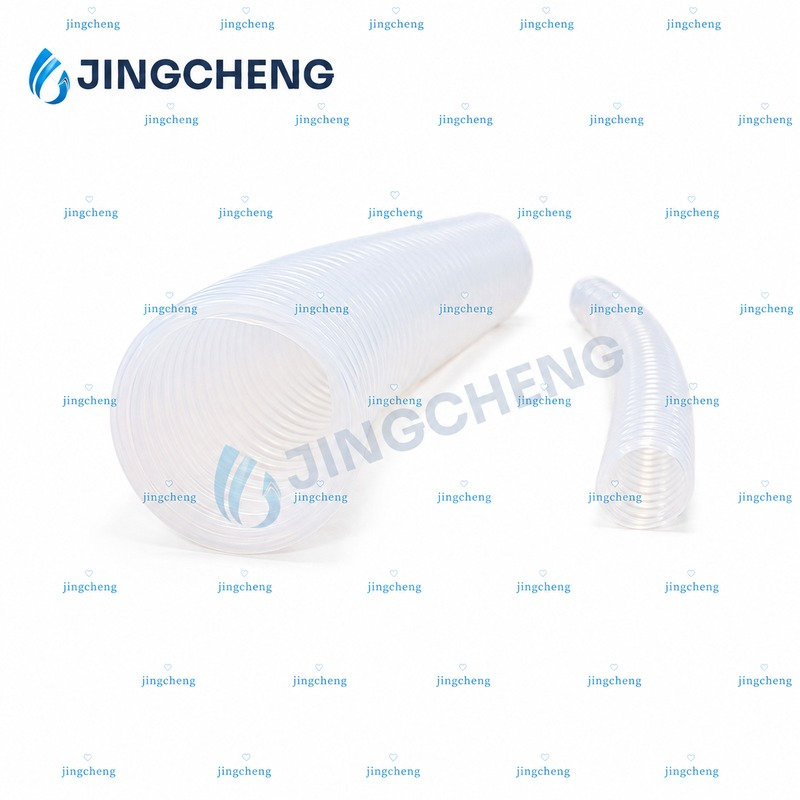

Compact process skids, vibrating pump connections and multi-port manifold stations often leave too little room for rigid or large-radius tubing. Forcing a standard smooth-wall tube around sharp corners can kink the wall, restrict flow and place mechanical stress on end connections. JINGCHENG Inner Spiral Corrugated PTFE Bellows Hose (series JCC-10000-PTFE) is engineered with spiral convolutions on both its inner and outer walls, delivering outstanding bending performance and full PTFE chemical inertness from -70°C to +260°C.
Double-corrugated spiral bellows profile: Both the internal and external walls are formed with continuous helical corrugations, allowing the hose to flex tightly without collapsing and to spring back to shape after repeated movement.
Small minimum bend radius: Bends down to 20 mm (0.79") on the 1/4" size and 80 mm (3.15") on the 1" size—roughly one-sixth to one-eighth the bend radius required by a bare smooth-bore PTFE tube of the same diameter.
Broad thermal range (-70°C to +260°C): Maintains flexibility and structural integrity across cryogenic-adjacent cooling media, ambient chemical transfer and high-temperature cleaning cycles.
Chemically inert PTFE material: Resists aggressive acids, alkalis, oxidizers and organic solvents while keeping a clean, non-stick surface for food, pharmaceutical and chemical media.
Translucent wall for visual flow checks: Natural translucent PTFE construction lets operators monitor liquid flow and verify draining during batch changeovers.
According to the JINGCHENG PTFE hose catalog (JCC-10000-PTFE series), this convoluted PTFE hose is built for pharmaceutical, food and chemical industry transfer lines, including:
Pharmaceutical process skids: Flexible jumper lines between reactors, receivers, mobile vessels and dosing pumps where tight routing and pure PTFE contact surfaces are needed.
Food and beverage equipment: Low-pressure transfer of liquid ingredients, flavorings, edible oils and cleaning solutions around compact filling and mixing machinery.
Chemical plant loading and manifold connections: Flexible transfer of corrosive acids, alkalis and solvents where vibration isolation or frequent connection changes occur.
Pump inlet/outlet and misaligned piping compensation: Absorbing thermal expansion, equipment vibration and slight offset between rigid pipe runs.
Part No. | Nominal Size | Inner Diameter (mm ±0.3) | Outer Diameter (mm ±0.3) | Working Pressure (psi) | Working Pressure (MPa) | Burst Pressure (psi) | Burst Pressure (MPa) | Min. Bend Radius (inch) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
JCC-10004-PTFE | 1/4" | 6.5 | 10.6 | 60 | 0.4 | 210 | 1.4 | 0.79 | 20 |
JCC-10008-PTFE | 5/16" | 8 | 12.3 | 60 | 0.4 | 210 | 1.4 | 0.87 | 22 |
JCC-10010-PTFE | 3/8" | 10 | 15 | 60 | 0.4 | 210 | 1.4 | 1.02 | 26 |
JCC-10013-PTFE | 1/2" | 13 | 17.9 | 60 | 0.4 | 210 | 1.4 | 1.02 | 26 |
JCC-10016-PTFE | 5/8" | 16 | 21.9 | 45 | 0.3 | 180 | 1.2 | 1.26 | 32 |
JCC-10019-PTFE | 3/4" | 19 | 26.4 | 45 | 0.3 | 180 | 1.2 | 2.17 | 55 |
JCC-10025-PTFE | 1" | 25 | 35 | 45 | 0.3 | 150 | 1 | 3.15 | 80 |
JCC-10032-PTFE | 1-1/4" | 32 | 39 | 38 | 0.3 | 135 | 0.9 | 3.94 | 100 |
JCC-10038-PTFE | 1-1/2" | 38 | 45 | 38 | 0.3 | 135 | 0.9 | 3.94 | 100 |
JCC-10050-PTFE | 2" | 50 | 59.5 | 30 | 0.2 | 120 | 0.8 | 4.92 | 125 |
Data source: JINGCHENG PTFE Hose Catalog (JCC-10000-PTFE Series). Operating temperature range: -70°C to +260°C. All specifications can be customized according to customer parameters.
JCC-10000 Bare Convoluted Hose vs. JCC-00000 Smooth Bore Tube: JCC-10000 is engineered for tight routing (20–125 mm bend radius vs. 60–1200 mm) at low working pressures (0.2–0.4 MPa). Use JCC-00000 when straight runs and a completely smooth bore are prioritized.
JCC-10000 Bare Convoluted Hose vs. JCC-20000 Spring-Reinforced Smooth-ID Convoluted Hose: If your process requires a smooth inner bore alongside tight bending and higher working pressure (1.2–2.64 MPa), choose JCC-20000 with 304 stainless steel spiral spring reinforcement.
JCC-10000 Bare Convoluted Hose vs. JCC-11100 Stainless Steel Braided Convoluted Hose: When the application demands both a convoluted PTFE core and elevated pressure resistance (3.1–13.8 MPa), JCC-11100 adds an external 304 stainless steel wire braid.
Check pressure and temperature limits: Designed for low-pressure transfer (0.2–0.4 MPa working pressure; 0.8–1.4 MPa burst pressure) within -70°C to +260°C.
Route without axial twisting: Align fittings before tightening so the spiral convolutions are not subjected to torsional stress, and maintain bends at or above the minimum bend radius listed for each diameter.
End cuffs and assemblies: JINGCHENG can supply bare convoluted hose in coils or cut lengths, or customize smooth end cuffs and fitting assemblies (flanged, sanitary clamp or threaded) to your drawings. Contact us with your size, length and media details for a fast quotation.
