Hydraulic and fluid-power circuits rarely carry just one type of medium. The same machine may move compressed gas, mineral or synthetic oil, water-glycol fluids and process chemicals, often at high pressure and changing temperature. Rubber hydraulic hose is limited by media compatibility and heat. JINGCHENG's Double-Layer PTFE Braided Hose (series JCC-01200-PTFE) solves this. A smooth PTFE inner tube is covered with two layers of high-strength 304 stainless steel braid, giving the pressure capacity of a hydraulic hose with the chemical resistance of PTFE from -70°C to +260°C.
In hydraulic and pneumatic transmission, the hose must hold pressure continuously while staying compatible with the medium. Common failure modes include:
Pressure overload: single-layer reinforcement may not leave enough safety margin for high-pressure hydraulic circuits
Media incompatibility: phosphate-ester fluids, fuels, solvents and chemicals swell or degrade rubber inner tubes
Heat ageing: hot hydraulic oil and process fluids harden and crack elastomers over time
Contamination: inner tube breakdown releases particles that damage valves, pumps and cylinders
A double-layer braided PTFE hose keeps the clean, inert bore of PTFE while two stainless steel braids provide the strength needed for hydraulic transmission.

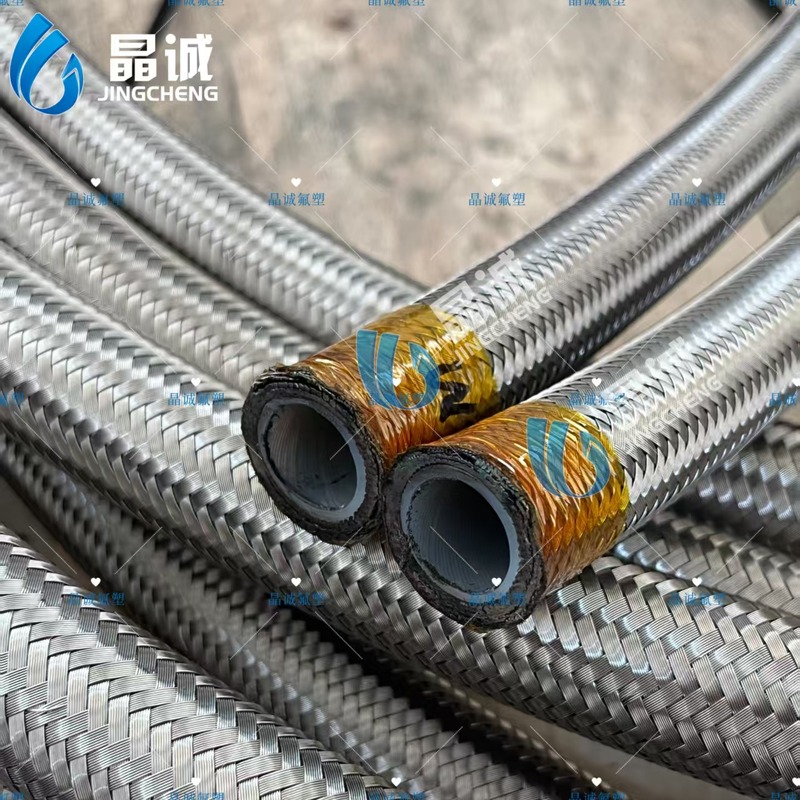

The JCC-01200-PTFE hose has a smooth PTFE (Teflon) inner tube covered with two layers of high-strength 304 stainless steel wire braid as the reinforcement layer. The smooth bore gives low friction, stable flow and easy cleaning. The two braid layers share the pressure load, so the hose keeps a high working pressure and good resistance to expansion and pulsation. Eight catalog sizes cover 1/4" to 1-1/4" ID.
Temperature range: -70°C to +260°C
High working pressure: up to 40 MPa (1/4" size), depending on diameter
High burst pressure: up to 120.9 MPa (1/4" size)
Smooth PTFE bore: chemically inert, non-stick and non-ageing
Two layers of 304 stainless steel braid: corrosion-resistant double reinforcement
Certifications listed for this series: ISO 9001:2015, US FDA 21 CFR 177.1550 and SGS
The catalog lists this hose for the hydraulic transmission of gas-based fluids, oil-based fluids, water-based fluids and chemical materials. Typical uses include:
Oil-based hydraulic circuits: pressure and return lines on presses, machine tools, injection molding machines and mobile equipment
Gas-based transmission: compressed air, nitrogen and process gas lines that need pressure strength and clean bores
Water-based fluids: water-glycol and other water-based hydraulic media and cooling circuits
Chemical materials: high-pressure transfer of acids, alkalis, solvents and other aggressive chemicals
Test benches and process skids: lines that must handle different media and frequent cleaning
Two layers of reinforcement. Double 304 stainless steel braid gives high working pressure; the 1/4" size is rated at 40 MPa working / 120.9 MPa burst.
One hose for many media. PTFE handles gas-based, oil-based and water-based fluids as well as chemical materials.
Clean, smooth bore. Low friction and no inner tube breakdown help protect valves, pumps and actuators.
Wide temperature window. From -70°C to +260°C for cold starts and hot hydraulic or process fluids.
Corrosion-resistant exterior. 304 stainless steel braid stands up to humid, outdoor and plant environments.
Eight standard sizes. From 1/4" to 1-1/4" ID, with production to customer parameters on request.
Part No. | Size | ID (mm ±0.2) | Tube OD (mm ±0.2) | Braided OD (mm ±0.2) | WP (MPa) | Burst (MPa) | Min Bend (inch) | Min Bend (mm) |
|---|---|---|---|---|---|---|---|---|
JCC-01206-PTFE | 1/4" | 6.3 | 8.3 | 10.6 | 40 | 120.9 | 3.27 | 83 |
JCC-01208-PTFE | 5/16" | 7.9 | 10.3 | 12.8 | 35 | 105 | 3.27 | 83 |
JCC-01210-PTFE | 3/8" | 9.5 | 11.9 | 15 | 32 | 96.9 | 4.13 | 105 |
JCC-01213-PTFE | 1/2" | 12.6 | 15 | 18.3 | 27 | 79.8 | 5.51 | 140 |
JCC-01216-PTFE | 5/8" | 16.3 | 20.3 | 22 | 21 | 62.7 | 6.93 | 176 |
JCC-01219-PTFE | 3/4" | 19.5 | 23.5 | 26.4 | 20 | 58.5 | 8.27 | 210 |
JCC-01225-PTFE | 1" | 25 | 29 | 32.6 | 17 | 51.6 | 11.22 | 285 |
JCC-01232-PTFE | 1-1/4" | 31.5 | 35.5 | 39.5 | 14 | 42 | 13.39 | 340 |
Temperature range: -70°C to +260°C. Custom parameters available on request.
A single-layer braided PTFE hose is lighter and more compact. The second stainless steel braid of the double-layer hose adds pressure capacity and resistance to pulsation, which suits hydraulic transmission and other continuously pressurized circuits.
Rubber hydraulic hose is widely used, but its inner tube must be matched to the fluid and it ages with heat. PTFE is compatible with gas-based, oil-based and water-based fluids and most chemicals, and it stays stable up to +260°C.
Both are designed for demanding pressure service. The double-layer braided hose offers a wide size range from 1/4" to 1-1/4" with a smooth, flexible braid construction; a spiral wound hose uses steel wire winding under the braid. Choose the construction that matches your pressure, size and routing requirements.
Pressure: keep system pressure, including pressure peaks, within the working pressure for the selected size; larger sizes have lower ratings.
Bend radius: route the hose so that bends do not go below the minimum bend radius listed above.
Temperature: confirm that fluid and ambient temperatures stay within -70°C to +260°C.
Media: PTFE is compatible with most hydraulic fluids, gases and chemicals. Send us your media list for confirmation in critical services.
Connection: tell us your fitting type (JIC, NPT, BSP, metric, flange or swage) so we can recommend the right end design.
JINGCHENG can produce the hose to customer parameters: special diameters, cut lengths, end fittings, protective sleeves and packaging for hydraulic system builders, OEM machine manufacturers and distributors. Send us your drawings or requirements and our engineers will recommend a suitable solution.
Do not twist the hose during installation; align the ends before tightening the fittings.
Respect the minimum bend radius and avoid sharp bends right next to the fittings.
Leave some slack to allow for the small length change that occurs under pressure.
Keep the hose away from moving parts and sharp edges, or add protective sleeves.
Inspect regularly for braid damage, deformation or leakage near the connections, and replace the hose if needed.
JINCHEN ELECTRIC TRACING CO., LTD. (Shenzhen Jingcheng) specializes in fluid-transfer hose solutions, including PTFE inner tube series, braided PTFE hose assemblies and electrically heated hoses. Our double-layer braided PTFE hose is made under an ISO 9001:2015 quality system, with FDA 21 CFR 177.1550 and SGS listed for the series. Eight standard sizes from 1/4" to 1-1/4" and custom production let you source hydraulic PTFE hose for gas, oil, water-based fluids and chemical media from one supplier.
When a hydraulic or fluid-power line must hold high pressure and stay compatible with many different media, the JINGCHENG Double-Layer PTFE Braided Hose is a reliable choice. It combines a smooth PTFE bore, two layers of high-strength 304 stainless steel braid and a temperature range of -70°C to +260°C in sizes from 1/4" to 1-1/4". Contact us today for samples, pricing or a customized size.
