Food, cosmetics, chemical and pharmaceutical delivery lines need a hose that is easy to clean, resists vacuum and still bends around compact equipment. A fully convoluted bore can trap residue; a stiff smooth tube may kink. JINGCHENG's Smooth Bore Convoluted Braided PTFE Hose (series JCC-21100-PTFE) solves this. A smooth PTFE inner wall gives clean flow and easy flushing, a corrugated outer wall reduces bend radius, and a 304 stainless steel braid adds strength for service from -70°C to +260°C.
In hygienic and chemical delivery, the hose must balance cleanliness, flexibility and pressure or vacuum capability. Common issues with ordinary options include:
Hard to clean: fully convoluted inner walls can hold product residue between batches
Vacuum collapse: soft-wall hoses flatten under suction
Tight routing needs: smooth bore tubes demand large bend radii and may kink
Chemical and temperature limits: rubber and PVC cannot cover aggressive media or hot CIP cycles
A smooth-inner / corrugated-outer PTFE hose with stainless steel braid addresses cleanliness, vacuum resistance and flexibility together.

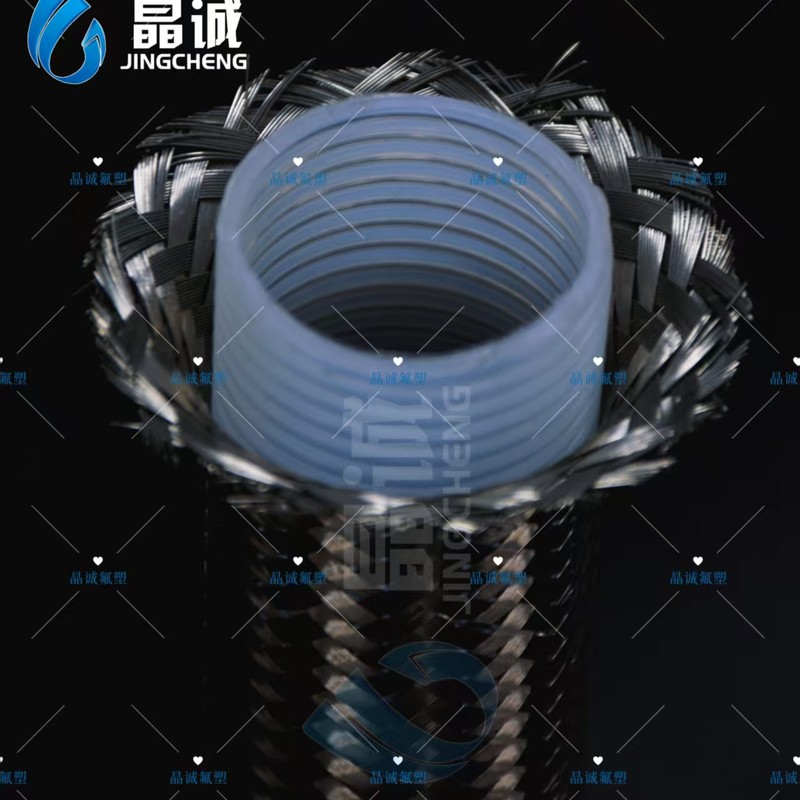

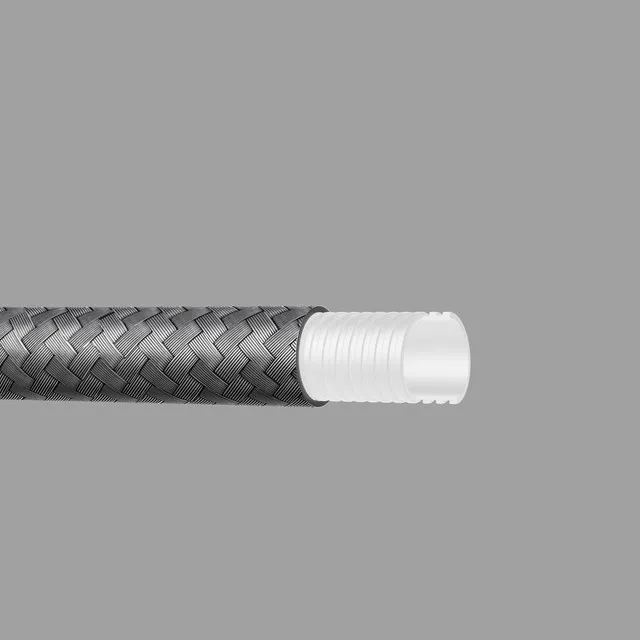

The JCC-21100-PTFE hose has a smooth PTFE inner wall, a corrugated PTFE outer wall and one layer of 304 stainless steel braid. The smooth bore supports high flow, low residue and easy cleaning. The outer convolutions improve bending. The braid reinforces the hose for pressure and vacuum-resistant service. Eight catalog sizes cover 1/4" to 1-1/4" ID.
Temperature range: -70°C to +260°C
Vacuum-resistant and easy to clean: smooth inner wall with braided reinforcement
Small bend radius: from 19 mm (1/4" and 5/16") upward depending on size
Chemically inert PTFE: resists nearly all food, cosmetic, chemical and pharmaceutical media
Certifications listed for this series: ISO 9001:2015, US FDA 21 CFR 177.1550 and SGS
The catalog lists this hose for food, cosmetics, chemical and pharmaceutical delivery. Typical uses include:
Food and beverage: transfer of ingredients, syrups, oils, dairy and cleaning agents where a smooth bore aids CIP
Cosmetics and personal care: delivery of creams, lotions, alcohols and fragrances with low residue
Chemical delivery: transfer of acids, alkalis and solvents with vacuum or pressure cycles
Pharmaceutical delivery: flexible connections on filling, dosing and transfer equipment
Equipment connections: pump suction and discharge lines that need both cleanability and tight routing
Smooth, cleanable bore. Residue is easier to flush than in a fully convoluted tube, which suits food, cosmetics and pharma.
Vacuum-resistant. Smooth inner wall plus braid help the hose hold shape under suction.
Small bend radius. Outer convolutions allow tighter routing than a plain smooth bore tube of similar size.
Universal chemical resistance. PTFE handles a broad range of process and cleaning chemicals.
Wide temperature window. From -70°C to +260°C for cold product and hot cleaning or sterilizing cycles.
Eight standard sizes. From 1/4" to 1-1/4" ID, with production to customer parameters on request.
Part No. | Size | ID (mm) | OD (mm) | Braided OD (mm) | WP psi | WP MPa | Burst psi | Burst MPa | Bend inch | Bend mm |
|---|---|---|---|---|---|---|---|---|---|---|
JCC-21106-PTFE | 1/4" | 6.8 | 8.35 | 9.6 | 1276 | 8.8 | 5104 | 35.2 | 0.75 | 19 |
JCC-21108-PTFE | 5/16" | 7.9 | 10.3 | 10.6 | 1218 | 8.4 | 4872 | 33.6 | 0.75 | 19 |
JCC-21110-PTFE | 3/8" | 10 | 11.93 | 13.5 | 1305 | 9 | 5220 | 36 | 0.98 | 25 |
JCC-21113-PTFE | 1/2" | 13.6 | 15.1 | 17.5 | 870 | 6 | 3480 | 24 | 1.50 | 38 |
JCC-21116-PTFE | 5/8" | 16.7 | 18.3 | 21.4 | 725 | 5 | 2900 | 20 | 1.97 | 50 |
JCC-21119-PTFE | 3/4" | 19.8 | 22 | 24.2 | 609 | 4.2 | 2436 | 16.8 | 2.48 | 63 |
JCC-21125-PTFE | 1" | 26.4 | 29.4 | 31.7 | 580 | 4 | 2320 | 16 | 2.95 | 75 |
JCC-21132-PTFE | 1-1/4" | 31.75 | 35.5 | 37 | 362.5 | 2.5 | 1450 | 10 | 3.15 | 80 |
Temperature range: -70°C to +260°C. Custom parameters available on request.
Fully convoluted hose bends even more tightly but the corrugated bore can hold residue. Smooth bore convoluted hose is preferred when cleanability and vacuum performance matter as much as flexibility.
A plain smooth bore braided hose has the cleanest bore and often higher pressure ratings, but a larger bend radius. Choose the convoluted outer design when the installation needs tighter bends without giving up a smooth product contact surface.
Rubber and PVC are flexible but limited in chemistry and temperature. Smooth bore convoluted braided PTFE hose covers food, cosmetics, chemical and pharmaceutical media up to +260°C with better cleanability.
Pressure and vacuum: keep the operating pressure within the working pressure for the selected size; use the braided construction for suction service.
Bend radius: route the hose so that bends do not go below the minimum bend radius listed above.
Temperature: confirm that the process, including CIP or sterilizing cycles, stays within -70°C to +260°C.
Media: PTFE is compatible with most chemicals. Send us your media list for confirmation in critical services.
Connection: tell us your fitting type (sanitary clamp, flange, thread or hose barb) so we can recommend the right end design.
JINGCHENG can produce the hose to customer parameters: special diameters, cut lengths, braid coverage, end fittings and packaging for OEM equipment builders and distributors. Send us your drawings or requirements and our engineers will recommend a suitable solution.
Do not twist the hose during installation; align the ends before tightening the fittings.
Respect the minimum bend radius and avoid sharp bends right next to the fittings.
Support long horizontal runs so the hose does not sag or rub against equipment.
Flush the hose between incompatible media and after each batch in hygienic service.
Inspect regularly for braid damage, deformation or leakage near the connections, and replace the hose if needed.
JINCHEN ELECTRIC TRACING CO., LTD. (Shenzhen Jingcheng) specializes in fluid-transfer hose solutions, including PTFE inner tube series, braided PTFE hose assemblies and electrically heated hoses. Our smooth bore convoluted braided PTFE hose is made under an ISO 9001:2015 quality system, with FDA 21 CFR 177.1550 and SGS listed for the series. Eight standard sizes from 1/4" to 1-1/4" and custom production let you source cleanable braided PTFE hose for food, cosmetics, chemical and pharmaceutical delivery from one supplier.
When a delivery line must be easy to clean, vacuum-capable and still flexible, the JINGCHENG Smooth Bore Convoluted Braided PTFE Hose is a reliable choice. It combines a smooth PTFE bore, corrugated outer wall, 304 stainless steel braid and a temperature range of -70°C to +260°C in sizes from 1/4" to 1-1/4". Contact us today for samples, pricing or a customized size.
