Pharmaceutical, food and chemical transfer lines often need a hose that bends tightly around equipment while still resisting aggressive media and holding pressure. A smooth bore hose may kink or demand a large bend radius. JINGCHENG's Inner Spiral Convoluted Braided PTFE Hose (series JCC-11100-PTFE) solves this. Corrugated PTFE inner and outer walls give outstanding flexibility, and a 304 stainless steel braid adds strength for process transfer from -70°C to +200°C.
In hygienic and chemical plants, routing space is limited and media are demanding. Typical problems with ordinary hoses include:
Large bend radius: smooth bore tubes cannot turn tightly without kinking
Pressure and vacuum limits: bare convoluted hose may not hold the required working pressure
Chemical and hygiene risk: rubber and PVC can swell, release extractables or trap residue in the bore
Short flex life: repeated bending and reconnection wear out soft-wall hoses
A helical convoluted PTFE hose with stainless steel braid keeps PTFE purity and adds both flexibility and mechanical reinforcement.

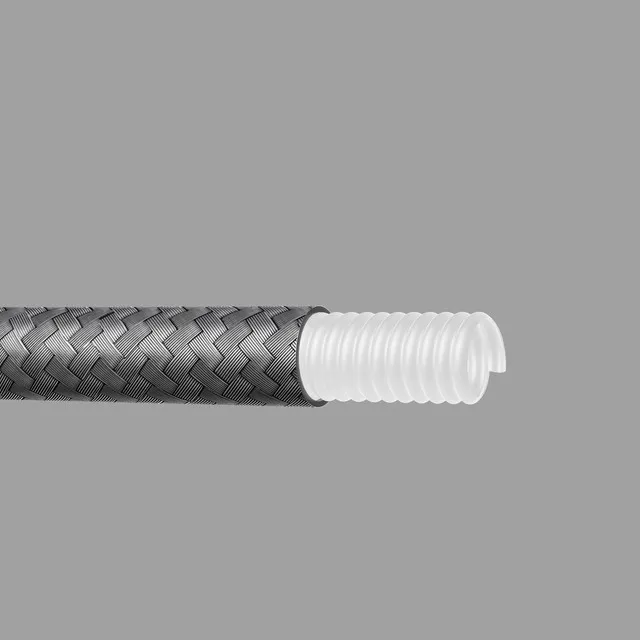

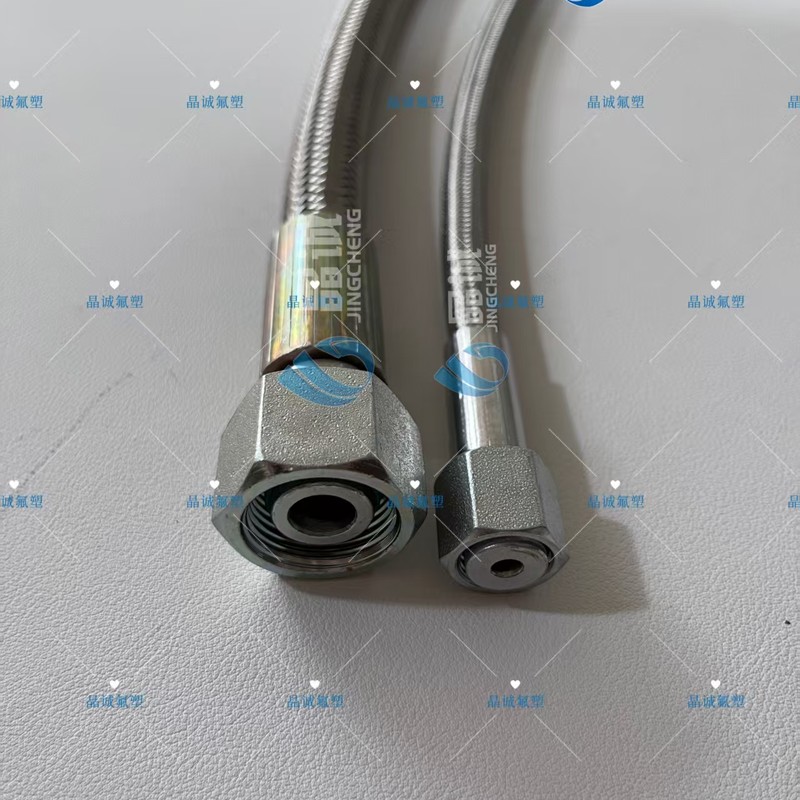

The JCC-11100-PTFE hose has corrugated PTFE walls on both the inside and the outside, with a helical (spiral) convolution pattern, plus one layer of 304 stainless steel braid. The convolutions act like a flexible bellows for a very small bend radius. The braid raises working and burst pressure so the hose can serve pharmaceutical, food and chemical transfer. Ten catalog sizes cover 1/4" to 2" ID.
Temperature range: -70°C to +200°C
Small bend radius: from only 10 mm (1/4") to 200 mm (2")
304 stainless steel braid: reinforces the hose for higher working pressure
Chemically inert PTFE: resists nearly all process chemicals and solvents
Certifications listed for this series: ISO 9001:2015, US FDA 21 CFR 177.1550 and SGS
The catalog lists this hose for the pharmaceutical, food and chemical industries. Typical uses include:
Pharmaceutical production: flexible connections on reactors, filling lines, CIP/SIP loops and API transfer
Food and beverage processing: transfer of flavors, syrups, oils, alcohols and cleaning agents on compact skids
Chemical processing: flexible loading, unloading and transfer of acids, alkalis and solvents
Equipment connections: pump inlets and outlets, vibration isolation and moving or misaligned joints
Pilot plants and R&D: flexible lines that are reconfigured often
Very small bend radius. Helical convolutions allow tight routing; for example, the 1/4" size bends to 10 mm.
Braided strength. 304 stainless steel braid raises working pressure well above bare convoluted hose.
Universal chemical resistance. One hose handles a broad range of acids, alkalis, oxidizers and solvents.
Hygienic PTFE surface. Non-stick PTFE suits pharmaceutical and food transfer where purity matters.
Wide temperature window. From -70°C to +200°C for cold product and warm process or cleaning cycles.
Ten standard sizes. Inner diameters from 1/4" to 2", with production to customer parameters on request.
Part No. | Size | ID (mm ±0.3) | OD (mm ±0.3) | Braided OD (mm ±0.2) | WP psi | WP MPa | Burst psi | Burst MPa | Bend inch | Bend mm |
|---|---|---|---|---|---|---|---|---|---|---|
JCC-11104-PTFE | 1/4" | 5.8 | 8.3 | 10.3 | 2001.0 | 13.8 | 8004.0 | 55.2 | 0.39 | 10 |
JCC-11108-PTFE | 5/16" | 7.8 | 10.3 | 12.5 | 1957.5 | 13.5 | 7830.0 | 54 | 0.59 | 15 |
JCC-11110-PTFE | 3/8" | 9.6 | 12.1 | 14.1 | 1631.3 | 11.3 | 6525.0 | 45 | 0.79 | 20 |
JCC-11113-PTFE | 1/2" | 12.5 | 13.5 | 17.5 | 1540.6 | 10.6 | 6162.5 | 42.5 | 0.98 | 25 |
JCC-11116-PTFE | 5/8" | 15.7 | 19.9 | 22.5 | 1395.6 | 9.6 | 5582.5 | 38.5 | 1.18 | 30 |
JCC-11119-PTFE | 3/4" | 19.9 | 23 | 25.5 | 1141.9 | 7.9 | 4567.5 | 31.5 | 2.36 | 60 |
JCC-11125-PTFE | 1" | 24.8 | 35.7 | 37.5 | 725.0 | 5.0 | 2900.0 | 20 | 3.35 | 85 |
JCC-11132-PTFE | 1-1/4" | 32 | 42 | 45 | 598.1 | 4.1 | 2392.5 | 16.5 | 3.94 | 100 |
JCC-11138-PTFE | 1-1/2" | 38 | 48 | 50.5 | 525.6 | 3.6 | 2102.5 | 14.5 | 6.10 | 155 |
JCC-11150-PTFE | 2" | 50 | 60 | 63 | 453.1 | 3.1 | 1812.5 | 12.5 | 7.87 | 200 |
Temperature range: -70°C to +200°C. Custom parameters available on request.
Bare convoluted hose is very flexible but limited in pressure. Adding a 304 stainless steel braid raises working and burst pressure for process transfer while keeping the small bend radius.
Smooth bore braided hose offers the cleanest bore and often higher pressure ratings, but needs a larger bend radius. Helical convoluted braided hose is the better choice when the route has tight bends or frequent flexing.
Rubber and PVC are easy to route but have narrow chemical and temperature limits. Helical convoluted braided PTFE hose combines tight bending with PTFE chemical resistance up to +200°C.
Pressure: keep the operating pressure within the working pressure for the selected size; larger sizes have lower ratings.
Bend radius: route the hose so that bends do not go below the minimum bend radius listed above.
Temperature: confirm that the process, including cleaning cycles, stays within -70°C to +200°C.
Media: PTFE is compatible with most chemicals. Send us your media list for confirmation in critical services.
Connection: tell us your fitting type (sanitary clamp, flange, thread or hose barb) so we can recommend the right end design.
JINGCHENG can produce the hose to customer parameters: special diameters, cut lengths, braid coverage, end fittings and packaging for OEM equipment builders and distributors. Send us your drawings or requirements and our engineers will recommend a suitable solution.
Do not twist the hose during installation; align the ends before tightening the fittings.
Respect the minimum bend radius and avoid sharp bends right next to the fittings.
Support long horizontal runs so the hose does not sag or rub against equipment.
Flush the hose between incompatible media and after each batch in hygienic service.
Inspect regularly for braid damage, deformation or leakage near the connections, and replace the hose if needed.
