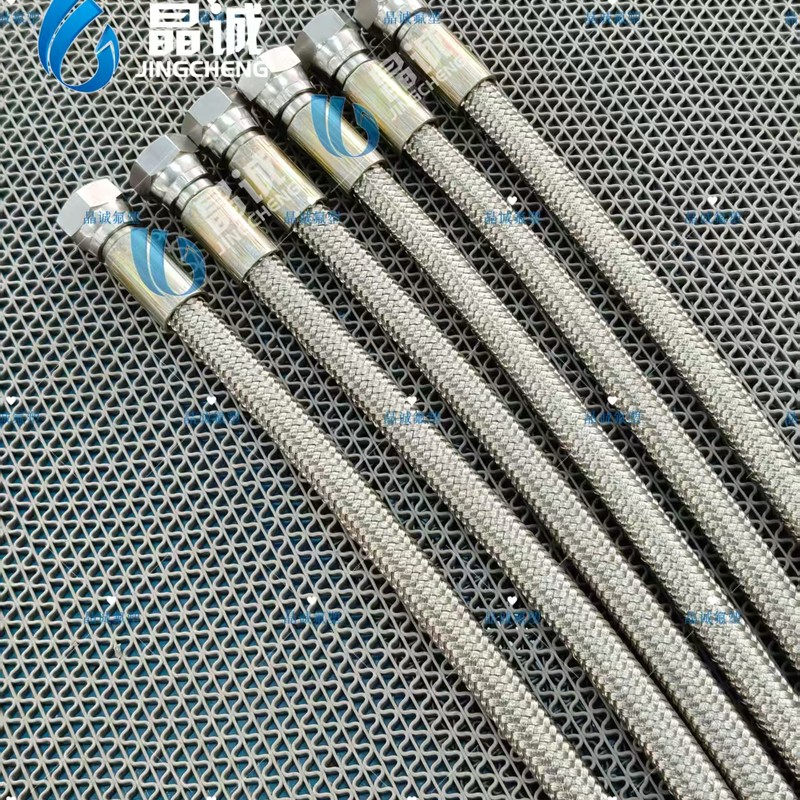

High-pressure fluid lines in machinery, automotive and chemical plants demand a hose that will not swell, crack or burst under load. Ordinary rubber and thermoplastic hoses lose strength at elevated temperature and attack by solvents. JINGCHENG's Single-Layer PTFE High-Pressure Braided Hose (series JCC-01100-PTFE) solves this. A smooth PTFE inner tube is reinforced with one layer of high-strength 304 stainless steel braid, delivering chemical inertness and high working pressure from -70°C to +260°C.
In industrial and mobile equipment, the hose is often the most stressed part of a fluid system. Common failure modes include:
Pressure burst: soft-wall hoses cannot hold the working pressure of hydraulic, fuel or chemical transfer lines
Chemical attack: acids, alkalis and solvents degrade rubber and many plastics
Temperature extremes: cold start and hot process fluids exceed the limits of ordinary hose materials
Contamination and adhesion: rough or porous bores trap residue and restrict flow
A smooth bore PTFE hose with stainless steel braid keeps the purity and chemical resistance of PTFE while adding the mechanical strength needed for high-pressure service.

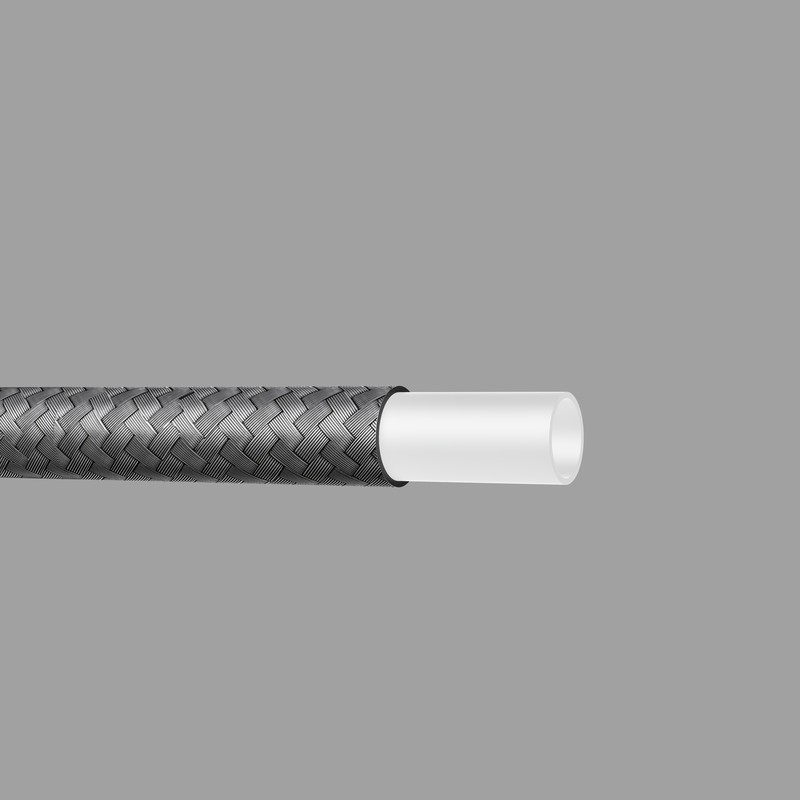

The JCC-01100-PTFE hose has a smooth PTFE (Teflon) inner tube and one layer of high-strength 304 stainless steel wire braid on the outside. The smooth bore gives low friction, easy cleaning and stable flow. The braid carries the hoop stress so the hose can work at high pressure without expanding or bursting. Eight catalog sizes cover 5/32" to 1" ID.
Temperature range: -70°C to +260°C
High working pressure: up to 42 MPa (1/4" size), depending on diameter
Smooth PTFE bore: chemically inert, non-stick and easy to flush
304 stainless steel braid: corrosion-resistant reinforcement for long service life
Certifications listed for this series: ISO 9001:2015, US FDA 21 CFR 177.1550 and SGS
The catalog lists this hose for machinery, electronic and electrical equipment, automotive, medical, aerospace, chemical, computer, energy, military and telecom. Typical uses include:
Machinery and industrial equipment: high-pressure oil, fuel and chemical transfer lines on process machines and skids
Automotive and mobile equipment: fuel, brake fluid, power steering and coolant lines that need PTFE compatibility and braid strength
Chemical processing: transfer of aggressive acids, alkalis and solvents at elevated pressure
Electronics, energy and telecom: clean fluid and gas lines in production and test equipment
Medical, aerospace and military: where chemical purity, wide temperature range and reliable pressure rating are required
High pressure capacity. Stainless steel braid raises working pressure far above bare PTFE tube; for example, the 1/4" size is rated at 42 MPa working / 126.9 MPa burst.
Smooth, clean bore. Low adhesion and easy flushing suit chemical and hygienic transfer.
Universal chemical resistance. PTFE handles nearly all industrial chemicals and solvents.
Wide temperature window. From -70°C to +260°C for cold media and hot process or cleaning cycles.
Durable reinforcement. 304 stainless steel braid resists corrosion and abrasion in outdoor and plant environments.
Eight standard sizes. From 5/32" to 1" ID, with production to customer parameters on request.
Part No. | Size | ID (mm ±0.2) | Tube OD (mm ±0.2) | Braided OD (mm ±0.2) | WP (MPa) | Burst (MPa) | Min Bend (inch) | Min Bend (mm) |
|---|---|---|---|---|---|---|---|---|
JCC-01104-PTFE | 5/32" | 4 | 6 | 7 | 27 | 82 | 1.65 | 42 |
JCC-01106-PTFE | 1/4" | 6.35 | 8.35 | 9.6 | 42 | 126.9 | 2.95 | 75 |
JCC-01108-PTFE | 5/16" | 8 | 10.4 | 11.7 | 19 | 57.9 | 3.23 | 82 |
JCC-01110-PTFE | 3/8" | 9.7 | 12.1 | 13.6 | 23 | 70.2 | 3.94 | 100 |
JCC-01113-PTFE | 1/2" | 12.7 | 15.1 | 16.7 | 23 | 68 | 4.92 | 125 |
JCC-01116-PTFE | 5/8" | 15.9 | 18.3 | 19.6 | 18 | 53.8 | 6.30 | 160 |
JCC-01119-PTFE | 3/4" | 19 | 22 | 23.8 | 15 | 44.8 | 7.68 | 195 |
JCC-01125-PTFE | 1" | 25.4 | 29.4 | 31 | 10 | 31 | 10.24 | 260 |
Temperature range: -70°C to +260°C. Custom parameters available on request.
A bare PTFE tube is clean and chemically inert but has limited pressure capacity. Adding a 304 stainless steel braid raises working and burst pressure so the hose can serve high-pressure machinery, automotive and chemical lines.
Rubber and thermoplastic hoses are flexible, but their chemical and temperature limits are narrow and they may swell or soften under solvents. Braided PTFE hose keeps dimensional stability and chemical resistance up to +260°C.
Smooth bore braided hose gives the cleanest flow path and typically higher pressure ratings. Convoluted braided hose offers a smaller bend radius. Choose smooth bore when pressure, flow and cleanability come first; choose convoluted when the route has very tight bends.
Pressure: keep the operating pressure within the working pressure for the selected size; larger sizes have lower ratings.
Bend radius: route the hose so that bends do not go below the minimum bend radius listed above.
Temperature: confirm that the process, including cleaning cycles, stays within -70°C to +260°C.
Media: PTFE is compatible with most chemicals. Send us your media list for confirmation in critical services.
Connection: tell us your fitting type (thread, flange, hose barb or swage) so we can recommend the right end design.
JINGCHENG can produce the hose to customer parameters: special diameters, cut lengths, braid coverage, end fittings and packaging for OEM equipment builders and distributors. Send us your drawings or requirements and our engineers will recommend a suitable solution.
Do not twist the hose during installation; align the ends before tightening the fittings.
Respect the minimum bend radius and avoid sharp bends right next to the fittings.
Support long horizontal runs so the hose does not sag or rub against equipment.
Protect the braid from continuous abrasion against sharp edges.
Inspect regularly for braid damage, deformation or leakage near the connections, and replace the hose if needed.
JINCHEN ELECTRIC TRACING CO., LTD. (Shenzhen Jingcheng) specializes in fluid-transfer hose solutions, including PTFE inner tube series, braided PTFE hose assemblies and electrically heated hoses. Our single-layer braided smooth bore PTFE hose is made under an ISO 9001:2015 quality system, with FDA 21 CFR 177.1550 and SGS listed for the series. Eight standard sizes from 5/32" to 1" and custom production let you source high-pressure PTFE hose for machinery, automotive and chemical lines from one supplier.
When a fluid line must hold high pressure and stay chemically inert across a wide temperature range, the JINGCHENG Single-Layer PTFE High-Pressure Braided Hose is a reliable choice. It combines a smooth PTFE bore, 304 stainless steel braid and a temperature range of -70°C to +260°C in sizes from 5/32" to 1". Contact us today for samples, pricing or a customized size.
