Fuel, coolant, lubricant and hydraulic lines in vehicles, aircraft and spacecraft have to meet two demands that often pull in opposite directions: high pressure capability and low weight. Heavy metal reinforcement adds mass, while rubber hose struggles with aggressive fuels, solvents and wide temperature swings. JINGCHENG's PTFE Aramid Braided Lightweight Hose (series JCC-04100-PTFE) answers both. A PTFE (Teflon) straight inner tube is reinforced with an outer aramid woven braid, giving a light, flexible hose with excellent anti-static performance, high pressure ratings and a working temperature range of -65°C to +220°C.
In transportation, aerospace and mobile hydraulic equipment, every hose run adds weight and must survive harsh service. Typical problems with conventional hose include:
Excess weight: heavy reinforcement adds mass to vehicles, aircraft and rocket systems where every gram counts
Chemical attack: fuels, strong acids, strong alkalis and organic solvents swell, crack or leach ordinary rubber and plastics
Static build-up: flowing fuels and solvents can generate electrostatic charge inside insulating hose
Temperature extremes: cold starts, high-altitude conditions and hot engine bays push standard hose beyond its limits
An aramid braided PTFE hose combines the chemical inertness of PTFE with a strong, lightweight aramid fiber reinforcement designed for demanding, weight-sensitive fluid lines.

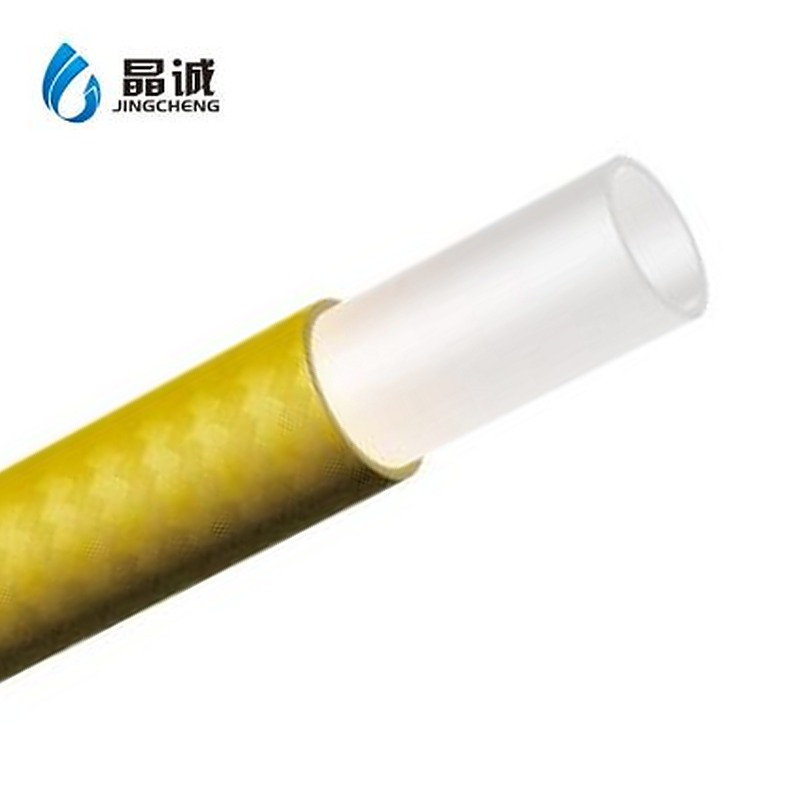

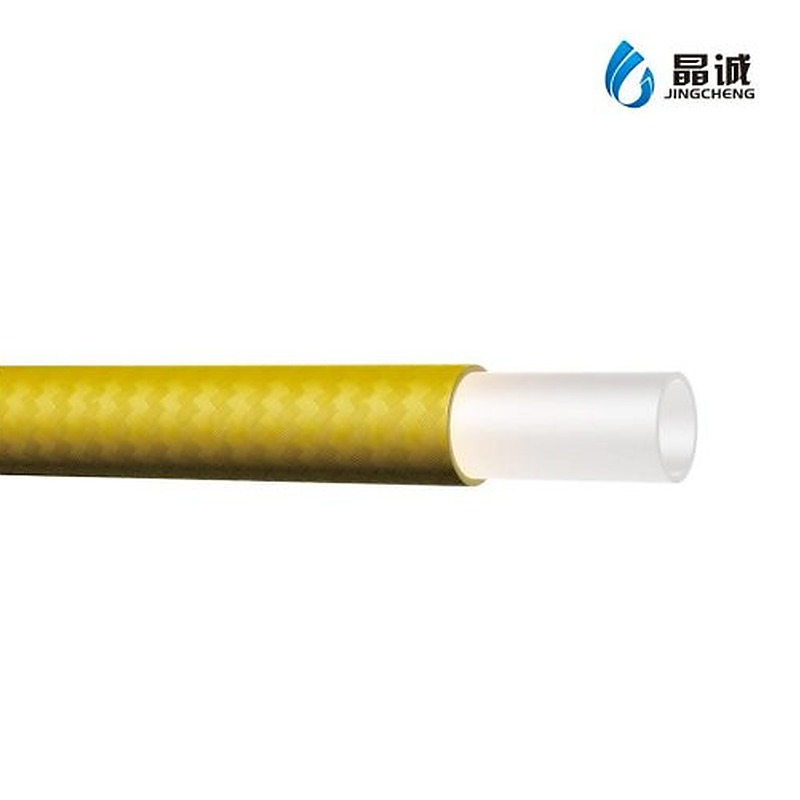

The JCC-04100-PTFE hose has a simple, efficient two-layer construction. The inner layer is a PTFE (Teflon) straight tube that provides a smooth, low-friction, non-stick flow path and resists nearly all industrial chemicals. The outer layer is an aramid woven braid that reinforces the tube against internal pressure while keeping the hose light and flexible. According to the catalog, the construction offers an excellent anti-static effect. Five catalog sizes cover 3/8" to 1" ID.
Temperature range: -65°C to +220°C
High working pressure: up to 40.0 MPa (5800 psi) on the 3/8" size, depending on diameter
High burst pressure: up to 160 MPa (23200 psi) on the 3/8" size
Aramid woven outer braid: strong, lightweight fiber reinforcement
Excellent anti-static effect: helps prevent electrostatic charge accumulation in fuel and solvent service
Smooth PTFE bore: chemically inert, non-stick and easy to flush
Certifications listed for this series: ISO 9001:2015, US FDA 21 CFR 177.1550 and SGS
The catalog lists this hose for various organic solvents and media such as fuel, gas, strong acids and strong alkalis. The PTFE inner tube is inert to almost all chemicals, making the hose suitable for mixed or changing media.
The JCC-04100-PTFE hose is designed for the transmission of hazardous chemicals and for fluid lines on high-performance equipment. Typical uses include:
Hazardous chemical transmission: transfer lines for corrosive, toxic or flammable chemicals in plants and laboratories
Fuel delivery lines: fuel supply and return lines on engines, generators and test benches
Coolant and lubricant lines: cooling and lubrication circuits on engines, gearboxes and machinery
Hydraulic machinery: pressure lines on hydraulic equipment where weight and chemical resistance matter
Trains, automobiles and ships: fluid lines on rail vehicles, motorsport and passenger cars, and marine engines
Aircraft, rockets, spacecraft and satellites: lightweight fuel, propellant-support, coolant and hydraulic pipelines in aerospace systems
Lightweight reinforcement. The aramid woven braid reinforces the PTFE tube without the mass of a metal braid, ideal for vehicles, aircraft and spacecraft.
High pressure for its weight. Working pressure reaches 40.0 MPa on the 3/8" size, and even the 1" size is rated at 24.5 MPa working / 98 MPa burst.
Large safety margin. Catalog burst pressures are four times the working pressures across the whole range (for example 160 MPa burst vs. 40.0 MPa working on 3/8").
Excellent anti-static effect. Suited to fuel, gas and solvent lines where static charge must be controlled.
Broad chemical compatibility. The PTFE bore resists fuels, strong acids, strong alkalis and organic solvents.
Wide temperature window. From -65°C to +220°C for cold-start, high-altitude and hot engine-bay conditions.
Five standard sizes, custom on request. From 3/8" to 1" ID, with production to customer parameters available.
Part No. | Size | ID (mm ±0.2) | Tube OD (mm ±0.2) | Braided OD (mm ±0.2) | WP (psi) | WP (MPa) | Burst (psi) | Burst (MPa) | Min Bend (inch) | Min Bend (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
JCC-04110-PTFE | 3/8" | 10 | 13.1 | 15.6 | 5800 | 40.0 | 23200 | 160 | 3.15 | 80 |
JCC-04113-PTFE | 1/2" | 13 | 16.5 | 18.6 | 5437.5 | 37.5 | 21750 | 150 | 5.91 | 150 |
JCC-04116-PTFE | 5/8" | 16 | 19.4 | 23.2 | 4785 | 33.0 | 19140 | 132 | 7.09 | 180 |
JCC-04119-PTFE | 3/4" | 19 | 23.1 | 26.6 | 4241.3 | 29.25 | 16965 | 117 | 11.81 | 300 |
JCC-04125-PTFE | 1" | 25.4 | 30.5 | 33 | 3552.5 | 24.5 | 14210 | 98 | 15.75 | 400 |
Temperature range: -65°C to +220°C. Custom parameters available on request.
Stainless steel braided PTFE hose offers excellent abrasion and pressure resistance and is a standard choice for industrial machinery. The aramid braided hose replaces the metal braid with a non-metallic aramid woven layer, keeping the hose light and flexible while still delivering working pressures up to 40.0 MPa, which makes it attractive for vehicles, aircraft and spacecraft.
Spiral wound constructions add layers of steel wire for maximum pressure capability. When the priority is low weight with high pressure capability and a good anti-static effect, the aramid braided hose provides a lighter, simpler construction.
Rubber hose is economical, but fuels, solvents and strong chemicals can swell, harden or degrade it over time, and its temperature window is narrower. The PTFE inner tube stays chemically inert from -65°C to +220°C and does not leach into the conveyed media.
Pressure: keep the operating pressure, including surges, within the working pressure of the selected size (from 40.0 MPa on 3/8" to 24.5 MPa on 1").
Bend radius: route the hose so that bends stay above the minimum bend radius, from 80 mm on 3/8" to 400 mm on 1".
Temperature: confirm that the media and the surrounding environment stay within -65°C to +220°C.
Media: PTFE is compatible with fuels, gases, strong acids, strong alkalis and most organic solvents. Send us your media list for confirmation in critical services.
Space and weight: use the braided OD values (15.6 mm to 33 mm) to check clearances in tight engine bays and airframes.
Connection: tell us your fitting type (AN/JIC, thread, quick coupling or swage) so we can recommend the right end design.
JINGCHENG can produce the aramid braided hose to customer parameters: special diameters, cut lengths, hose assemblies with end fittings, protective sleeves and packaging for vehicle builders, aerospace suppliers, hydraulic system integrators and distributors. Send us your drawings or requirements and our engineers will recommend a suitable solution.
Do not twist the hose during installation; align the ends before tightening the fittings.
Respect the minimum bend radius and avoid sharp bends right next to the fittings.
Clamp and support the hose to prevent vibration and chafing against sharp edges or hot surfaces.
Release pressure and drain flammable media safely before disconnecting fuel or chemical lines.
Inspect regularly for braid damage, kinks or leakage near the connections, and replace the hose if needed.
JINCHEN ELECTRIC TRACING CO., LTD. (Shenzhen Jingcheng) specializes in fluid-transfer hose solutions, including PTFE inner tube series, braided PTFE hose assemblies and electrically heated hoses. Our aramid braided lightweight PTFE hose is made under an ISO 9001:2015 quality system, with FDA 21 CFR 177.1550 and SGS listed for the series. Five standard sizes from 3/8" to 1" and custom production let you source lightweight, high-pressure PTFE hose for fuel, chemical, hydraulic and aerospace lines from one supplier.
When a fluid line must be light, pressure-resistant, anti-static and compatible with aggressive media, the JINGCHENG PTFE Aramid Braided Lightweight Hose is a dependable choice. It combines a smooth PTFE straight tube and an aramid woven outer braid with a temperature range of -65°C to +220°C, working pressures up to 40.0 MPa and sizes from 3/8" to 1". Contact us today for samples, pricing or a customized size.
