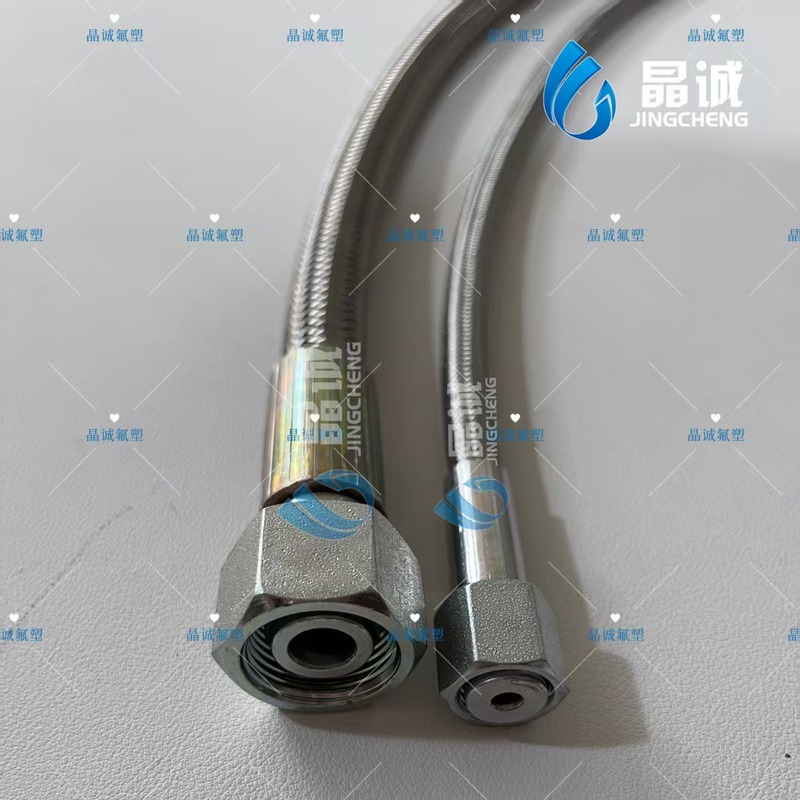

Process equipment in pharmaceutical, food and chemical plants frequently requires flexible jumper lines that can bend sharply around compact skids while safely containing pressurized, corrosive or high-purity fluids. Standard smooth-bore hoses require wider turning radii and can kink if forced into tight cabinet spaces, whereas unreinforced convoluted tubes are limited to low working pressures. JINGCHENG 304 Stainless Steel Braided Inner Spiral Convoluted PTFE Hose (series JCC-11100-PTFE) combines an inner and outer corrugated PTFE core with a high-strength 304 stainless steel wire braid for tight-bend, pressure-reinforced transfer from -70°C to +200°C.
Inner and outer spiral corrugated PTFE core: Both the internal and external surfaces of the PTFE liner are formed with continuous helical convolutions, allowing the hose to flex easily without kinking or collapsing.
High-strength 304 stainless steel wire braid: An external layer of 304 stainless steel braided wire reinforces the convoluted PTFE liner against internal pressure and external mechanical wear.
Exceptionally small minimum bend radius: Achieves bend radii as tight as 10 mm (0.39") on the 1/4" size, 25 mm (0.98") on the 1/2" size and 85 mm (3.35") on the 1" size—enabling compact routing between closely spaced manifolds, pumps and vessels.
Upgraded working pressure capacity: Rated for working pressures from 3.1 MPa (453.1 psi) on the 2" size up to 13.8 MPa (2001.0 psi) on the 1/4" size, with burst pressures up to 55.2 MPa (8004.0 psi)—more than thirty times the pressure rating of bare convoluted PTFE tubing.
Wide thermal and chemical range (-70°C to +200°C): Inert PTFE inner surface handles aggressive acids, alkalis, solvents and process media across cold and heated transfer cycles.
Per the JINGCHENG PTFE hose catalog (JCC-11100-PTFE series), this braided helical convoluted PTFE hose is specifically designed for the pharmaceutical, food and chemical industries:
Pharmaceutical manufacturing skids: Flexible connections on reactors, mobile tanks, filtration skids, dosing pumps and utility stations where compact bend radii and non-reactive PTFE contact surfaces are essential.
Food and beverage processing lines: Pressurized transfer of liquid ingredients, edible oils, syrups, flavorings and cleaning fluids in tight machinery layouts.
Chemical transfer and manifold jumpers: Loading, unloading, batch transfer and pump vibration isolation lines carrying corrosive acids, alkalis and organic solvents.
Multi-port manifolds and moving equipment: Flexible hoses that accommodate frequent connection changes, thermal movement and mechanical offset without kinking.
Part No. | Nominal Size | Inner Diameter (mm ±0.3) | Tube Outer Diameter (mm ±0.3) | Braided Outer Diameter (mm ±0.2) | Working Pressure (psi) | Working Pressure (MPa) | Burst Pressure (psi) | Burst Pressure (MPa) | Min. Bend Radius (inch) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
JCC-11104-PTFE | 1/4" | 5.8 | 8.3 | 10.3 | 2001.0 | 13.8 | 8004.0 | 55.2 | 0.39 | 10 |
JCC-11108-PTFE | 5/16" | 7.8 | 10.3 | 12.5 | 1957.5 | 13.5 | 7830.0 | 54 | 0.59 | 15 |
JCC-11110-PTFE | 3/8" | 9.6 | 12.1 | 14.1 | 1631.3 | 11.3 | 6525.0 | 45 | 0.79 | 20 |
JCC-11113-PTFE | 1/2" | 12.5 | 13.5 | 17.5 | 1540.6 | 10.6 | 6162.5 | 42.5 | 0.98 | 25 |
JCC-11116-PTFE | 5/8" | 15.7 | 19.9 | 22.5 | 1395.6 | 9.6 | 5582.5 | 38.5 | 1.18 | 30 |
JCC-11119-PTFE | 3/4" | 19.9 | 23 | 25.5 | 1141.9 | 7.9 | 4567.5 | 31.5 | 2.36 | 60 |
JCC-11125-PTFE | 1" | 24.8 | 35.7 | 37.5 | 725.0 | 5.0 | 2900.0 | 20 | 3.35 | 85 |
JCC-11132-PTFE | 1-1/4" | 32 | 42 | 45 | 598.1 | 4.1 | 2392.5 | 16.5 | 3.94 | 100 |
JCC-11138-PTFE | 1-1/2" | 38 | 48 | 50.5 | 525.6 | 3.6 | 2102.5 | 14.5 | 6.10 | 155 |
JCC-11150-PTFE | 2" | 50 | 60 | 63 | 453.1 | 3.1 | 1812.5 | 12.5 | 7.87 | 200 |
Data source: JINGCHENG PTFE Hose Catalog (JCC-11100-PTFE Series). Operating temperature range: -70°C to +200°C. All specifications can be customized according to customer parameters.
JCC-11100 Braided Convoluted Hose vs. JCC-10000 Bare Convoluted Hose: Both feature inner and outer spiral corrugations, but adding the 304 stainless steel braid in JCC-11100 raises the 1/4" working pressure from 0.4 MPa to 13.8 MPa and tightens the 1/4" minimum bend radius from 20 mm to 10 mm.
JCC-11100 Braided Convoluted Hose vs. JCC-01100 Smooth Bore Braided Hose: JCC-01100 is built for higher pressures (10–42 MPa) and straight or moderate-radius routing (42–260 mm), whereas JCC-11100 covers larger diameters up to 2" ID (50 mm) with tight bend radii down to 10–200 mm.
JCC-11100 Braided Convoluted Hose vs. JCC-21100 Smooth-ID Convoluted Braided Hose: When an application requires a smooth inner bore alongside a corrugated outer profile, vacuum resistance and a 304 stainless steel braid up to +260°C, JINGCHENG provides the JCC-21100 series.
Confirm pressure, temperature and bend radius: Select from the 10 standard sizes (1/4" to 2" ID, 5.8 mm to 50 mm) and operate within the -70°C to +200°C window and the rated working pressure for that diameter.
Avoid axial torsion during assembly: Keep the hose aligned while tightening end connectors so the spiral convolutions and wire braid are not twisted, and allow a short straight length behind each crimp ferrule before starting a bend.

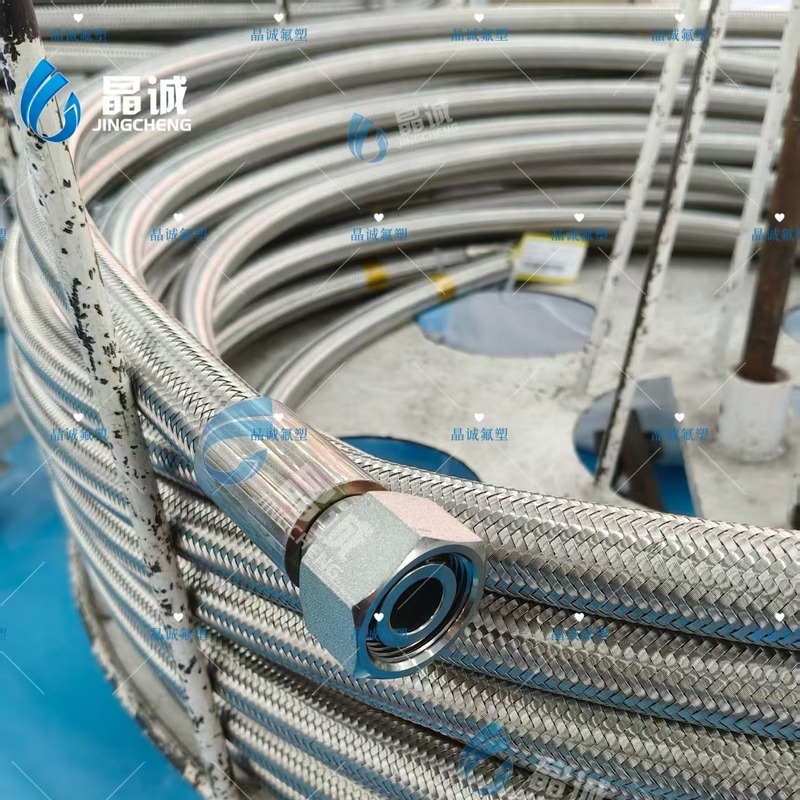

Custom lengths and end fittings: JINGCHENG supplies bulk braided convoluted hose or custom-crimped assemblies with threaded, flanged or sanitary clamp fittings produced to your specifications. Contact us with your size, length, media and pressure requirements for a quotation.
