When hydraulic transfer systems require stronger pressure resistance, chemical compatibility and long-term durability, a standard single-layer hose may not be enough. Applications involving gas-based fluids, oil-based fluids, water-based fluids and chemical materials often require a hose that can handle pressure, temperature, corrosion and mechanical stress at the same time.

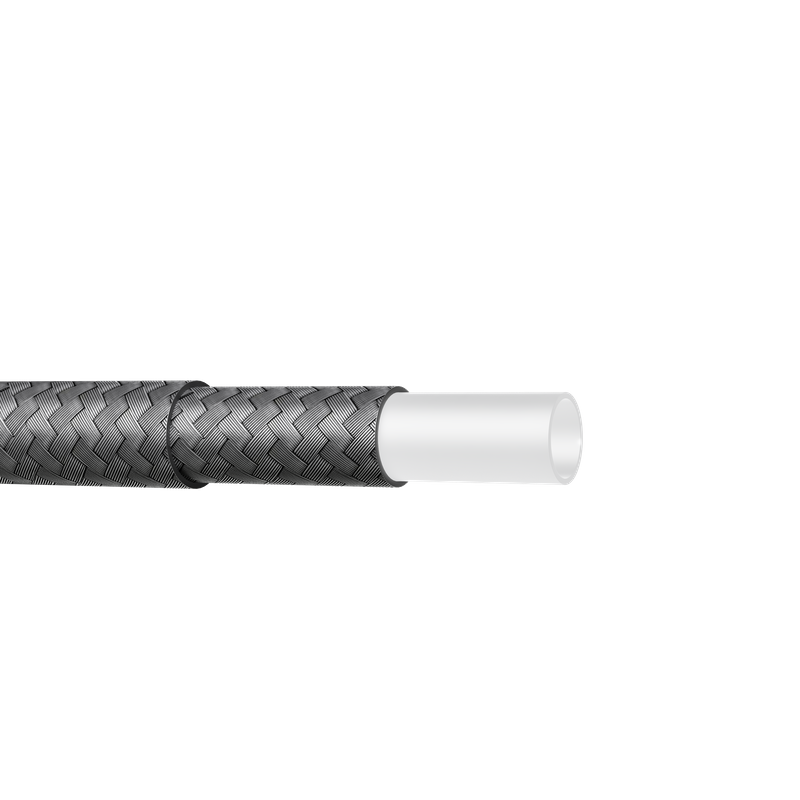

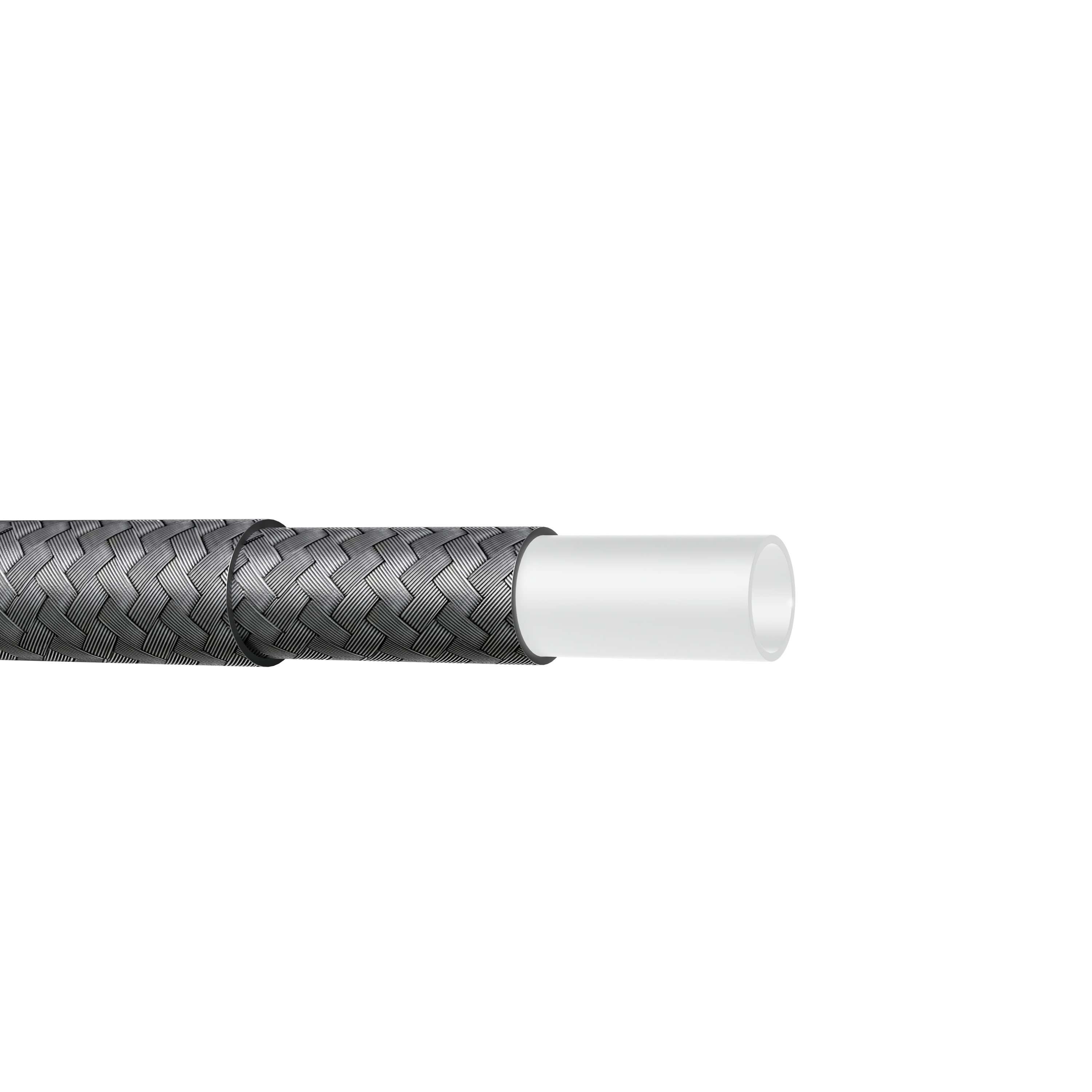

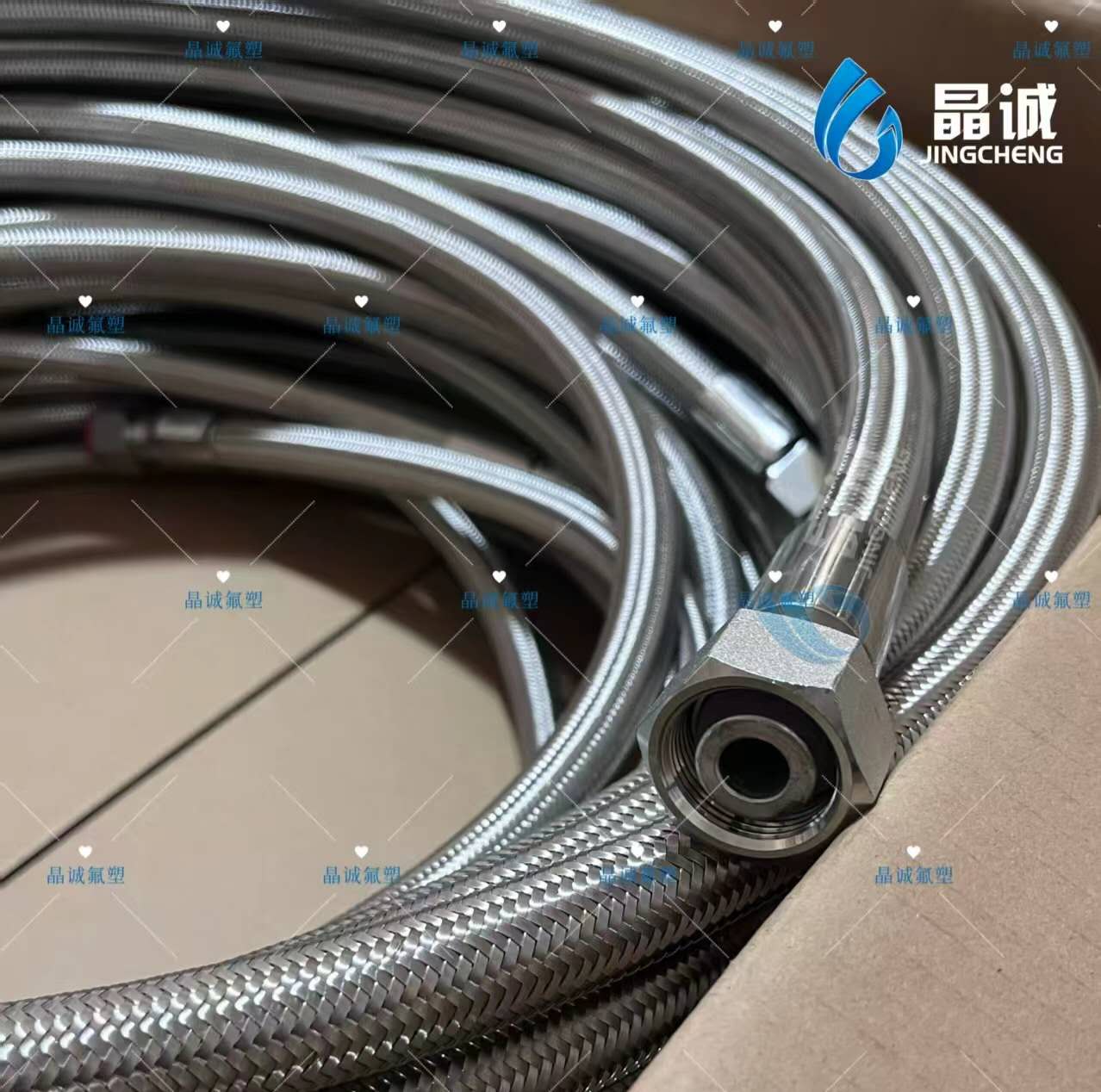

Our custom diameter double layer PTFE braided hose with 304 stainless steel reinforcement is designed for demanding hydraulic and industrial fluid transfer applications. It uses a smooth PTFE inner tube as the fluid contact layer and two layers of high-strength 304 stainless steel braided wire as the reinforcement structure.
This double-braided design provides stronger pressure support and better mechanical protection than many ordinary PTFE hoses, making it suitable for high-pressure hydraulic transmission, chemical transfer, oil transfer and industrial equipment systems.
A double layer PTFE braided hose is a reinforced hose made with a smooth PTFE inner tube and two external layers of stainless steel wire braid reinforcement. The PTFE inner tube provides chemical resistance, temperature resistance and stable fluid flow, while the double stainless steel braid improves pressure capacity and external durability.
Compared with a single layer PTFE braided hose, the double layer structure offers higher reinforcement strength. It is suitable for applications where the hose needs to withstand higher working pressure, pressure fluctuation, mechanical stress or demanding installation environments.
This type of hose is widely used in hydraulic transfer systems and industrial fluid lines where both safety and performance are important.
Different hydraulic and industrial systems require different hose sizes, pressure ratings and connection methods. This double layer PTFE braided hose is available in common sizes from 1/4" to 1-1/4", and can be customized according to working conditions.
Common size options include:
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"
Customization options may include:
Custom inner diameter
Custom outer diameter
Custom hose length
Custom working pressure requirements
Custom bending radius requirements
Custom end fittings
Custom hose assemblies
Custom connection types for equipment installation
For buyers searching for a custom diameter double layer PTFE hose, custom hydraulic PTFE hose, stainless steel braided PTFE hose or high pressure PTFE hose assembly, this product can be selected according to actual system requirements.
The smooth PTFE inner tube helps support stable fluid transfer and reduces internal flow resistance. This is important for hydraulic transmission and industrial fluid systems where flow stability and cleanliness are required.
The smooth inner surface is suitable for transferring gas-based fluids, oil-based fluids, water-based fluids and chemical materials.
The hose is reinforced with two layers of high-strength 304 stainless steel braided wire. This double reinforcement structure improves pressure resistance and helps protect the PTFE inner tube from expansion, deformation and external damage.
The double braided structure also provides better mechanical support in demanding applications compared with single-layer reinforced hoses.
This hose is designed for high-pressure hydraulic and industrial transfer applications. Depending on the selected size, the working pressure can reach up to 40 MPa, making it suitable for demanding fluid transmission systems.
For systems involving pressure fluctuation, hydraulic transmission or high-pressure transfer, this double layer PTFE braided hose provides stronger protection and better pressure support.
PTFE has strong resistance to many chemicals, oils, solvents and industrial fluids. This makes the hose suitable for transferring chemical materials, oil-based fluids and other aggressive media.
The chemical resistance of PTFE helps improve hose reliability in industrial environments where ordinary rubber or plastic hoses may degrade faster.
The hose is designed for a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature applications.
It can be used in hydraulic systems, oil transfer systems, chemical fluid lines and industrial equipment where temperature stability is required.
The two layers of stainless steel braid provide strong mechanical protection for the hose body. This helps improve resistance to external wear, vibration, pressure impact and demanding installation conditions.
This makes the hose suitable for industrial equipment, hydraulic systems and production lines where the hose may be exposed to stress or movement.
The custom double layer PTFE braided hose is suitable for demanding hydraulic and industrial transfer applications, including:
Hydraulic fluid transmission
Gas-based fluid transfer
Oil-based fluid transfer
Water-based fluid transfer
Chemical material transfer
Industrial equipment connections
High-pressure pump connections
Machinery hydraulic systems
Chemical processing systems
Oil transfer lines
Testing equipment pipelines
High-pressure fluid conveying
Temperature-resistant fluid transfer
Its combination of PTFE chemical resistance and double stainless steel reinforcement makes it suitable for applications where ordinary hoses may not provide enough pressure resistance, durability or chemical compatibility.
A single layer PTFE braided hose can meet many standard fluid transfer requirements, but some working conditions require stronger reinforcement. When the system involves higher pressure, pressure fluctuation, vibration, mechanical stress or long-term hydraulic transmission, a double layer braided structure can provide better performance.
A double layer PTFE braided hose offers stronger pressure support and better mechanical protection. The smooth PTFE inner tube provides chemical resistance and stable flow, while the two layers of 304 stainless steel braid improve pressure capacity and external durability.
For customers who need a high pressure PTFE hose, hydraulic PTFE hose, chemical resistant PTFE hose or custom stainless steel braided PTFE hose assembly, this product is a reliable choice.
