When industrial systems require high pressure resistance, chemical compatibility and strong mechanical protection, a standard PTFE hose may not be enough. Applications such as chemical high-pressure spraying, high-pressure gluing, steam conveying, oil transfer and brake hose systems require a hose structure that can handle pressure, temperature and mechanical stress at the same time.
Our custom diameter PTFE steel wire bundle braided hose with 304 stainless steel reinforcement is designed for demanding high-pressure transfer applications. It uses a smooth PTFE inner tube as the fluid contact layer, a 304 stainless steel braided wire layer as the middle reinforcement layer, and a high-strength 304 stainless steel wire bundle braided layer as the outer reinforcement.
This multi-layer structure provides excellent pressure resistance, chemical resistance, mechanical strength and temperature stability, making it suitable for harsh industrial fluid transfer systems.

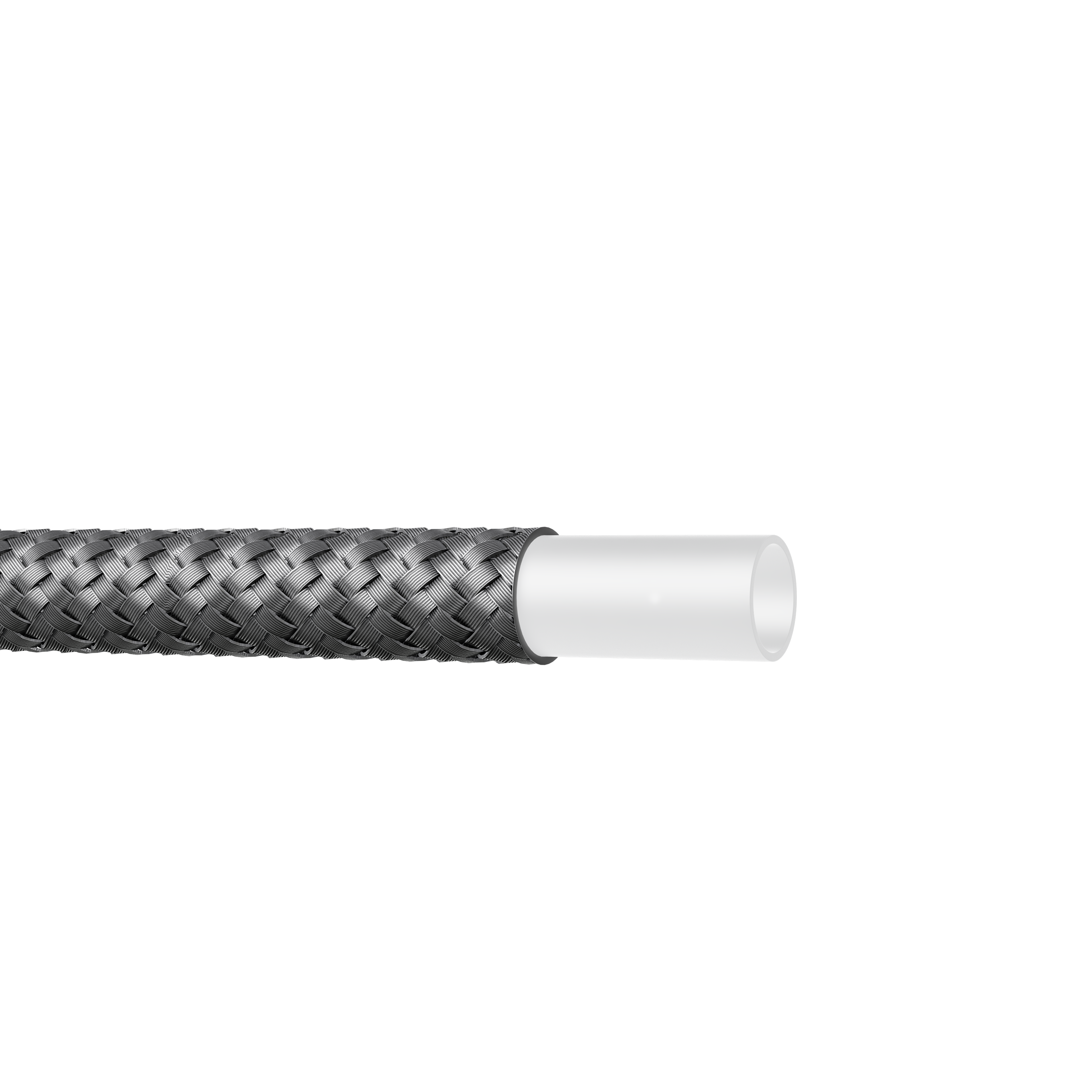

A PTFE steel wire bundle braided hose is a reinforced hose designed with a smooth PTFE inner tube and stainless steel braided reinforcement layers. The PTFE inner tube provides chemical resistance and stable fluid flow, while the stainless steel wire braid and wire bundle braided outer layer improve pressure capacity and mechanical resistance.
Compared with a standard single-layer PTFE braided hose, this hose has a stronger reinforcement structure. The additional steel wire bundle braided layer helps improve durability in applications where high pressure, vibration, external abrasion or mechanical stress may occur.
It is a practical hose solution for high-pressure chemical, oil, steam and industrial conveying systems.
Different high-pressure equipment and pipeline systems require different hose sizes, lengths and connection methods. This PTFE steel wire bundle braided hose is available in common sizes from 3/8" to 2", and can be customized according to working conditions.
Common size options include:
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"
1-1/2"
2"
Customization options may include:
Custom inner diameter
Custom outer diameter
Custom hose length
Custom working pressure requirements
Custom bending radius requirements
Custom end fittings
Custom hose assemblies
Custom connection types for equipment installation
For buyers searching for a custom high pressure PTFE hose, custom diameter PTFE braided hose, stainless steel reinforced PTFE hose or PTFE hose assembly for chemical and oil transfer, this product can be selected according to actual system requirements.
The smooth PTFE inner tube helps support stable fluid flow and reduces internal flow resistance. This is important for high-pressure transfer systems where pressure stability, flow performance and chemical compatibility are required.
The smooth inner surface is suitable for transferring chemicals, oil, steam and other industrial media.
The middle layer is made with 304 stainless steel braided wire. This layer improves the hose’s pressure resistance and helps protect the PTFE inner tube from expansion, deformation and mechanical stress during operation.
It also helps the hose maintain strength while still providing practical flexibility for installation.
The outer layer uses high-strength 304 stainless steel wire bundle braided reinforcement. This structure provides additional mechanical resistance and improves the hose’s ability to work in harsh industrial environments.
The steel wire bundle braided layer is especially useful for applications involving high pressure, movement, vibration, abrasion or demanding installation conditions.
This hose is designed for high-pressure conveying applications. Depending on the selected size, the working pressure can reach up to 41 MPa, making it suitable for chemical high-pressure spraying, high-pressure gluing, oil transfer, steam conveying and industrial fluid systems.
For systems where pressure resistance is a key requirement, this hose provides stronger reinforcement than ordinary PTFE tubing.
The hose is designed for a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature working environments.
It can be used in systems involving steam, oil, chemical media and other temperature-sensitive industrial fluids.
The reinforced stainless steel structure provides good mechanical resistance, helping protect the hose from external damage, bending stress and demanding working conditions.
This makes the hose suitable for industrial equipment, high-pressure pipelines and systems where the hose may be exposed to vibration, movement or external contact.
The custom PTFE steel wire bundle braided hose is suitable for demanding high-pressure applications, including:
Chemical high-pressure spraying
High-pressure gluing systems
High-pressure fluid conveying
Steam conveying
Oil conveying
Brake hose applications
Industrial pump connections
Chemical plant transfer lines
High-pressure equipment connections
Machinery and production line systems
Temperature-resistant fluid transfer
Corrosive media conveying
Its combination of PTFE chemical resistance and double stainless steel reinforcement makes it suitable for applications where ordinary hoses may not provide enough pressure capacity or mechanical strength.
A standard single-layer PTFE braided hose can meet many industrial requirements, but some applications need stronger pressure resistance and better mechanical protection. When the working environment involves high pressure, vibration, harsh media or frequent movement, a stronger reinforced structure is often required.
A PTFE steel wire bundle braided hose provides a more robust solution. The smooth PTFE inner tube handles chemical compatibility and fluid transfer, while the stainless steel braid and wire bundle reinforcement improve pressure resistance and external durability.
For customers who need a high pressure PTFE hose, chemical resistant PTFE hose, steam conveying PTFE hose or oil transfer PTFE hose, this product offers a strong balance of pressure performance, temperature resistance and mechanical protection.
