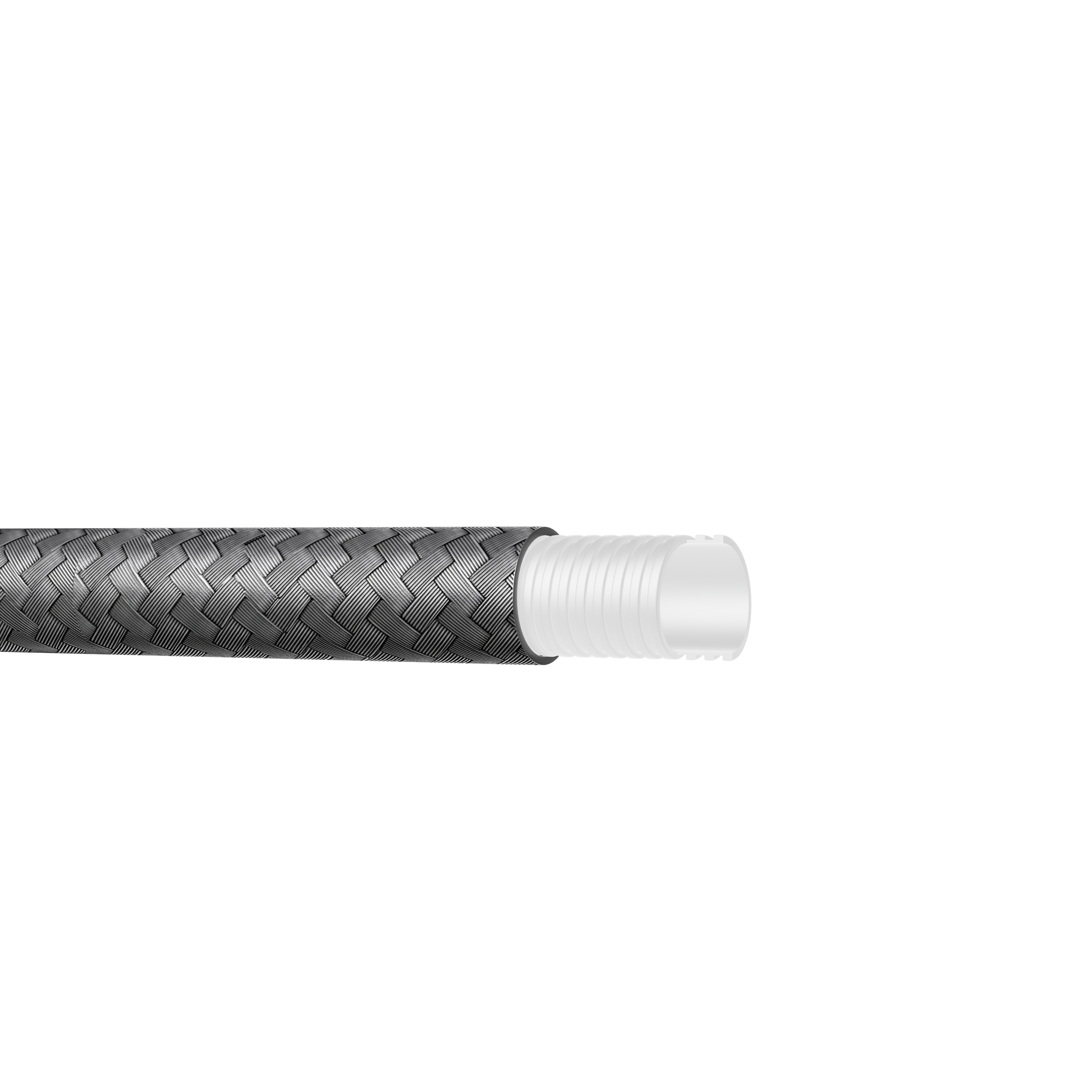

Custom Diameter PTFE Inner Smooth Outer Corrugated Braided Hose with 304 Stainless Steel Reinforcement

When fluid transfer systems require chemical resistance, easy cleaning, flexibility and reinforced strength at the same time, ordinary smooth hoses may not be enough. In industries such as food processing, cosmetics manufacturing, chemical production and pharmaceutical equipment, the hose must handle demanding media while maintaining stable performance during installation and operation.

Our custom diameter PTFE inner smooth outer corrugated braided hose with 304 stainless steel reinforcement is designed for harsh fluid transfer applications. It uses a PTFE hose with a smooth inner wall and corrugated outer wall as the inner layer, and one layer of 304 stainless steel braided wire as the outer reinforcement layer.

This structure provides a strong balance of clean flow, flexibility, negative pressure resistance and mechanical protection, making it suitable for high-demand industrial transfer systems.

What Is a PTFE Inner Smooth Outer Corrugated Braided Hose?

A PTFE inner smooth outer corrugated braided hose is a flexible reinforced hose designed with a smooth PTFE inner wall, corrugated PTFE outer wall and stainless steel braided reinforcement.

The smooth inner wall helps support cleaner fluid transfer and easier cleaning, while the corrugated outer wall improves flexibility and bending performance. The 304 stainless steel braided layer provides additional strength, pressure support and external protection.

Compared with a fully corrugated inner hose, this inner smooth design is more suitable for applications that require reduced residue, easier flushing and more stable fluid flow. Compared with a standard smooth PTFE braided hose, the outer corrugated structure improves flexibility and allows the hose to fit better in compact or curved installation spaces.

Custom Diameter and Length Options for Different Systems

Different production equipment and pipeline layouts require different hose sizes, lengths and connection methods. This PTFE inner smooth outer corrugated braided hose is available in common sizes from 1/4" to 1-1/4", and can be customized according to actual working conditions.

Common size options include:

1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"

Customization options may include:

Custom inner diameter
Custom outer diameter
Custom hose length
Custom working pressure requirements
Custom bending radius requirements
Custom end fittings
Custom hose assemblies
Custom connection types for equipment installation

For buyers searching for a custom diameter PTFE braided hose, inner smooth PTFE corrugated hose, stainless steel braided PTFE hose or custom PTFE hose assembly, this product can be selected according to specific application requirements.

Key Features of the PTFE Inner Smooth Outer Corrugated Braided Hose

1. Smooth Inner Wall for Cleaner Transfer

The smooth PTFE inner wall helps reduce material residue and supports more stable fluid flow. This is especially important for food, cosmetics and pharmaceutical applications where cleanliness, flushing and reduced buildup are important.

A smoother inner surface can also help improve cleaning efficiency after production or material changeover.

2. Corrugated Outer Structure for Flexibility

The corrugated outer PTFE structure improves the hose’s flexibility and bending performance. This makes the hose easier to install in narrow equipment spaces, curved pipeline layouts and flexible connection points.

It is suitable for applications where the hose needs to bend without excessive stress on the tube body.

3. 304 Stainless Steel Wire Braid Reinforcement

The outer layer is reinforced with high-strength 304 stainless steel braided wire. This reinforcement helps improve pressure resistance, external durability and mechanical protection.

The stainless steel braid also helps the hose maintain stable performance in demanding working environments.

4. Negative Pressure Resistance

This hose is designed to resist negative pressure, making it suitable for applications where suction, vacuum-related transfer or pressure fluctuation may occur.

For systems that require both flexibility and suction resistance, this hose provides a more reliable option than ordinary non-reinforced PTFE tubing.

5. Easy to Clean

Because the inner wall is smooth, the hose is easier to flush and clean compared with many fully corrugated inner structures. This makes it suitable for production lines where cleaning efficiency, material changeover and hygiene are important.

6. Small Bending Radius

The combination of inner smooth and outer corrugated PTFE structure allows the hose to maintain a smaller bending radius while still supporting clean transfer.

This is useful for compact equipment layouts, pump connections, tank connections and flexible pipeline systems.

7. Wide Temperature Resistance

The hose is designed for a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature working environments.

It can be used in systems involving process liquids, chemical media, food-grade fluids, cosmetics raw materials and pharmaceutical production fluids.

Typical Applications

The custom PTFE inner smooth outer corrugated braided hose is widely used in demanding fluid transfer systems, including:

Food-grade fluid transfer
Cosmetics raw material transfer
Pharmaceutical production equipment
Chemical liquid transfer
Corrosive media conveying
Clean fluid transfer systems
Vacuum or negative pressure transfer lines
Pump and tank connections
Flexible equipment connections
Production line piping systems
Laboratory and testing equipment
Industrial process liquid transfer

Its combination of smooth inner flow, flexible outer corrugation and stainless steel reinforcement makes it suitable for applications where cleanliness, flexibility and durability are required at the same time.

Why Choose an Inner Smooth Outer Corrugated PTFE Braided Hose?

A standard smooth PTFE braided hose provides good pressure resistance and clean flow, but it may not offer enough flexibility for compact or curved installations. A fully corrugated PTFE hose provides excellent flexibility, but the inner corrugated surface may not be ideal for applications requiring easier cleaning or reduced residue.

The inner smooth outer corrugated PTFE braided hose offers a balanced solution. It keeps the smooth inner wall for cleaner transfer while using the outer corrugated structure to improve bending performance. With the additional 304 stainless steel braided reinforcement, the hose also gains better mechanical protection and pressure support.

For customers who need a hose that is easy to clean, flexible, corrosion-resistant and reinforced, this product is a strong choice.
