Custom Diameter Single Layer PTFE Braided Hose with 304 Stainless Steel Reinforcement

When industrial fluid transfer systems require high pressure resistance, chemical compatibility and stable performance in harsh environments, a standard rubber or plastic hose may not be enough. Applications such as chemical processing, automotive systems, machinery equipment, medical devices, aerospace systems and energy equipment often need a hose that can handle pressure, temperature and aggressive media at the same time.

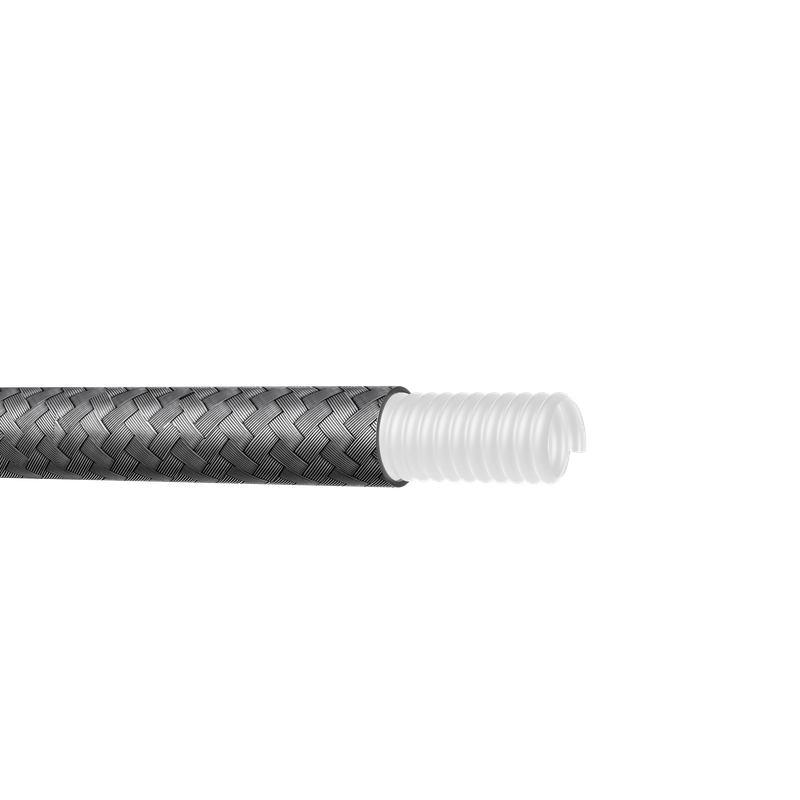

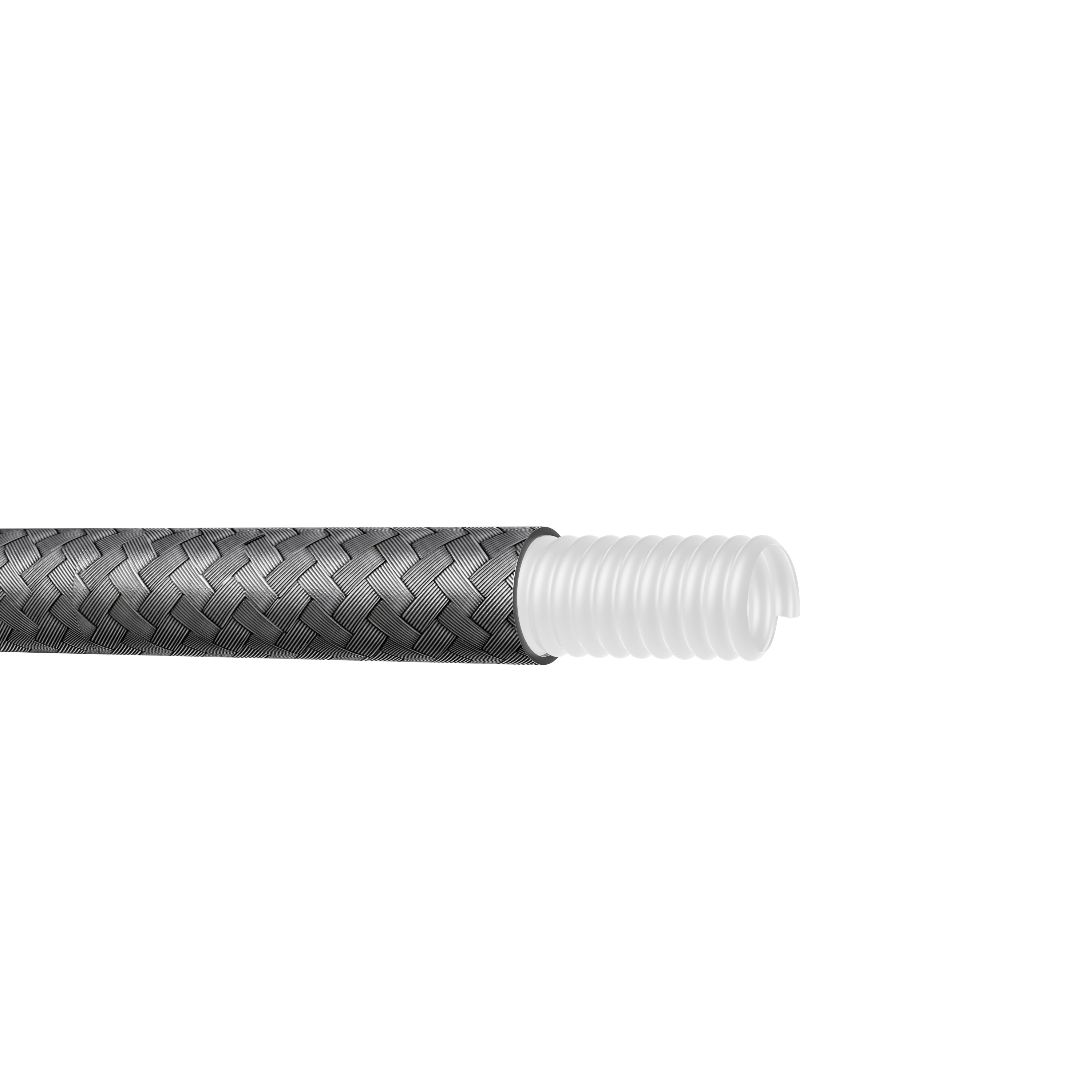

Our custom diameter single layer PTFE braided hose with 304 stainless steel reinforcement is designed for demanding industrial fluid transfer applications. It uses a smooth PTFE inner tube as the fluid contact layer and one layer of high-strength 304 stainless steel wire braid as the outer reinforcement layer.

This structure provides excellent chemical resistance, high temperature resistance, pressure resistance and mechanical protection, making it a reliable hose solution for a wide range of industrial systems.

What Is a Single Layer PTFE Braided Hose?

A single layer PTFE braided hose is a flexible hose made with a smooth PTFE inner tube and one external layer of stainless steel wire braid reinforcement. The PTFE inner tube provides strong resistance to chemicals, solvents, oils and temperature changes, while the stainless steel braid improves the hose’s pressure capacity and external durability.

Compared with ordinary tubing, this type of hose is more suitable for applications where pressure, heat, vibration or chemical exposure may cause early hose failure. It is commonly used in equipment connections, high-pressure fluid lines, gas transfer systems and industrial machinery pipelines.

TFE hose or high pressure PTFE hose assembly, this product can be selected according to specific application requirements.

Key Features of the Single Layer PTFE Braided Hose

1. Smooth PTFE Inner Tube for Stable Fluid Flow

The smooth PTFE inner tube helps reduce flow resistance and material buildup inside the hose. This is useful for applications that require stable transfer of liquids, gases, chemicals, oils or other industrial media.

A smooth inner wall can also help improve cleaning efficiency and reduce residue after operation, especially in systems where clean transfer is important.

2. 304 Stainless Steel Wire Braid Reinforcement

The outer layer is reinforced with high-strength 304 stainless steel braided wire. This reinforcement helps improve pressure resistance and protects the PTFE inner tube from external abrasion, impact and mechanical stress.

The braided structure also helps the hose maintain strength while remaining flexible enough for equipment connection and installation.

3. High Pressure Performance

The single layer stainless steel braided structure allows the hose to work under higher pressure conditions than ordinary non-reinforced tubing. Depending on the selected size, the working pressure can reach up to 42 MPa.

This makes the hose suitable for high-pressure fluid transfer, gas transfer, hydraulic-related systems, testing equipment and industrial machinery applications.

4. Wide Temperature Resistance

The hose is designed for a wide temperature range from -70°C to 260°C, making it suitable for both low-temperature and high-temperature working environments.

It can be used in systems involving heat, cold, oil, gas, chemicals and other temperature-sensitive media.

5. Excellent Chemical Resistance

PTFE has excellent resistance to many chemicals, acids, alkalis, solvents and industrial fluids. This makes the hose suitable for chemical plants, laboratory systems, pharmaceutical equipment and other applications involving corrosive or aggressive media.

6. Flexible and Durable Hose Construction

Although the hose is reinforced with stainless steel braid, it still maintains good flexibility for installation. It can be used in compact equipment spaces, movable connections and complex pipeline layouts where both strength and flexibility are required.

Typical Applications

The custom single layer PTFE braided hose is widely used in many industries, including:

Chemical fluid transfer
High-pressure gas transfer
Oil and fuel transfer systems
Automotive systems
Machinery and equipment connections
Electronic and electrical appliances
Medical equipment pipelines
Aerospace fluid systems
Energy and power equipment
Communication equipment
Laboratory and testing equipment
Industrial hydraulic and pneumatic systems
Computer and precision equipment systems

Its combination of PTFE chemical resistance and stainless steel braid reinforcement makes it suitable for demanding environments where ordinary hoses may not provide enough pressure resistance, temperature stability or service life.

Why Choose a Custom PTFE Braided Hose Instead of a Standard Hose?

A standard hose may not match the exact requirements of your equipment. If the hose diameter is too small, it may restrict flow. If the hose length is not suitable, installation becomes difficult. If the pressure rating is too low, the hose may not be safe for long-term use.

Choosing a custom PTFE braided hose helps improve system compatibility and installation reliability. It allows the hose to better match the required flow rate, working pressure, temperature range, connection type and equipment layout.

For OEM manufacturers, machinery builders, automotive system suppliers and industrial maintenance users, customized hose assemblies can reduce installation problems and improve long-term performance.
