When fluid transfer systems require chemical resistance, pressure support, flexibility and lightweight performance, ordinary rubber or plastic hoses may not provide enough durability. Applications involving fuel, gas, strong acids, strong alkalis, organic solvents, coolant, lubricants and hydraulic media require a hose that can handle aggressive media and demanding working conditions.

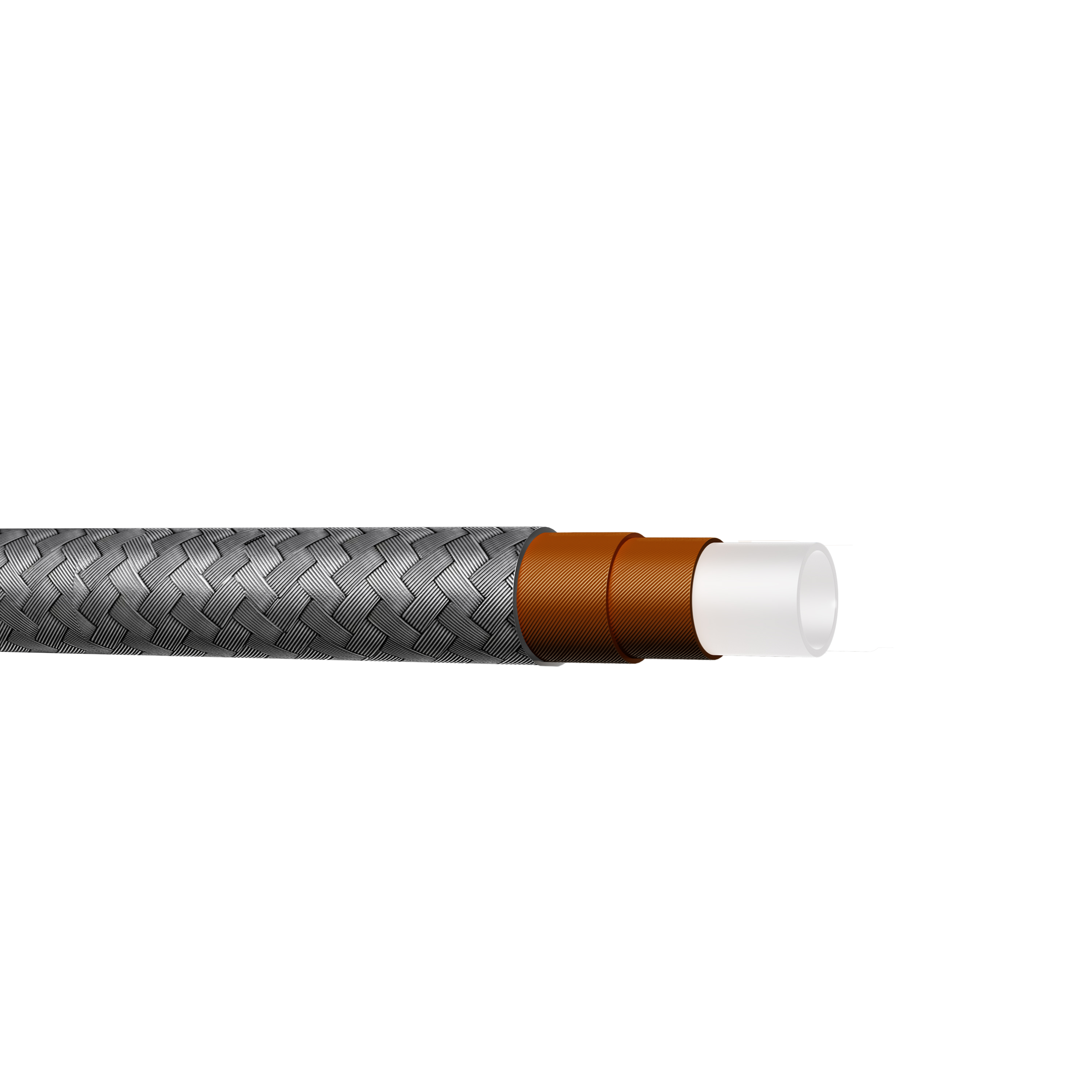

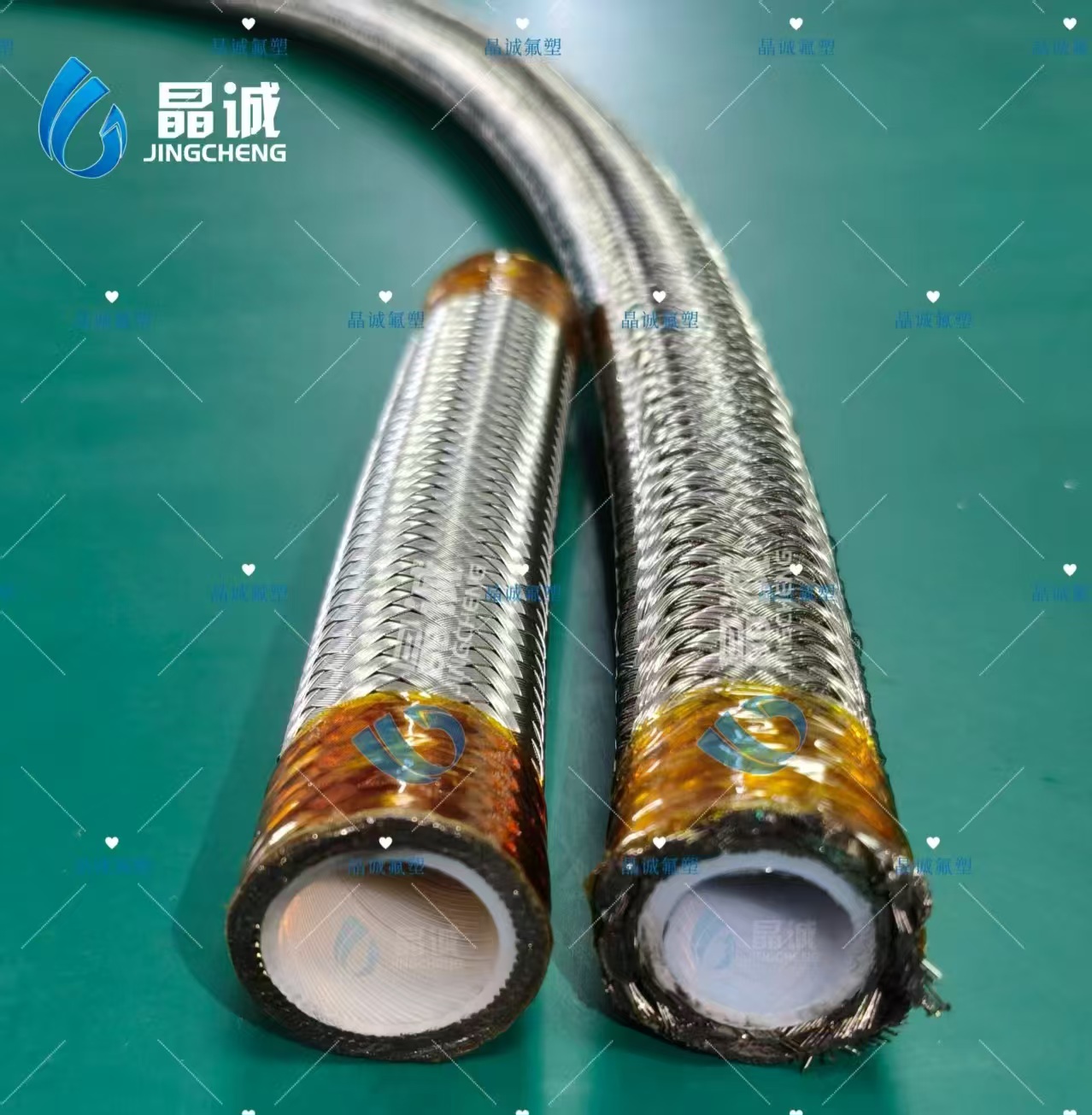

Our custom diameter PTFE steel wire wound braided hose is designed for high-demand industrial and transportation pipeline systems. It uses a PTFE straight inner tube as the fluid contact layer, one or two layers of copper-plated steel wire winding as the middle reinforcement layer, and a 304 stainless steel braided wire layer as the outer reinforcement.
This structure provides a practical balance of chemical resistance, lightweight construction, flexible bending performance and mechanical protection, making it suitable for hazardous chemical transfer, fuel lines, gas lines, coolant pipelines, lubricant delivery systems and hydraulic machinery applications.
A PTFE steel wire wound braided hose is a reinforced flexible hose designed with a PTFE inner tube, steel wire winding reinforcement and stainless steel outer braid. The PTFE inner tube provides resistance to chemicals, fuels, gases and solvents, while the steel wire winding layer helps improve structural support and pressure performance.
The outer 304 stainless steel braid adds mechanical protection and durability, helping the hose resist external wear, vibration and demanding installation environments.
Compared with ordinary PTFE tubing, this hose has stronger reinforcement. Compared with some heavy-duty multi-layer hoses, it also offers a lighter structure and more flexible bending performance, making it suitable for pipeline systems where both strength and flexibility are required.
Different equipment, vehicles and industrial systems require different hose sizes, lengths and connection methods. This PTFE steel wire wound braided hose is available in common sizes from 1/2" to 1", and can be customized according to working conditions.
Common size options include:
1/2"
5/8"
3/4"
1"
Customization options may include:
Custom inner diameter
Custom outer diameter
Custom hose length
Custom working pressure requirements
Custom bending radius requirements
Custom end fittings
Custom hose assemblies
Custom connection types for equipment installation
For buyers searching for a custom PTFE wire wound hose, fuel transfer PTFE hose, gas transfer PTFE hose, chemical resistant PTFE braided hose or custom hydraulic PTFE hose assembly, this product can be selected according to actual system requirements.
The inner layer is made with a PTFE straight tube, which provides excellent compatibility with many industrial media, including fuel, gas, strong acids, strong alkalis and organic solvents.
This makes the hose suitable for demanding transfer systems where ordinary hose materials may age, swell or degrade after contact with aggressive media.
The middle layer uses one or two layers of copper-plated steel wire winding reinforcement. This structure helps improve hose strength, pressure support and shape stability while keeping the hose relatively lightweight and flexible.
The wire wound structure is especially useful for pipeline systems that require better reinforcement without sacrificing too much bending performance.
The outer layer is reinforced with 304 stainless steel braided wire. This braid provides additional mechanical protection and helps improve resistance to abrasion, vibration, external impact and demanding installation environments.
The stainless steel braided layer also improves the hose’s overall durability in industrial and transportation applications.
This hose is designed with lightweight construction and flexible bending performance. It is suitable for equipment or vehicle pipeline layouts where the hose needs to pass through compact spaces or connect moving parts.
Good bending flexibility helps improve installation efficiency and reduce stress on connection points.
The hose is designed for a temperature range from -65°C to +220°C, making it suitable for both low-temperature and high-temperature working environments.
It can be used in fuel, gas, coolant, lubricant, chemical and hydraulic systems where temperature stability is required.
Depending on the selected size, the working pressure can reach up to 44 MPa, making this hose suitable for demanding transfer and pipeline applications.
For systems involving pressure, temperature, vibration and chemical exposure, this reinforced PTFE hose provides a reliable option.
The custom PTFE steel wire wound braided hose is suitable for a wide range of demanding pipeline systems, including:
Fuel transfer pipelines
Gas transfer pipelines
Strong acid transfer
Strong alkali transfer
Organic solvent transfer
Hazardous chemical transfer
Coolant delivery pipelines
Lubricant delivery pipelines
Hydraulic machinery systems
Automotive pipeline systems
Train pipeline systems
Ship pipeline systems
Aircraft pipeline systems
Rocket and aerospace pipeline systems
Spacecraft and satellite pipeline systems
Industrial equipment connections
Its combination of PTFE chemical resistance, steel wire winding reinforcement and stainless steel braided protection makes it suitable for applications where ordinary hoses may not provide enough reliability, pressure support or media compatibility.
A standard PTFE hose can provide chemical resistance, but it may not offer enough reinforcement for demanding pipeline systems. A heavy multi-layer hose may provide high strength, but it may be less flexible or heavier for some applications.
A PTFE steel wire wound braided hose offers a balanced structure. The PTFE inner tube provides chemical compatibility, the copper-plated steel wire winding layer improves reinforcement and flexibility, and the 304 stainless steel braid adds mechanical protection.
For customers who need a hose for fuel transfer, gas transfer, chemical transfer, coolant transfer, lubricant transfer or hydraulic machinery, this product offers reliable performance in harsh working conditions.
Different pipeline systems require different hose performance. Fuel and gas systems need material compatibility and sealing reliability. Chemical systems need corrosion resistance. Coolant and lubricant pipelines require stable flow and long-term durability. Hydraulic machinery and transportation equipment require pressure support, flexibility and mechanical protection.
This PTFE steel wire wound braided hose is designed to meet these requirements by combining PTFE material with steel wire winding and stainless steel braided reinforcement.
It is suitable for users who need a hose that can handle aggressive media, temperature changes, pressure, vibration and complex installation environments.
Before selecting this PTFE hose, buyers should confirm the following details:
The medium being transferred
Working temperature
Working pressure
Required inner diameter
Required hose length
Minimum bending radius
Installation environment
End fitting or connection type
Whether the hose is used in a vehicle or industrial system
Whether vibration, movement or external abrasion is present
Whether a complete hose assembly is required
Providing these details helps ensure that the selected hose matches the actual working conditions. For special equipment, vehicle pipeline systems, chemical transfer lines or aerospace-related applications, custom sizing and custom fittings are recommended.
Our custom diameter PTFE steel wire wound braided hose is designed for customers who need a chemically resistant, flexible and reinforced hose solution for demanding pipeline systems.
With a PTFE straight inner tube, one or two layers of copper-plated steel wire winding reinforcement, 304 stainless steel braided outer layer and size options from 1/2" to 1", this hose is suitable for fuel, gas, strong acid, strong alkali, organic solvent, coolant, lubricant, hydraulic machinery and transportation pipeline applications.
Whether you need a custom diameter PTFE hose, custom length PTFE braided hose, fuel transfer PTFE hose, chemical resistant PTFE hose or a complete PTFE hose assembly, this product can be customized according to your working conditions and installation requirements.
