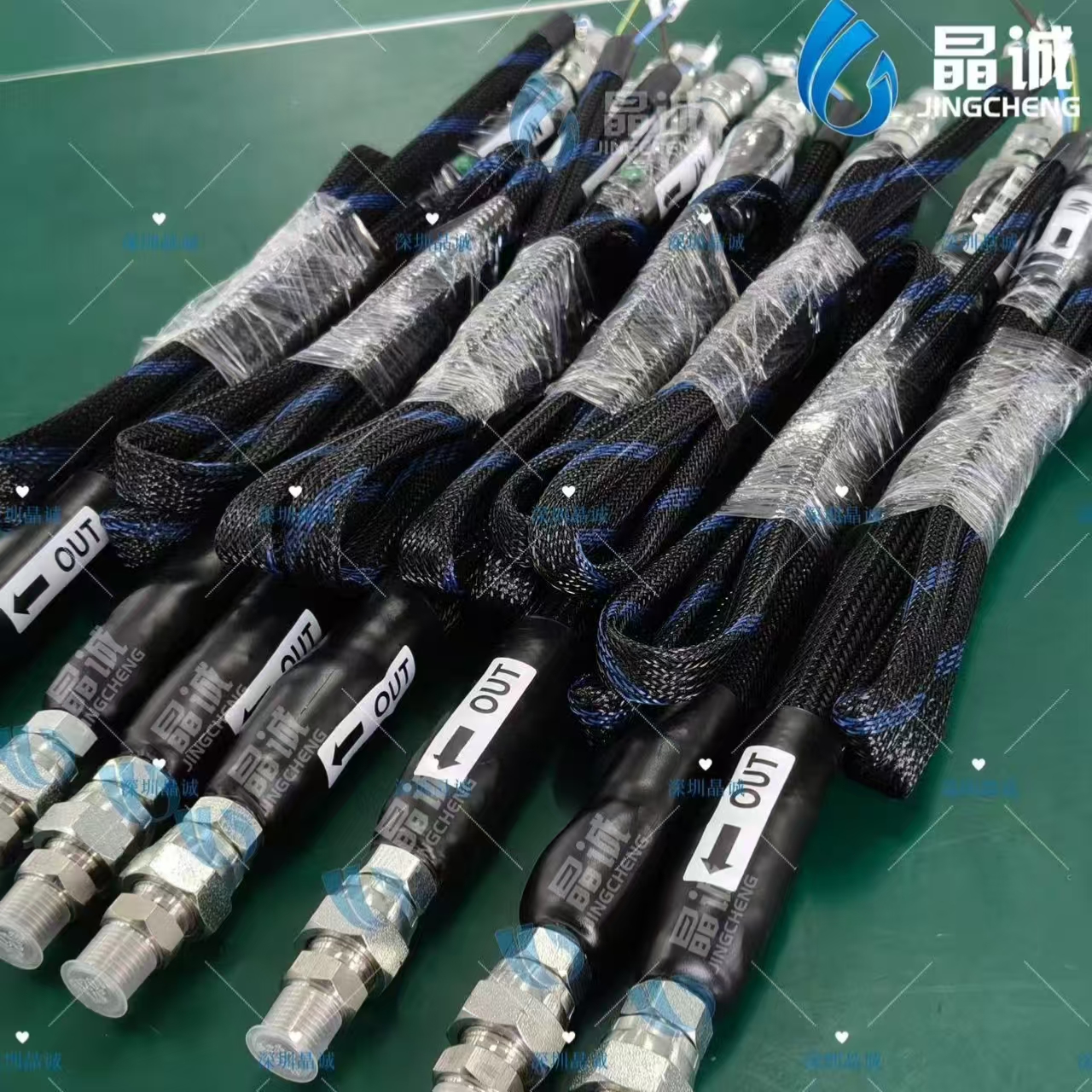

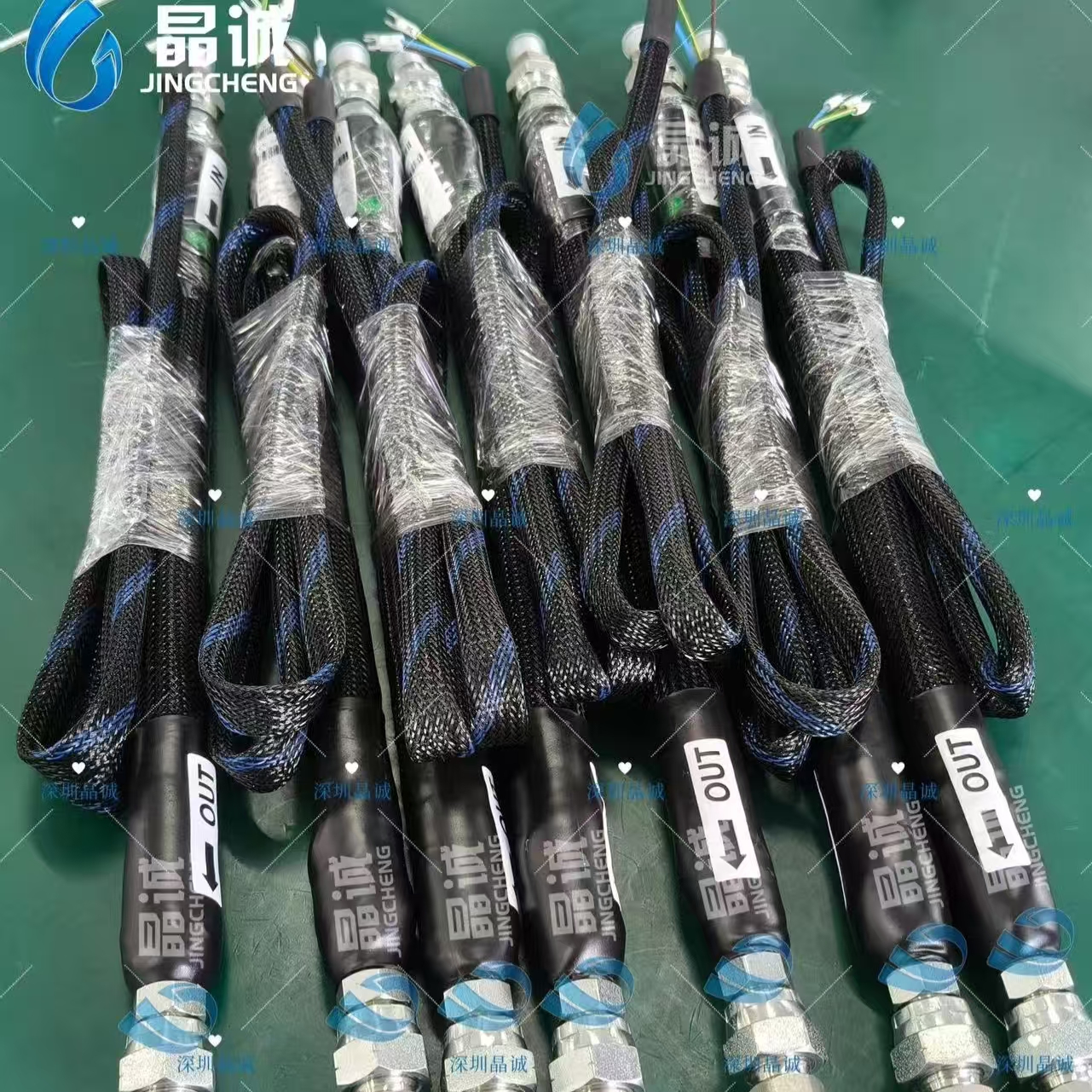

Designed for hot melt and PUR adhesive delivery, this heated hot melt glue hose maintains a stable transfer temperature from melter to applicator, helping reduce viscosity drift, stringing, nozzle buildup, and unplanned downtime in production lines. It supports a wide range of hot melt systems and can be built to your required size, voltage, and connection standards.
Maximum operating temperature: up to 230°C (design-dependent).
Uniform heating structure: evenly woven heating elements to minimize inner-wall temperature variation.
High-efficiency insulation: designed to maintain temperature stability while considering surface temperature.
Compatibility: suitable for hot melt & PUR machines; can match systems such as Nordson, Robatech, Dynatec, Miller, and more.
Durability-focused build: produced with automated winding (instead of conventional manual winding) for consistent quality and long service life.
Hot melt adhesives are highly temperature-sensitive. When the adhesive cools in the transfer line, viscosity rises and flow becomes unstable—leading to inconsistent bead size, stringing, poor bonding, or clogging. Heated hoses are widely used to keep viscous media stable during transfer and help prevent solidification, freezing, or viscosity increase.
The heating layer uses evenly woven heating elements, minimizing temperature differences along the inner wall for more stable dispensing performance.
High-insulation-efficiency materials support stable temperature maintenance and reduce heat loss during production.
Designed for hot melt and PUR adhesive transfer and compatible with a wide range of equipment brands and configurations.
Final ratings depend on your exact configuration. For fast selection, share your adhesive type, temperature, pressure, and fitting requirements.
| ID (inch) | OD (mm) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min Bend Radius (mm) |
|---|---|---|---|---|---|---|
| 1/4” | 9 | 173 | 2501 | 690 | 10005 | 30 |
| 5/16” | 11 | 158 | 2284 | 630 | 3915 | 40 |
| 3/8” | 12.4 | 135 | 1958 | 540 | 7830 | 60 |
| 1/2” | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
| 5/8” | 19 | 88 | 1269 | 350 | 5075 | 180 |
| 3/4” | 22.6 | 85 | 1234 | 340 | 4930 | 260 |
| 1” | 29.5 | 75 | 1088 | 300 | 4350 | 300 |
2025年电加热软管目录 -深圳晶诚
One key advantage of our electrically heated hoses is build-to-order customization based on the temperature, viscosity, and flow behavior of your internal medium.
Common build-to-order parameters include:
Hose length: 0.1 m / 3 m / 4.5 m / 5 m / 6 m / 10 m (and custom).
Hose diameter options: Φ8 / Φ12 / Φ16 / Φ19 / Φ25 (and custom).
Voltage: 380Vac / 220Vac / 110Vac / 12Vdc (and custom).
Sensor options: J-type / K-type / NI120 / PT100 / PT1000 (and custom).
Pressure options (selection reference): 4 MPa / 10 MPa / 20 MPa / 35 MPa (and custom).
Power density (selection reference): 110 / 150 / 170 / 200 W/m (and custom).
Control approach: PID control options are available (SSR output / thyristor output), and heating control boxes can be customized for multi-channel needs.
To recommend the best configuration quickly, please provide:
Adhesive type (Hot melt / PUR) and whether it thickens when cooling
Operating temperature (normal / max)
Operating pressure (normal / peak)
Hose ID, length, routing constraints, and required bend radius (use the table as reference)
Fitting type/standard and connection layout (photos are helpful)
Power supply (voltage) + whether you need a sensor / closed-loop PID control
We follow a clear delivery workflow: inquiry → spec confirmation → quotation → production → inspection & packing → shipment to your designated address
