For manufacturers of waterproofing spray equipment, the heated hose is an important part of the complete machine.
It connects the material-handling system to the application equipment and must satisfy several technical requirements simultaneously.
These include temperature capability, pressure resistance, dimensional compatibility, heating performance and installation flexibility.
While a custom hose can be developed for one machine, equipment manufacturers often face a more difficult challenge:
How can the same hose specification be reproduced consistently across many machines and future production batches?
This question becomes important when an OEM produces multiple models, supplies equipment to distributors or maintains a large installed base requiring replacement components.

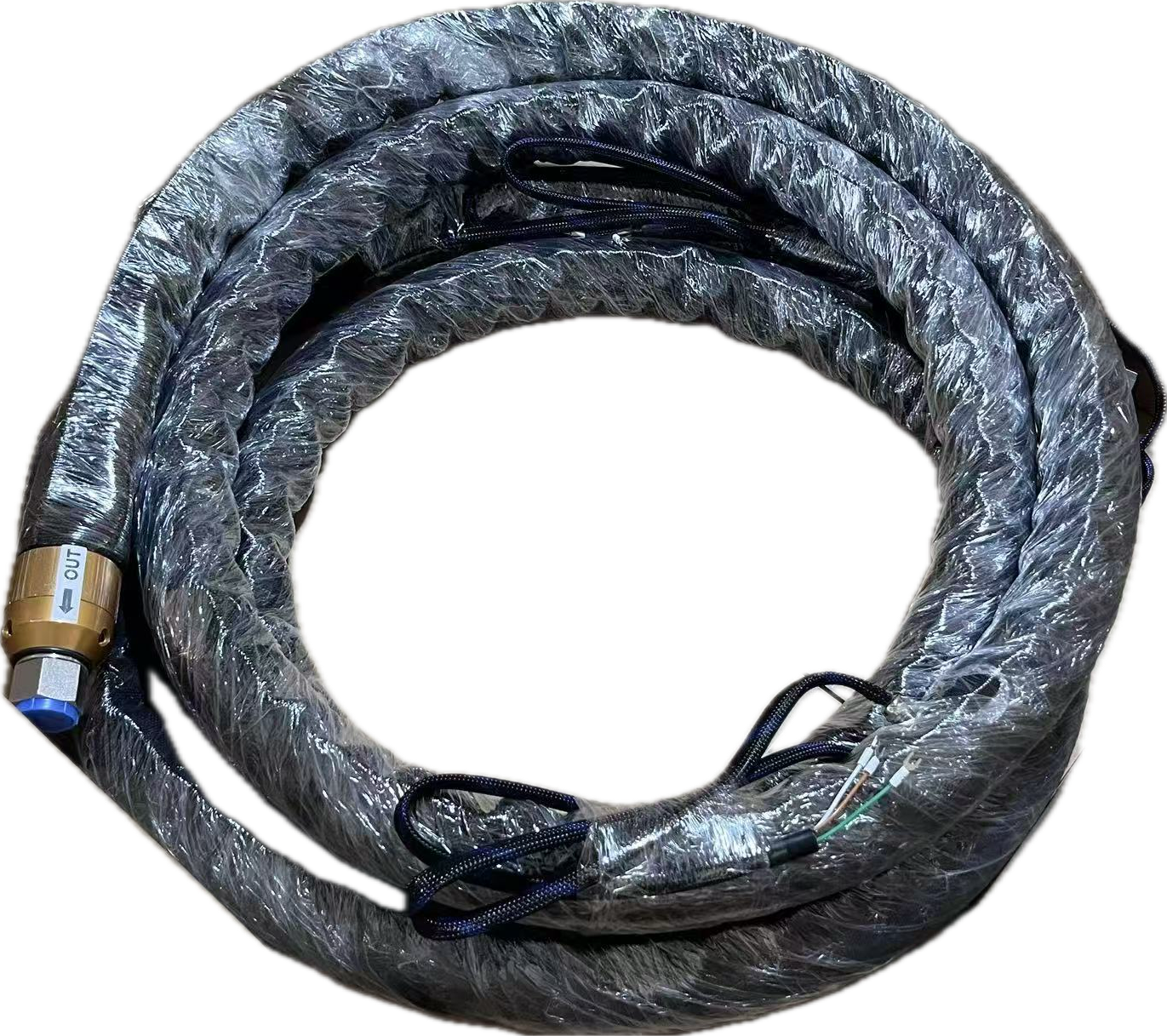

Jingcheng's heated hose for waterproofing equipment is designed for waterproof construction machinery and non-curing coating spray systems.
According to the product catalog, Jingcheng has cooperated with waterproofing equipment manufacturers since 2013.
The catalog emphasizes stable performance and durability in demanding construction environments.
The hose family provides a maximum temperature capability of approximately 230°C, with multiple diameter options and customized assemblies available.
A waterproofing machine manufacturer may produce several different models.
Some machines may use relatively short hoses, while others require longer flexible assemblies.
Different machines may also use different:
Pump connections
Heating requirements
Electrical plugs
Operating pressures
Material flow rates
Without standardized specifications, production personnel may need to reconfirm the hose requirements for every order.
This can increase purchasing complexity and create avoidable assembly errors.
Developing a repeatable heated hose specification helps OEM manufacturers establish consistent procurement and manufacturing procedures.
The hose should not be specified only by diameter and length.
A complete electrically heated hose involves several functional sections.
These may include:
Material-transfer tube: Carries the heated waterproofing material.
Heating layer: Supplies thermal energy along the hose.
Insulation layer: Reduces heat loss to the surrounding environment.
Outer protective construction: Protects the assembly from external conditions.
End fittings: Connect the hose to the equipment.
Electrical interface: Connects the heating system to the machine controller.
The precise construction depends on the ordered configuration.
For OEM production, all relevant parts should be included in the technical specification.
One of the most practical approaches is to assign a defined hose specification to each waterproofing machine model.
A specification can contain:
Machine model + hose ID + hose length + pressure + temperature + voltage + wattage + sensor + fittings + connector.
This information can be included in the equipment's bill of materials.
The same specification can then support manufacturing, technical support and future spare-parts orders.
This is particularly useful when an equipment manufacturer supplies machines through several independent distributors.
The Jingcheng product catalog specifies a maximum operating temperature of approximately:
230°C
This allows the hose family to be considered for heated waterproofing and non-curing coating equipment.
However, the actual operating temperature should be defined according to the transferred material and equipment requirements.
The machine's normal process temperature should not automatically be set at the hose's maximum catalog capability.
For OEM development, the intended continuous temperature and any expected transient conditions should be specified before manufacturing.
Two heated hoses can look identical externally but have different electrical specifications.
Differences may include:
Supply voltage
Heating power
Temperature sensor
Electrical connector
Pin arrangement
These details must match the machine controller.
Otherwise, a replacement hose may connect mechanically but remain electrically incompatible.
For this reason, electrical parameters should be treated as part of the hose part number rather than as optional notes.
The catalog provides three nominal sizes for the waterproofing equipment hose.
Nominal size | Outer diameter | Working pressure | Minimum bending radius |
|---|---|---|---|
1/2" | 15.9 mm | 118 bar | 150 mm |
5/8" | 19 mm | 88 bar | 180 mm |
3/4" | 22.6 mm | 85 bar | 260 mm |
These are catalog reference values. The finished hose assembly should be verified for its intended temperature, pressure and connection configuration.
Different diameters provide different balances between flow area and installation requirements.
A smaller hose may be easier to route, while a larger hose may provide more internal flow capacity.
The correct selection should be based on the actual machine requirements.
Hose bending requirements affect the overall machine layout.
For example, the 3/4-inch version has a minimum bending radius of approximately 260 mm, compared with approximately 150 mm for the 1/2-inch version.
This difference should be considered during equipment development.
If the machine frame does not provide enough space for the required bend, the hose may be forced into an unsuitable routing position.
Defining the hose geometry during the machine design stage can help prevent this problem.
For OEM customers, quality consistency across repeat orders is important.
The hose supplied for the first production batch should match the approved technical specification used for subsequent batches.
Important areas of manufacturing control may include:
Hose dimensions
Fitting identity
Heating specifications
Electrical assembly
Physical construction
Final inspection
The required inspection and testing procedures should be agreed upon according to the actual project.
An OEM manufacturer may initially order a small quantity for technical evaluation.
The sample can be checked against the machine's mechanical and electrical requirements.
This may involve verifying the hose dimensions, fittings, voltage, resistance, sensor compatibility and temperature behavior according to the approved test plan.
Once the sample is accepted, its specification can become the reference for future production.
This reduces uncertainty when larger quantities are ordered later.
For demanding waterproofing equipment applications, the buyer and manufacturer can establish a hose acceptance procedure.
Depending on the application, this may include:
Dimensional inspection: Confirming the correct hose diameter, length and fittings.
Electrical checks: Verifying the required heating circuit and sensor arrangement.
Pressure or leak testing: Confirming the assembled hose meets the agreed pressure-test requirements.
Heating verification: Checking temperature-control behavior under defined test conditions.
Visual inspection: Reviewing the assembly for visible defects or damage.
The specific test methods and acceptance criteria should be agreed upon before production rather than assumed from a generic catalog.
When a hose has been successfully approved, the OEM should retain its specification.
This helps avoid unintentional changes in:
Hose diameter
Connection geometry
Electrical power
Sensor type
Connector wiring
If a design change becomes necessary, the revised version should be identified separately.
A controlled specification makes future manufacturing and troubleshooting more systematic.
Waterproofing equipment manufacturers often continue supporting machines after installation.
Replacement hoses may be required during maintenance or after years of service.
If the original hose specification is available, the replacement can be identified more efficiently.
Without clear documentation, the customer may need to measure the original hose and determine its electrical configuration again.
Standardized hose specifications therefore create value beyond the initial machine assembly.
They can support long-term parts supply and distributor service programs.
For equipment manufacturers with an established machine population, maintaining selected replacement hose configurations can be useful.
A common specification across multiple machines may simplify spare-parts inventory.
However, manufacturers should avoid assuming that similar-looking hoses are interchangeable.
Each replacement must match the applicable mechanical, pressure, temperature and electrical requirements.
Stockkeeping decisions should be based on confirmed compatibility.
The product catalog highlights use in challenging weather and construction environments.
In practice, waterproofing equipment may operate in dusty, humid or mechanically demanding locations.
The completed hose should therefore be designed around the actual installation environment.
Relevant considerations include:
External abrasion
Moisture exposure
Machine vibration
Temperature conditions
Hose support
Electrical connector protection
Any specific protection requirements should be confirmed during customization.
The hose family is intended for equipment such as:
Non-curing waterproof coating spray machines
Heated waterproof material transfer equipment
Mobile waterproofing construction machinery
Industrial waterproof coating application systems
OEM waterproofing spray equipment
The actual configuration depends on the material and the machine's operating conditions.
Jingcheng can develop heated hose assemblies according to customer drawings, equipment models or original samples.
Customization may include:
Hose inner diameter
Hose length
End fitting specification
Electrical voltage
Heating power
Temperature sensor
Connector type
Power lead length
Protective construction
This allows equipment manufacturers to develop a hose assembly around their existing platform rather than modifying the machine to fit a fixed hose.
A manufacturer requesting a custom waterproofing hose should provide:
Equipment model
Transferred material
Working temperature
Working pressure
Maximum pressure
Hose diameter
Hose length
Voltage and heating power
Temperature sensor
Electrical connector
Fitting drawings or photographs
Expected operating environment
Annual purchasing quantity, if known
A complete specification can help the supplier evaluate the project and provide a more accurate quotation.
Jingcheng specializes in customized PTFE hose and electric heated hose assemblies for industrial equipment manufacturers.
The product catalog describes a history of cooperation with the waterproofing equipment industry beginning in 2013.
With integrated production capabilities, the company can support OEM development, sample orders, customized specifications, short production lead times and factory-direct supply.
For equipment manufacturers, the objective is to provide not only an individual hose, but also a repeatable component specification suitable for production and long-term service.
A heated hose is a relatively small component within a waterproofing spray machine, but it affects production assembly, electrical integration, maintenance and long-term spare-parts support.
For OEM manufacturers, the most effective approach is to develop a standardized and verifiable hose specification.
This should define the mechanical dimensions, operating limits, heating system and complete connection arrangement.
Jingcheng's heated waterproofing equipment hose provides a customizable solution for non-curing coating spray equipment and other heated construction machinery.
By establishing controlled specifications and agreed acceptance criteria, equipment manufacturers can improve consistency across production batches and simplify future replacement supply.
