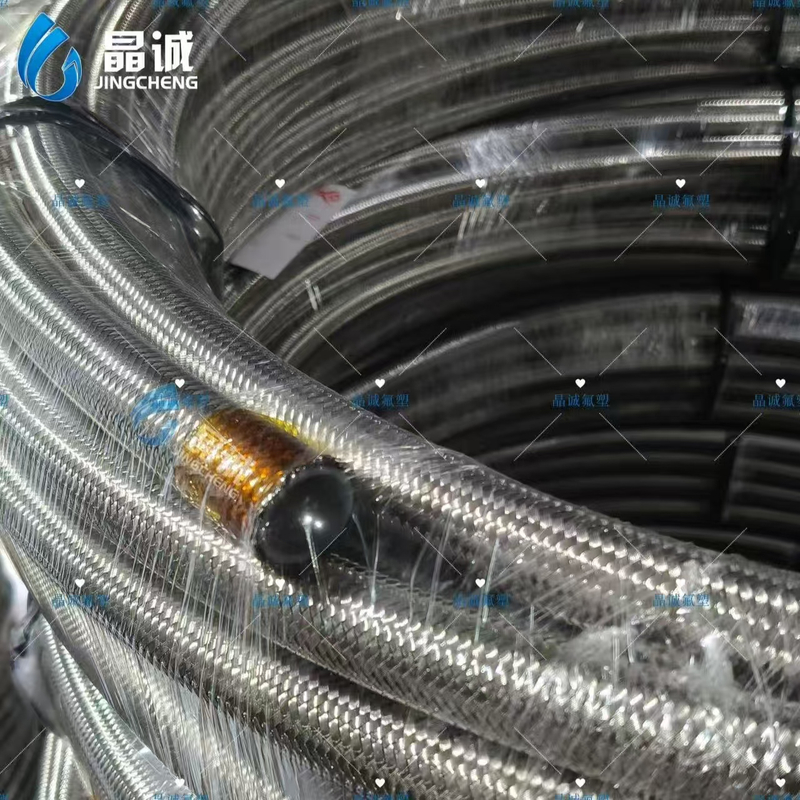

Industrial systems operating under extreme pressure and chemical exposure require tubing that won't fail. PTFE steel wire braided hose combines polytetrafluoroethylene's legendary chemical inertness with 304 stainless steel dual-layer braiding to deliver working pressures exceeding 5,900 PSI and burst pressures beyond 17,000 PSI. Whether you're designing automotive brake systems, managing chemical processing operations, or engineering aerospace hydraulics, this hose solves the fundamental challenge: maintaining safety and reliability when standard tubing cannot survive.
Available in eight standard sizes (3/8" to 2") with custom configurations, PTFE steel wire braided hose eliminates frequent replacement cycles, reduces contamination risks, and ensures consistent performance across -70°C to +260°C operating ranges. The three-layer structure—smooth PTFE inner surface, stainless steel braiding middle layer, and protective steel wire outer reinforcement—creates the most durable high-pressure hose available for chemical-resistant applications.
Extreme Pressure Capability: Working pressures to 5,945 PSI; burst pressures exceeding 17,879 PSI (design-dependent on diameter)
Extended Temperature Range: Reliable operation from -70°C to +260°C without pressure rating loss (design-dependent)
Complete Chemical Inertness: Compatible with all industrial chemicals, solvents, strong acids, alkalis, and petroleum products (design-dependent material compatibility)
Superior Durability: 304 stainless steel dual-layer braiding provides exceptional mechanical strength and 20+ year service life
Compact Design: Minimum bending radius from 75mm (3/8") to 900mm (2")—enables tight routing in confined spaces
Certified Quality: ISO 9001:2015, FDA 21 CFR 177.1550, SGS third-party verification
1. Three-Layer Advanced Construction
Inner Layer: Smooth PTFE tube (chemical inert, low permeability)
Middle Layer: 304 stainless steel wire braiding (tensile strength, pressure support)
Outer Layer: Protective 304 stainless steel braiding (mechanical durability, environmental protection)
2. Unmatched Chemical Compatibility
Safely handles all industrial chemicals, solvents, and oils
No degradation from strong acids, alkalis, or oxidizing agents
Prevents fluid contamination through non-reactive inner surface
Perfect for pharmaceutical, food processing, and chemical manufacturing
3. Superior Pressure and Temperature Performance
Working pressures to 5,945 PSI across sizes
Burst pressures up to 17,879 PSI (design-dependent)
Operates reliably from -70°C to +260°C
Maintains consistent properties across thermal shock and rapid cycling
| Model | Inner Ø | Outer Ø | Working Pressure | Burst Pressure | Min. Bending Radius | Applications |
|---|---|---|---|---|---|---|
| JCC-02110-PTFE | 3/8" (9.5mm) | 15.8mm | 5,945 psi | 17,719 psi | 75mm | Brake lines, chemical injection |
| JCC-02113-PTFE | 1/2" (12.7mm) | 18.3mm | 5,713 psi | 17,339 psi | 113mm | Hydraulic, steam systems |
| JCC-02116-PTFE | 5/8" (16.3mm) | 20.3mm | 5,959 psi | 17,879 psi | 170mm | Industrial equipment |
| JCC-02119-PTFE | 3/4" (19mm) | 30mm | 5,872 psi | 17,618 psi | 205mm | Aerospace applications |
| JCC-02125-PTFE | 1" (25mm) | 35.5mm | 5,118 psi | 15,356 psi | 248mm | Large-scale systems |
| JCC-02232-PTFE | 1-1/4" (31.5mm) | 43.5mm | 3,770 psi | 11,310 psi | 490mm | Petroleum refining |
| JCC-02238-PTFE | 1-1/2" (38mm) | 50mm | 2,392 psi | 7,178 psi | 650mm | Lower pressure applications |
| JCC-02250-PTFE | 2" (50.6mm) | 60mm | 2,537 psi | 7,613 psi | 900mm | Large diameter systems |
All specifications tested per ISO 9001:2015 and FDA 21 CFR 177.1550 requirements
| Customization Option | Available Configurations |
|---|---|
| Custom Length | 1 meter to 1,000+ meters (continuous rolls) |
| Non-Standard Diameters | Beyond standard sizes—specify inner/outer requirements |
| Fitting Types | NPT, JIC, SAE, ISO Metric 6149, custom configurations |
| Exterior Sleeves | Optional protective nylon or heat-shrink sleeves |
| Color Identification | Black, red, blue, yellow, natural white for system coding |
| End Terminations | Straight, 45°, 90° bends (design-dependent) |
| Documentation | Full traceability records, pressure test certificates |
| Delivery Packaging | Standard industrial spools or custom packaging for logistics |
Jingcheng (晶诚高科技) has been manufacturing premium PTFE tubing and specialized hose solutions since 2005. Our advanced manufacturing facilities in Shenzhen, Guangzhou, and Zhongshan, China, maintain ISO 9001:2015 quality standards and deliver products worldwide.
