Solvent-Free Laminating Machine Heated Hose for Adhesive Transfer Systems

Introduction

A solvent-free laminating machine heated hose is designed to transfer temperature-sensitive adhesive materials between the supply, metering, mixing and coating sections of solvent-free laminating equipment.

Stable adhesive temperature is important for maintaining viscosity, metering accuracy and coating consistency. If the adhesive cools inside the transfer hose, it may become more viscous, increase system pressure and affect the final laminate quality.

Shenzhen Jingcheng High-tech manufactures customized heated hoses for domestic and imported solvent-free laminating machines.

What Is a Solvent-Free Laminating Heated Hose?

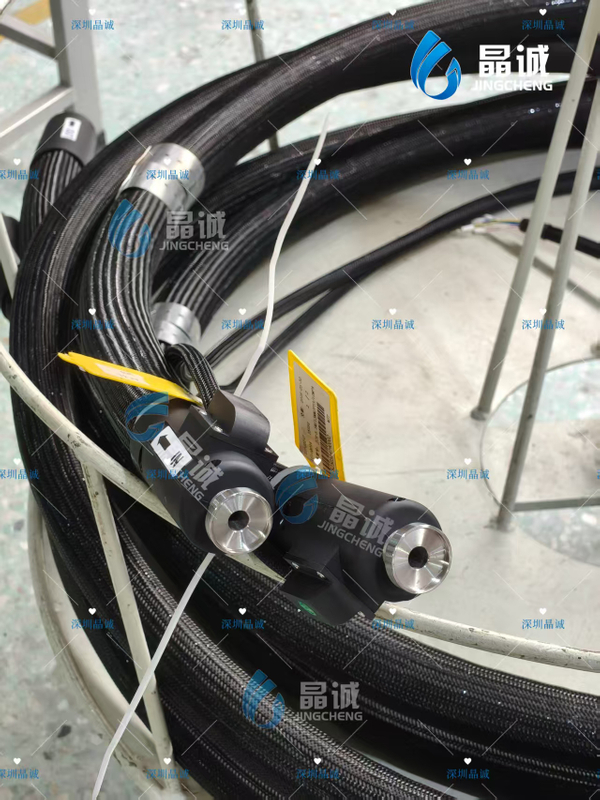

A solvent-free laminating heated hose is an electrically heated flexible pipeline used to maintain adhesive temperature during production.

The complete hose assembly may include:

• Adhesive-compatible inner hose

• Pressure reinforcement

• Uniformly arranged heating elements

• Thermal insulation

• Protective outer cover

• Temperature sensor

• Fluid fittings

• Electrical connector

The design is customized according to adhesive characteristics and laminating machine requirements.

Why Solvent-Free Laminating Equipment Needs Heated Hoses

Adhesive viscosity directly affects mixing, metering and coating performance. Temperature loss inside the transfer hose may cause:

• Higher adhesive viscosity

• Unstable flow rate

• Uneven coating

• Increased pump pressure

• Incorrect component ratios

• Adhesive accumulation

• More frequent cleaning

• Reduced production speed

A heated transfer hose helps maintain more consistent process conditions.

Key Features

1. Designed for Solvent-Free Laminating Machines

The hose is suitable for different domestic and imported solvent-free laminating systems.

2. Stable Heating up to 230°C

The standard product supports temperatures up to 230°C, with customized temperatures available according to the adhesive.

3. Uniform Heating Structure

Uniformly arranged heating elements help reduce cold spots and temperature differences along the transfer line.

4. High-Efficiency Insulation

The insulation layer helps reduce heat loss and improve temperature stability.

5. Custom Equipment Interfaces

Fluid fittings, electrical connectors and sensors can be matched to different laminating machine models.

6. Suitable for Adhesive Transfer

The inner hose can be selected according to the adhesive, viscosity, temperature and pressure.

7. Flexible Hose Assembly

Hose length, diameter, outer protection, voltage, power and sensor configuration can be customized.

Typical Applications

• Solvent-free laminating machines

• Flexible packaging laminators

• Adhesive metering systems

• Adhesive mixing equipment

• Coating and laminating machines

• Packaging film production lines

• Composite material production

• Heated resin transfer

• Adhesive delivery systems

• Imported laminating equipment

• Domestic laminating machinery

Technical Specification Options

Our Data

Final pressure capability depends on temperature, fittings, inner hose and complete assembly design.

Benefits for Flexible Packaging Manufacturers

A correctly designed heated hose can help:

• Maintain stable adhesive viscosity

• Improve metering consistency

• Support more uniform coating

• Reduce cold spots

• Lower the risk of adhesive blockage

• Reduce system pressure fluctuation

• Improve compatibility with imported machinery

• Reduce maintenance and replacement time

• Support continuous production

How to Select the Correct Heated Hose

Please provide:

• Adhesive name and type

• Working temperature

• Working pressure

• Adhesive viscosity

• Required flow rate

• Hose length

• Inner diameter

• Voltage and power

• Sensor type

• Machine-side fitting

• Outlet-side fitting

• Electrical connector

• Laminating machine model

• Original hose photos or drawing

Why Choose Shenzhen Jingcheng?

Customized Equipment Compatibility

We manufacture hoses according to machine models, samples, drawings and connector dimensions.

Factory-Direct Production

Direct manufacturing supports faster technical communication and competitive sourcing costs.

Stable Temperature Design

Uniform heating and insulation help maintain more consistent adhesive conditions.

Short Lead Time

We support original equipment production, replacement hoses and project-based orders.

Sample Support

Samples can be supplied for machine compatibility testing.
