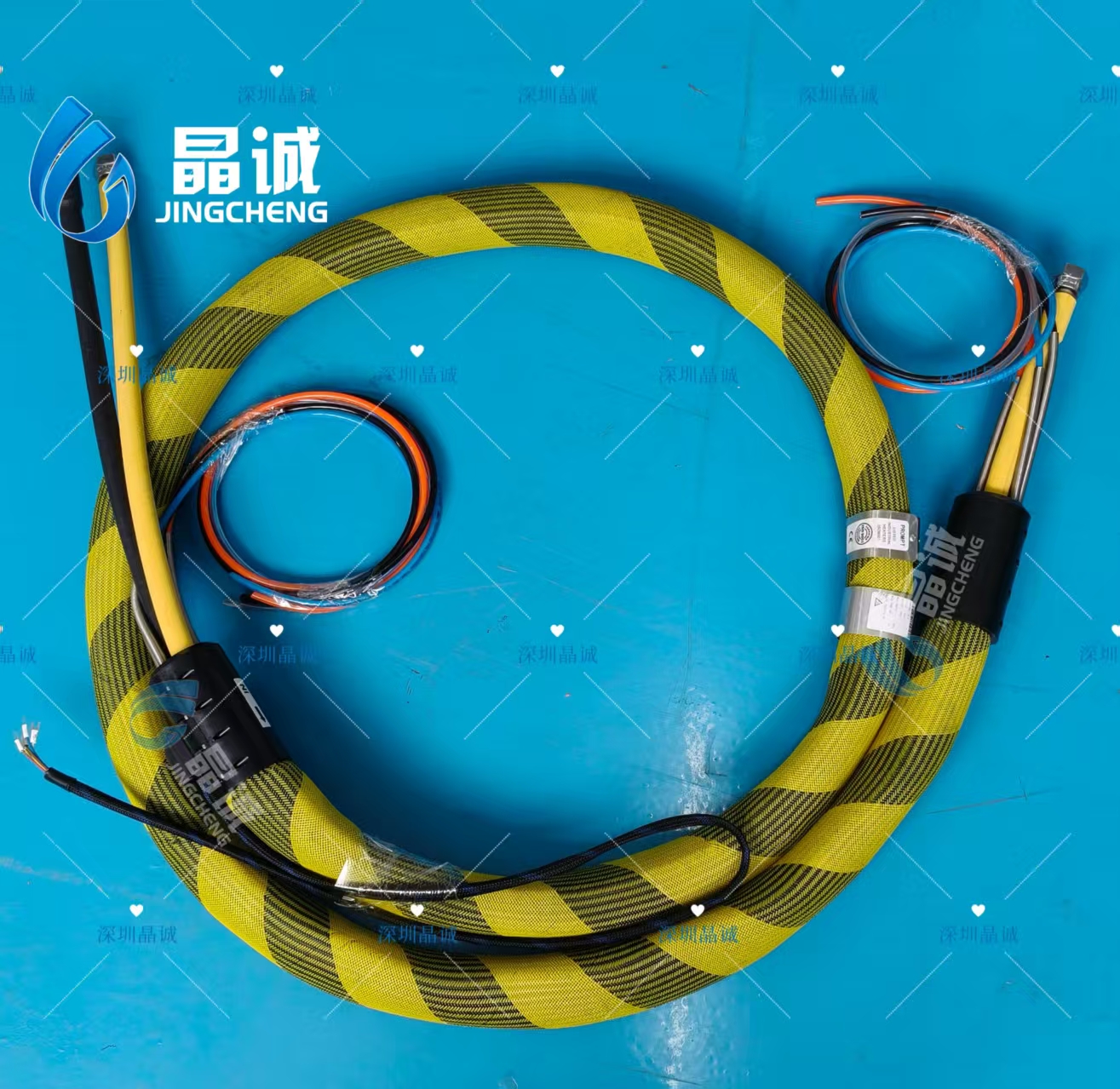

An automotive adhesive dispensing heated hose is designed for vehicle production lines that use heated adhesives, sealants and other temperature-sensitive materials. It connects the adhesive supply or pumping system to the dispensing equipment while maintaining material temperature and supporting high-pressure operation.
Shenzhen Jingcheng High-tech manufactures customized heated hoses for domestic and imported adhesive pumps, including systems associated with SCA, ATN and GRACO equipment. The hose can be customized according to pressure, temperature, hose length, inner diameter, fittings, sensor and electrical interface.
Automotive bonding and sealing materials can become more viscous when their temperature drops. This may cause:
Unstable adhesive flow
Increased pump load
Inconsistent dispensing volume
Reduced bead quality
Material blockage
Longer production downtime
Higher maintenance costs
A properly designed heated hose helps maintain more consistent material temperature between the adhesive pump and dispensing head.
This hose is suitable for vehicle assembly lines, body sealing equipment, structural adhesive systems and automated glue dispensing stations.
The hose can be customized for imported and domestic adhesive pumps, including SCA, ATN and GRACO-related equipment configurations.
Selected specifications can support working pressures up to 475 bar, depending on hose size, temperature, fittings and complete assembly design.
The standard product supports temperatures up to 200°C. Other temperature requirements can be evaluated according to the adhesive and production process.
Uniformly arranged heating elements help reduce temperature differences along the hose and minimize cold spots.
The insulation structure helps reduce heat loss while controlling the outer surface temperature.
Hose length, fittings, voltage, power, sensor, electrical connector and outer protection can be matched to the production equipment.
Automotive body adhesive dispensing
Structural adhesive transfer
Seam sealing systems
Glass bonding equipment
Battery pack adhesive dispensing
Underbody sealing equipment
Robotic glue dispensing systems
Automotive coating and bonding lines
SCA adhesive pump systems
ATN dispensing equipment
GRACO material delivery systems
High-pressure heated sealant transfer
Item | Available Options |
|---|---|
Product Name | Automotive Adhesive Dispensing Heated Hose |
Application | Automotive production and adhesive dispensing |
Maximum Temperature | Up to 200°C |
Working Pressure | Design-dependent, up to 475 bar in listed sizes |
Heating Structure | Uniformly arranged heating elements |
Voltage | 110V / 220V / 380V / Custom |
Sensor | PT100 / PT1000 / J type / K type / Custom |
Hose Length | Customized |
Fittings | Metric / BSP / NPT / Custom |
Equipment Compatibility | SCA / ATN / GRACO / Other systems |
Electrical Connector | Customized |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
3/8” | 15.7 mm | 475 bar / 6888 psi | 1900 bar / 27550 psi | 110 mm |
1/2” | 19.7 mm | 450 bar / 6525 psi | 1800 bar / 26100 psi | 150 mm |
5/8” | 22.5 mm | 400 bar / 5800 psi | 1600 bar / 23200 psi | 175 mm |
3/4” | 20 mm | 300 bar / 4350 psi | 1200 bar / 17400 psi | 200 mm |
1” | 25 mm | 275 bar / 3988 psi | 1100 bar / 15950 psi | 240 mm |
Final pressure capability must be confirmed according to working temperature, hose size, fittings and complete assembly design.
A correctly matched heated hose can help:
Maintain stable adhesive viscosity
Improve dispensing consistency
Reduce material blockage
Lower pump load
Reduce cold spots
Improve robotic dispensing accuracy
Minimize unplanned production stoppages
Reduce replacement frequency caused by incorrect specifications
Please provide:
Adhesive or sealant type
Working temperature
Working pressure
Hose length
Inner diameter
Voltage and power
Temperature sensor
Machine-side fitting
Dispensing-side fitting
Electrical plug
Pump or equipment model
Original hose photos or drawing
Minimum bending radius
We manufacture customized heated hoses directly, helping customers shorten the supply chain and communicate technical requirements efficiently.
We provide reinforced heated hose structures for demanding automotive dispensing systems.
Hoses can be produced according to equipment models, drawings, samples and connector dimensions.
We support replacement hoses, maintenance requirements and original equipment projects.
Samples can be produced for equipment compatibility testing.
