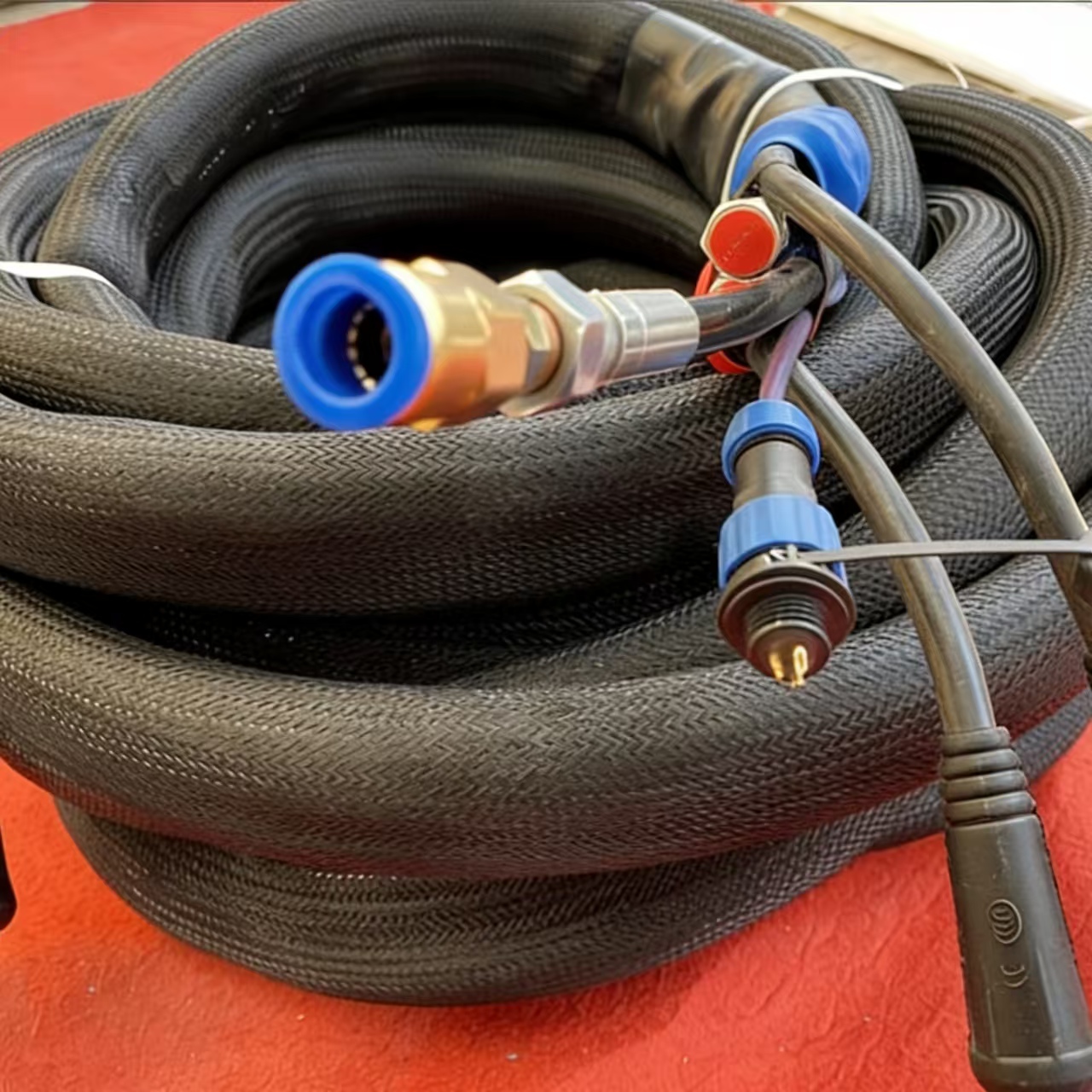

In waterproofing and non-curing spray applications, hose performance has a direct impact on heating consistency, material flow, and jobsite reliability. When the hose cannot maintain temperature under outdoor or unstable working conditions, the material may thicken, cool too quickly, or spray unevenly, leading to reduced efficiency and inconsistent application quality.
That is why a purpose-built waterproof construction equipment hose matters. Shenzhen Jingcheng’s hose for waterproof construction equipment is designed for demanding field environments where stable heating, reliable insulation, and long service life are essential. According to your catalog, this product is suitable for various waterproof construction equipment and non-curing spray equipment, and has earned strong market recognition for its stability and durability in harsh weather and harsh construction environments.
This hose is specifically developed for waterproof construction equipment and non-curing spray systems, rather than generic industrial transfer use. That makes it more relevant for customers who need dependable heated transfer in material application equipment.
One of the strongest selling points in your catalog is that this hose is recognized for very high stability and durability in harsh weather and harsh construction environments. For contractors and equipment manufacturers, this is a meaningful advantage because jobsite conditions are often much more demanding than indoor factory use.
The product has a maximum heat resistance of up to 230°C, with higher-temperature customization available on request. This temperature capability supports many heated waterproofing and non-curing spray applications where media temperature must remain stable during transfer.
The heating layer is made of uniformly braided heating elements, which helps reduce temperature distribution differences along the inner wall. In real applications, that means more stable material temperature and more consistent transfer performance.
Your catalog states that the hose is made with high-insulation-efficiency materials while considering surface temperature. This helps reduce heat loss and supports reliable temperature maintenance during use.
Item | Our Data |
|---|---|
Product Name | Waterproof Construction Equipment Hose |
Product Category | High Temperature Low Pressure Heated Hose |
Main Applications | Various waterproof construction equipment, non-curing spray equipment |
Industry Experience | Long-term cooperation with leading companies in the waterproof construction equipment industry since 2013 |
Jobsite Performance | Highly praised for stability and durability in harsh weather and harsh construction environments |
Max Heat Resistance | Up to 230°C |
Higher Temperature Option | Available on request |
Heating Structure | Uniformly braided heating elements |
Insulation Design | High-efficiency insulation materials |
The above product details come directly from the waterproof construction equipment hose section in your catalog.
I.D. | O.D. (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
5/8" | 19 | 88 | 1269 | 350 | 5075 | 180 |
3/4" | 22.6 | 85 | 1234 | 340 | 4930 | 260 |
1" | 29.5 | 75 | 1088 | 300 | 4350 | 300 |
These size and pressure specifications are listed in the parameter table shown with this product section.
These specifications help buyers quickly evaluate whether the hose is suitable for equipment layout, heated material transfer, and on-site installation conditions.
For example:
the 230°C maximum temperature supports many heated waterproofing material transfer needs,
the larger inner diameter options are useful for higher flow requirements,
and the pressure and bend radius data help determine whether the hose fits the machine design and routing space.
For waterproofing and spray applications, hose selection is not only about heating. It is also about flow stability, durability, and matching the real working environment.
This product is well suited for:
waterproof construction equipment
non-curing spray equipment
heated transfer systems for waterproofing materials
outdoor construction heating applications
equipment operating in harsh weather or harsh jobsite environments
These applications and use conditions are explicitly described in your catalog.
Your product catalog states that Jingcheng has been deeply involved in customized heated hose solutions and can tailor different insulated heated hose types according to industry needs, temperature, viscosity, and flow characteristics of the medium. That capability is highly relevant for waterproofing applications, where working materials and field conditions can vary significantly from one machine or project to another.
For buyers in this segment, that means you are not just supplying a standard hose. You are offering a heated hose solution built around real construction equipment requirements and field performance expectations.
