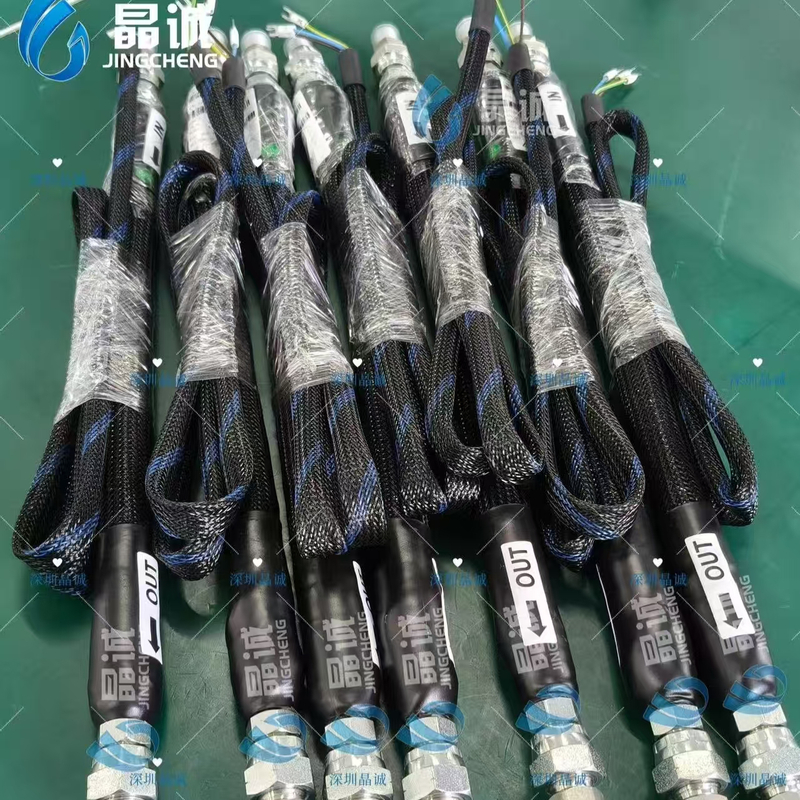

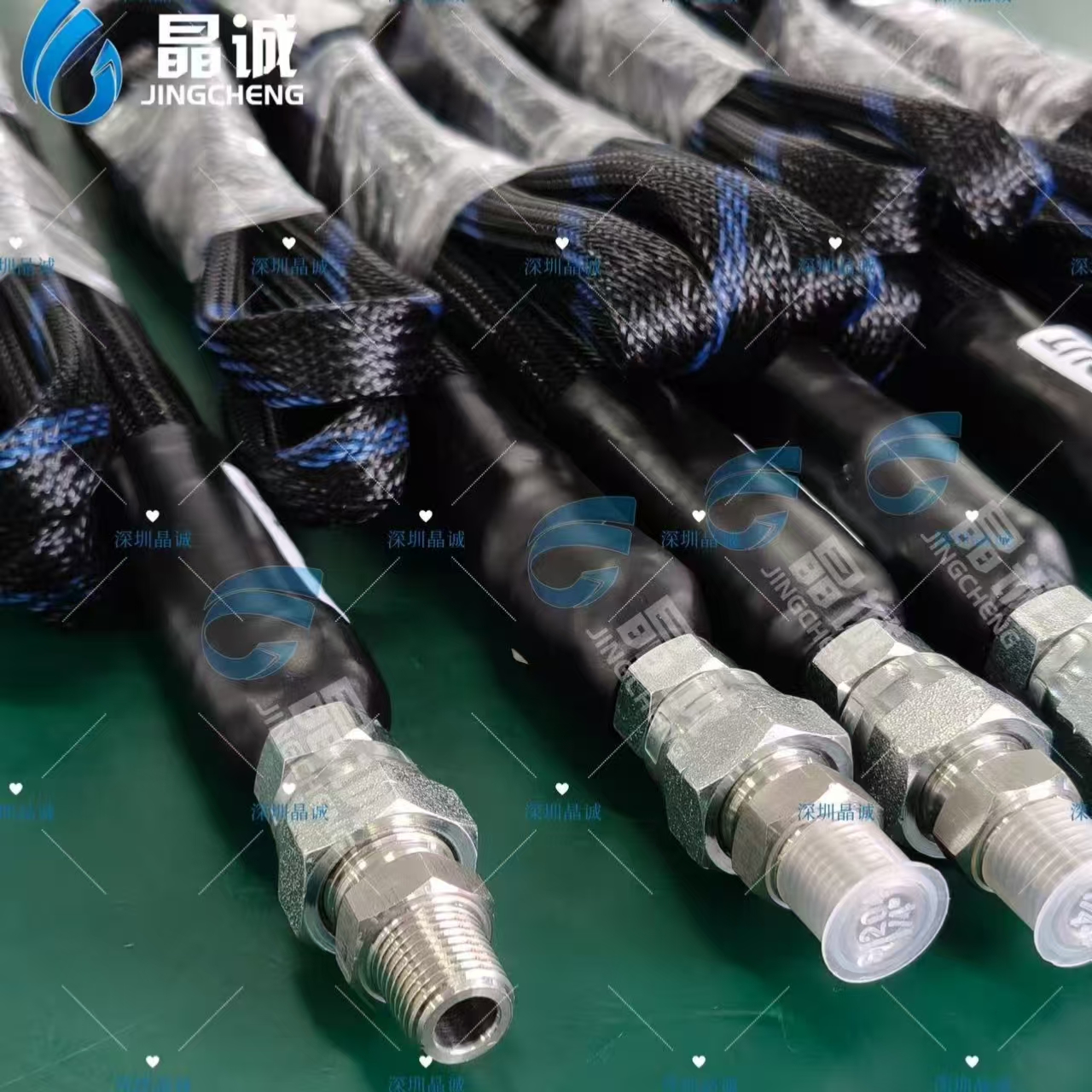

Automotive Production Line Heated Hose
Automotive production lines don’t tolerate unstable flow. When temperature drops in the hose, viscous media can thicken, flow becomes inconsistent, and the line may stop for cleaning or troubleshooting. Heated hoses are designed for insulation + heat tracing to help prevent viscous fluids from solidifying/freezing and from excessive viscosity increase during transfer.
This automotive production line hose is engineered for adhesive/dispensing systems used on the line—commonly paired with glue pumps such as SCA, ATN, and GRACO.
Our solutions have also been applied across industries including automotive coating production and hot melt transfer.
Max operating temperature: up to 200°C (design-dependent; higher temperature can be discussed)
Working pressure: up to 475 bar / 6888 psi (design-dependent; see table)
Burst pressure: up to 1900 bar / 27550 psi (design-dependent; see table)
Minimum bend radius reference: 110–240 mm (size-dependent; see table)
Uniform braided heating layer + high-efficiency insulation to reduce inner-wall temperature variation (design-dependent)
On an automotive line, any temperature drift can cause flow instability and quality issues. A heated hose keeps the transfer path more temperature-stable, helping reduce viscosity spikes and preventing material from freezing/solidifying—so you get fewer clogs, fewer line stops, and more consistent dispensing.
This model is positioned for automotive glue/dispensing pump systems (including SCA/ATN/GRACO applications), where reliable pressure capability and stable temperature delivery are critical.
Built for automotive dispensing pump systems (SCA / ATN / GRACO and similar)
Insulation + heating structure with braided heating elements for more uniform temperature (design-dependent)
High-pressure hose construction options matched to real line pressure and routing needs (design-dependent)
| ID Size | OD (mm ±0.2) | Working Pressure (bar / psi) | Burst Pressure (bar / psi) | Min Bend Radius (mm) |
|---|---|---|---|---|
| 3/8” | 15.7 | 475 / 6888 | 1900 / 27550 | 110 |
| 1/2” | 19.7 | 450 / 6525 | 1800 / 26100 | 150 |
| 5/8” | 22.5 | 400 / 5800 | 1600 / 23200 | 175 |
| 3/4” | 20 | 300 / 4350 | 1200 / 17400 | 200 |
| 1” | 25 | 275 / 3988 | 1100 / 15950 | 240 |
Selectable options include voltage, sensors, length, diameter, temperature/pressure targets, power rating, and fitting standards.
Voltage: 380Vac / 220Vac / 110Vac / 12Vdc
Sensors: J / K / NI120 / PT100 / PT1000
Length: 0.1M / 3M / 4.5M / 5M / 6M / 10M (and others)
Diameter options: Φ8 / Φ12 / Φ16 / Φ19 / Φ25 (and others)
Max temperature target: 400°C / 200°C / 120°C / 100°C (and others)
Working pressure target: 4 / 10 / 20 / 35 MPa (and others)
Power (W/M): 110 / 150 / 170 / 200 W/M (and others)
End fittings (both ends): US / UK / Metric (and others)
Application point on the line (dispensing / adhesive transfer / coating-related)
Media type + required temperature setpoint
Working pressure (continuous/peak) + safety margin
Hose ID/OD, length, routing constraints (minimum bend radius)
Power supply (AC/DC, voltage, phase if applicable)
Sensor requirement (PT100/PT1000/J/K/NI120 or none)
End fitting standard and sizes on both ends (US/UK/Metric)
Safety requirements: avoid over-bending and lateral twisting
Inquiry → Spec confirmation → Quotation → Production → Inspection & packing → Shipment.
