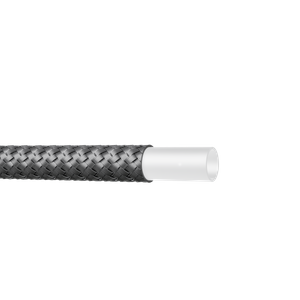

A PTFE steel wire wound braided hose is designed for demanding fluid systems requiring high pressure resistance, chemical compatibility, flexible bending performance and relatively lightweight construction.

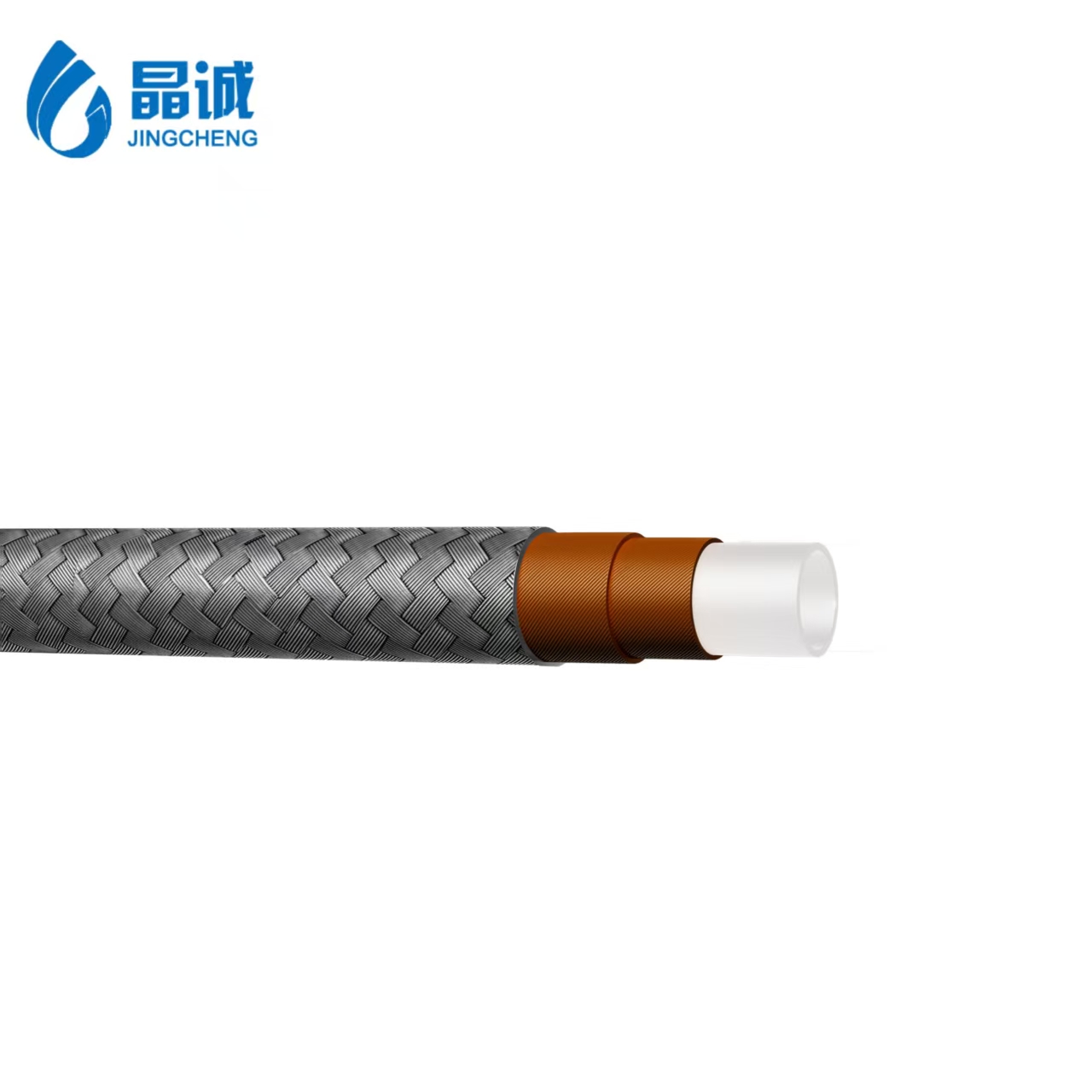

The JCC-03100-PTFE series uses a straight PTFE inner tube. One or two layers of copper-plated steel wire are wound around the tube as middle reinforcement, while a 304 stainless steel wire braid forms the external protective and pressure-reinforcing layer.
The catalog lists this hose for fuel, gas, strong acids, strong alkalis and various compatible organic solvents. Applications include fuel, coolant and lubricant pipelines, hydraulic machinery, trains, automobiles, ships, aircraft and other transportation or aerospace-related fluid systems.
The straight PTFE inner tube provides:
Resistance to many chemicals
A low-friction flow path
Flexible bending performance
Reduced hose weight
Compatibility with fuels and solvents
One or two wire-winding layers provide:
Additional pressure reinforcement
Structural support
Flexible bending performance
Improved resistance to pressure loading
The catalog describes the reinforcement as copper-plated steel wire rather than pure copper wire.
The external braid provides:
Mechanical protection
Additional pressure resistance
Better hose stability
Protection against external damage
Vehicle, transport and industrial fluid lines may experience:
High working pressure
Vibration
Repeated movement
Compact installation routes
Temperature changes
Fuel or solvent exposure
Weight limitations
Harsh working environments
The wire-wound construction is designed to combine high pressure capability with flexible hose performance.
The listed 1/2" model provides a reference working pressure of:
44 MPa / 6,394.5 psi
The same 1/2" model has a listed burst pressure of:
176.4 MPa / 25,578 psi
The catalog specifically describes the inner PTFE tube as lightweight and flexible in bending.
The catalog operating range is:
-65°C to +220°C
The hose can be evaluated for compatible:
Fuel
Gas
Coolants
Lubricants
Strong acids
Strong alkalis
Organic solvents
Length, fittings, connection threads and reinforcement configuration can be customized.
Fuel delivery systems
Gas transfer pipelines
Coolant circulation
Lubricant delivery
Hydraulic machinery
Railway equipment
Automotive fluid lines
Marine pipelines
Aircraft fluid systems
Rocket and spacecraft pipelines
Satellite equipment
Hazardous chemical transfer
The catalog lists these application fields. Final use in safety-critical vehicle or aerospace systems requires confirmation against the applicable engineering and qualification requirements.
Item | Specification |
|---|---|
Product Name | PTFE Steel Wire Wound Braided Hose |
Model Series | JCC-03100-PTFE |
Inner Tube | Straight PTFE |
Middle Reinforcement | One or two copper-plated steel wire winding layers |
Outer Reinforcement | 304 stainless steel braid |
Temperature Range | -65°C to +220°C |
Inner Diameter Range | 1/2" to 1" |
Main Advantages | Lightweight, flexible and high-pressure reinforced |
Media | Fuel, gas, acids, alkalis, coolant, lubricant and solvents |
Catalog References | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | PTFE Tube OD | Finished Hose OD | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|---|
JCC-03113-PTFE | 1/2" / 12.7 mm | 15.1 mm | 19.3 mm | 6,394.5 psi / 44 MPa | 25,578 psi / 176.4 MPa | 90 mm |
JCC-03116-PTFE | 5/8" / 15.8 mm | 18.8 mm | 22.8 mm | 5,165.6 psi / 36 MPa | 20,663 psi / 142.5 MPa | 120 mm |
JCC-03119-PTFE | 3/4" / 18.8 mm | 21.8 mm | 26.2 mm | 4,756 psi / 33 MPa | 19,024 psi / 131.2 MPa | 150 mm |
JCC-03125-PTFE | 1" / 25 mm | 29 mm | 33 mm | 3,918.6 psi / 27 MPa | 15,675 psi / 108.1 MPa | 225 mm |
These figures are catalog reference values. Final allowable pressure depends on temperature, medium, fittings, vibration, movement and complete hose assembly design.
A correctly selected wire-wound PTFE hose can help:
Reduce total hose-assembly weight
Support high-pressure fluid transfer
Maintain flexible routing
Resist fuels and solvents
Transfer coolants and lubricants
Accommodate equipment vibration
Reduce PTFE tube expansion
Improve connection stability
Support customized replacement projects
Match non-standard equipment interfaces
Please provide:
Transferred medium
Fuel, coolant or lubricant type
Chemical concentration
Working temperature
Normal working pressure
Maximum pressure
Hose length
Required inner diameter
Vibration and movement conditions
Minimum bending radius
Inlet and outlet fittings
Equipment model or drawing
