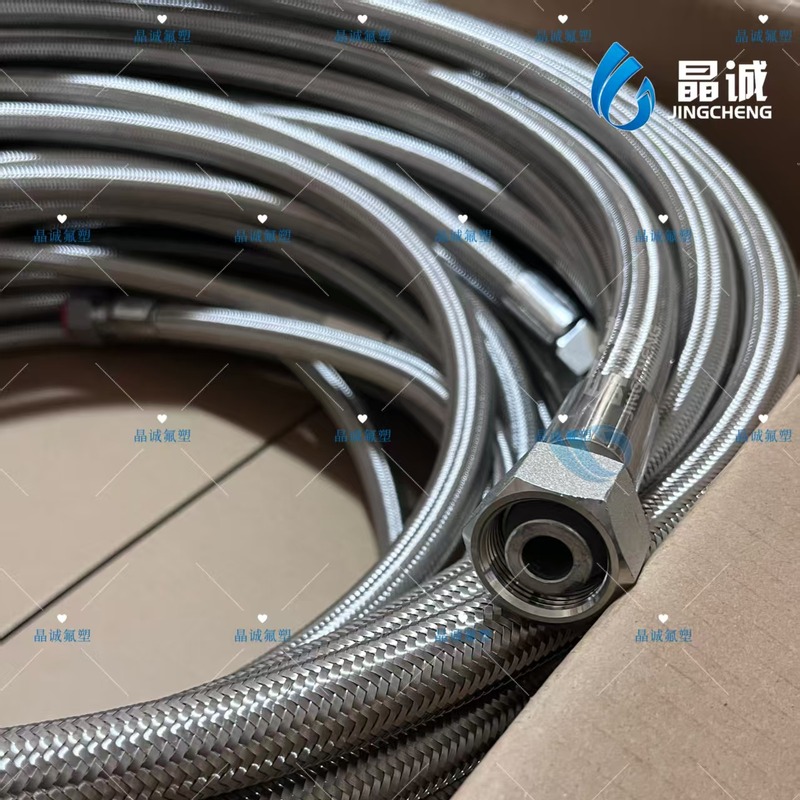

Hydraulic and fluid-power circuits need hose that holds high continuous pressure, survives pressure pulsation and stays compatible with whatever medium the system carries, whether gas, mineral oil, water-glycol or an aggressive chemical. Rubber hydraulic hose must be matched to each fluid and ages with heat, and single-braid hose can run out of pressure margin in mid-range sizes. JINGCHENG Double-Layer PTFE Braided Hose (series JCC-01200-PTFE) reinforces a smooth PTFE inner tube with two layers of high-strength 304 stainless steel braid, giving working pressures up to 40 MPa across sizes from 1/4" to 1-1/4" and service from -70°C to +260°C.
Smooth PTFE inner tube: A clean, low-friction PTFE bore that does not swell or break down in hydraulic oils, gases, water-based fluids or most chemicals, helping protect valves, pumps and actuators downstream.

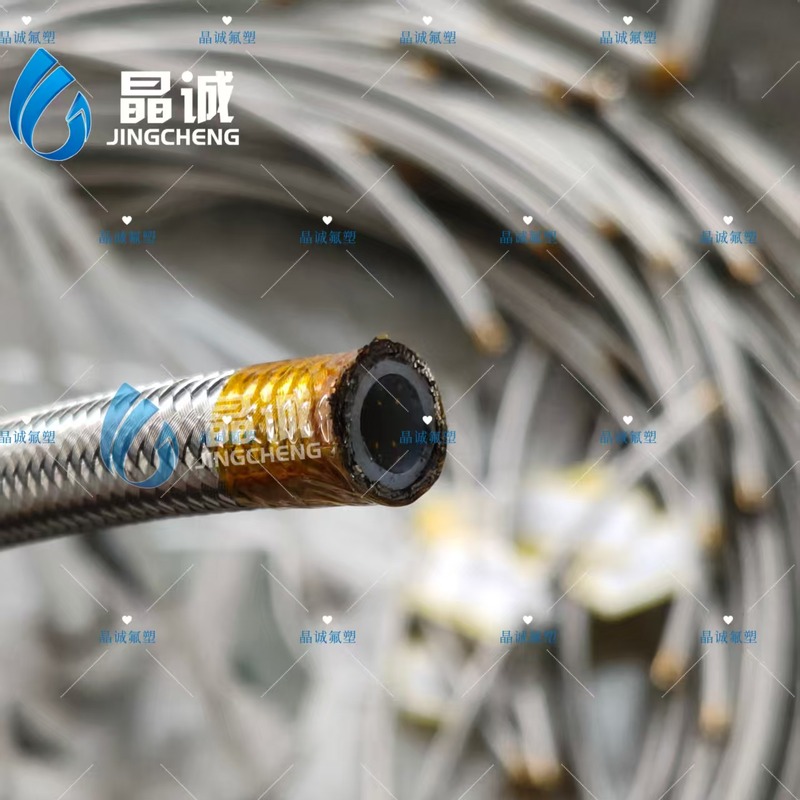

Two layers of 304 stainless steel braid: The double braid carries hoop and axial loads, improves resistance to pressure pulsation and protects the liner from external abrasion.
High working and burst pressures: 40 MPa working / 120.9 MPa burst on the 1/4" size, 32 MPa on 3/8", 27 MPa on 1/2" and 14 MPa on 1-1/4".
Wide temperature range: -70°C to +260°C for cold starts as well as hot hydraulic and process fluids.
Corrosion-resistant exterior: The 304 stainless steel outer braid suits humid, outdoor and plant environments.
The JINGCHENG PTFE hose catalog lists the JCC-01200-PTFE series for the hydraulic transmission of gas-based, oil-based and water-based fluids and chemical materials. Typical installations include:
Hydraulic systems: Pressure and return lines on presses, injection molding machines, machine tools and mobile hydraulic equipment.
Gas and pneumatic transmission: High-pressure gas lines on test benches and industrial equipment.
Water-based fluid circuits: Water-glycol and other water-based hydraulic fluids where a non-swelling PTFE bore extends service life.
Chemical material transmission: Pressurized transfer of chemical materials that would attack rubber-lined hoses.
Part No. | Nominal Size | Inner Diameter (mm ±0.2) | Tube Outer Diameter (mm ±0.2) | Braided Outer Diameter (mm ±0.2) | Working Pressure (MPa) | Burst Pressure (MPa) | Min. Bend Radius (inch) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|
JCC-01206-PTFE | 1/4" | 6.3 | 8.3 | 10.6 | 40 | 120.9 | 3.27 | 83 |
JCC-01208-PTFE | 5/16" | 7.9 | 10.3 | 12.8 | 35 | 105 | 3.27 | 83 |
JCC-01210-PTFE | 3/8" | 9.5 | 11.9 | 15 | 32 | 96.9 | 4.13 | 105 |
JCC-01213-PTFE | 1/2" | 12.6 | 15 | 18.3 | 27 | 79.8 | 5.51 | 140 |
JCC-01216-PTFE | 5/8" | 16.3 | 20.3 | 22 | 21 | 62.7 | 6.93 | 176 |
JCC-01219-PTFE | 3/4" | 19.5 | 23.5 | 26.4 | 20 | 58.5 | 8.27 | 210 |
JCC-01225-PTFE | 1" | 25 | 29 | 32.6 | 17 | 51.6 | 11.22 | 285 |
JCC-01232-PTFE | 1-1/4" | 31.5 | 35.5 | 39.5 | 14 | 42 | 13.39 | 340 |
Data source: JINGCHENG PTFE Hose Catalog (JCC-01200-PTFE Series). Operating temperature range: -70°C to +260°C. All specifications can be customized according to customer parameters.
JCC-01200 vs. JCC-01100 Single-Braid Smooth Bore Hose: Single-braid hose is lighter and bends more tightly. The second braid on JCC-01200 raises pressure capacity in mid and large sizes, for example 27 MPa vs. 23 MPa on 1/2" and 17 MPa vs. 10 MPa on 1", and adds a 1-1/4" size.
JCC-01200 vs. JCC-02100 Wire Bundle Braided Hose: JCC-02100 uses a wire-bundle outer braid and extends up to 2" for heavy spraying, steam and oil conveying; JCC-01200 is the compact double-braid choice from 1/4" to 1-1/4".
PTFE vs. rubber hydraulic hose: PTFE is compatible with gas-, oil- and water-based fluids and most chemicals and stays stable up to +260°C, so one hose type can serve several circuits.
Pressure: Keep system pressure, including pressure peaks, within the rated working pressure for the selected size.
Bend radius: Route bends at or above the listed minimum bend radius (83 mm on 1/4" up to 340 mm on 1-1/4") and avoid sharp bends right at the fittings.
Temperature and media: Confirm fluid and ambient temperatures stay within -70°C to +260°C, and send us your media list for critical services.
Installation: Align the ends before tightening, avoid twisting the braid, and leave slack for the small length change under pressure.
Custom assemblies: JINGCHENG supplies bulk double-braid hose and custom crimped assemblies with JIC, NPT, BSP, metric or flange ends to your drawings. Contact us for samples or a quotation.
