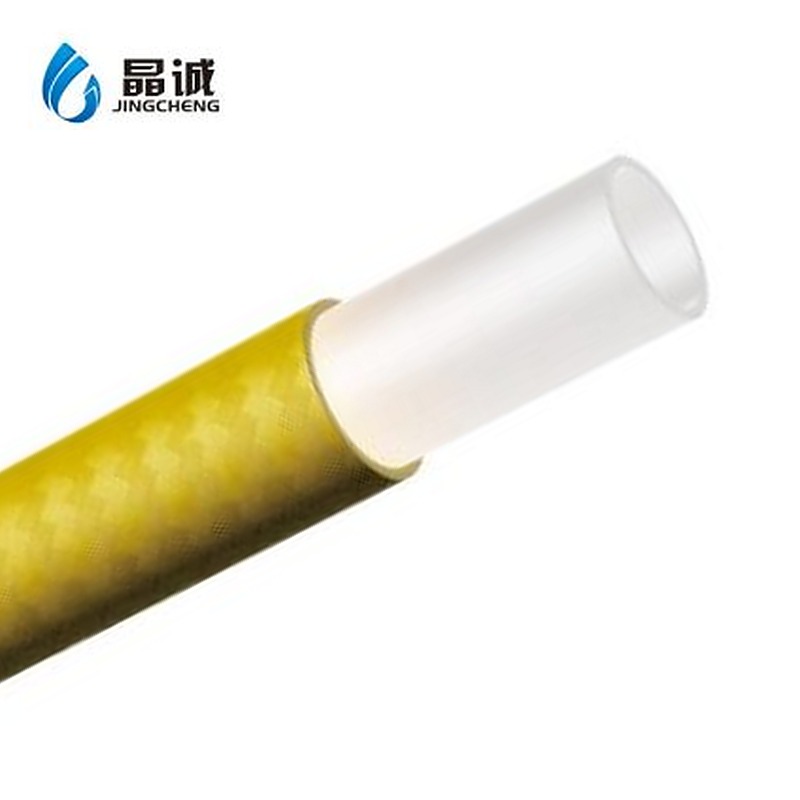

Fuel, coolant, lubricant, hydraulic and chemical pipelines on aircraft, rockets, spacecraft, satellites, rail vehicles, automobiles and ships must handle high operating pressures without the weight penalty of metallic reinforcement. At the same time, fast-flowing fuels, gases and organic solvents can generate electrostatic charge inside unconditioned tubing. JINGCHENG Lightweight Anti-Static Aramid Fiber Braided PTFE Hose (series JCC-04100-PTFE) pairs a smooth PTFE (Teflon) straight inner tube with a high-strength aramid woven outer braid, delivering an excellent anti-static effect, low weight and working pressures from 24.5 MPa up to 40.0 MPa across a -65°C to +220°C temperature range.

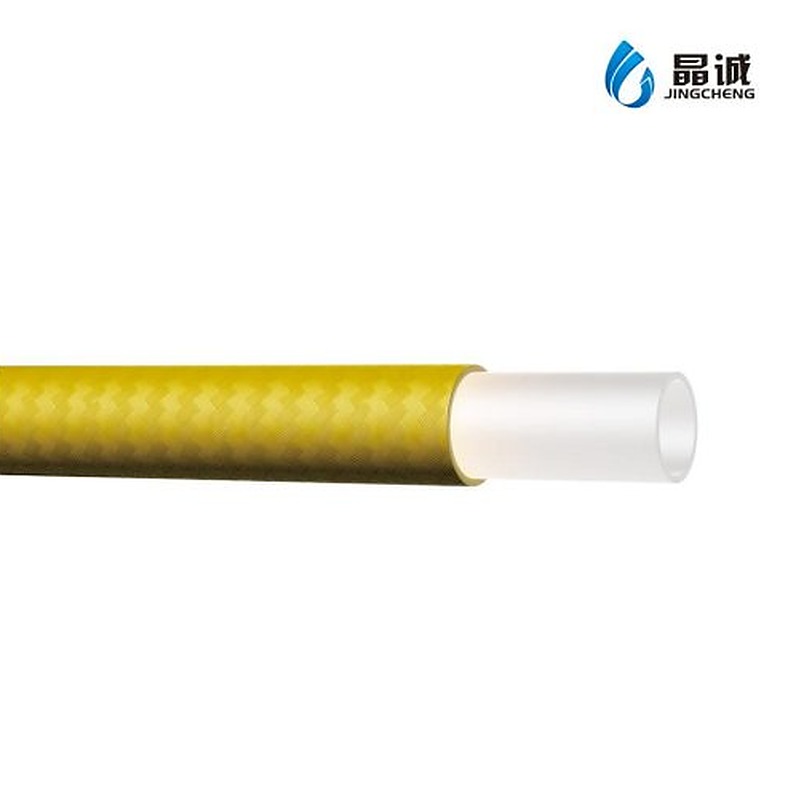

Aramid woven outer reinforcement: A high-tenacity aramid fiber braid encloses the inner tube, providing high tensile and hoop strength at a fraction of the weight of metallic wire braids.
Smooth PTFE straight inner tube: The inner fluid path is a clean, non-stick PTFE straight tube that resists almost all industrial chemicals and keeps friction loss low.
Excellent anti-static effect: Engineered to help prevent electrostatic charge accumulation when transferring flammable fuels, gases and organic solvents.
High working and burst pressure ratings (4:1 ratio): Rated at 40.0 MPa (5800 psi) working pressure and 160 MPa (23200.0 psi) burst pressure on the 3/8" size, 37.5 MPa on 1/2", and 24.5 MPa working / 98 MPa burst on the 1" size.
Wide operating temperature window (-65°C to +220°C): Stays flexible and reliable from sub-zero cold-start and high-altitude environments to hot engine bays and process lines.
Broad media compatibility: Suitable for fuel, gas, strong acids, strong alkalis and various organic solvents.
Based on the JINGCHENG PTFE hose catalog (JCC-04100-PTFE series), this aramid braided lightweight PTFE hose is designed for the transmission of hazardous chemicals and pressurized fluids across weight-sensitive and high-performance systems:
Aerospace and aviation pipelines: Lightweight fuel, coolant, lubricant and hydraulic delivery pipelines on airplanes, rockets, spacecraft and satellites where mass savings and pressure reliability are critical.
Rail, automotive and marine systems: High-pressure fuel, cooling, lubrication and hydraulic lines on trains, automobiles and ships.
Hazardous chemical and solvent transmission: Safe transfer of strong acids, strong alkalis, gases and organic solvents where chemical inertness and anti-static performance are required.
Hydraulic machinery: High-pressure hydraulic transmission lines on mobile and industrial machinery requiring flexible, corrosion-free non-metallic outer reinforcement.
Part No. | Nominal Size | Inner Diameter (mm ±0.2) | Tube Outer Diameter (mm ±0.2) | Braided Outer Diameter (mm ±0.2) | Working Pressure (psi) | Working Pressure (MPa) | Burst Pressure (psi) | Burst Pressure (MPa) | Min. Bend Radius (inch) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
JCC-04110-PTFE | 3/8" | 10 | 13.1 | 15.6 | 5800 | 40.0 | 23200.0 | 160 | 3.15 | 80 |
JCC-04113-PTFE | 1/2" | 13 | 16.5 | 18.6 | 5437.5 | 37.5 | 21750.0 | 150 | 5.91 | 150 |
JCC-04116-PTFE | 5/8" | 16 | 19.4 | 23.2 | 4785 | 33.0 | 19140.0 | 132 | 7.09 | 180 |
JCC-04119-PTFE | 3/4" | 19 | 23.1 | 26.6 | 4241.3 | 29.25 | 16965.0 | 117 | 11.81 | 300 |
JCC-04125-PTFE | 1" | 25.4 | 30.5 | 33 | 3552.5 | 24.5 | 14210.0 | 98 | 15.75 | 400 |
Data source: JINGCHENG PTFE Hose Catalog (JCC-04100-PTFE Series). Operating temperature range: -65°C to +220°C. All specifications can be customized according to customer parameters.
JCC-04100 Aramid Braided vs. JCC-01100 / JCC-01200 Stainless Steel Braided Hoses: Replacing metallic 304 wire braid with a high-strength aramid woven layer significantly reduces hose weight while maintaining high working pressures (24.5–40.0 MPa across 3/8" to 1" ID) and adding an excellent anti-static effect.
JCC-04100 Aramid Braided vs. JCC-03100 Steel Wire Spiral Wound Braided Hose: Both series serve fuel, coolant, lubricant, chemical, hydraulic, rail, automotive, marine and aerospace pipelines from -65°C to +220°C. JCC-04100 adds a 3/8" size and focuses on lightweight aramid reinforcement and anti-static performance, while JCC-03100 uses copper-plated steel wire spiral winding plus 304 braid for up to 44 MPa working pressure.
JCC-04100 Aramid Braided vs. JCC-61100 TPU-Covered Braided Hose: When external wipe-down cleanliness and color-coded polyurethane jacketing (black, red or blue) over a 304 stainless steel braid are required, JINGCHENG offers the JCC-61100 series.
Verify size and pressure margin: Choose from the 5 standard sizes (3/8", 1/2", 5/8", 3/4" and 1" ID, 10 mm to 25.4 mm) and keep maximum operating pressure, including surge peaks, within the rated 24.5–40.0 MPa working pressure for that size.
Respect minimum bend radius: Route bends at or above the catalog minimum bend radius (80 mm on 3/8" up to 400 mm on 1") and avoid sharp bends directly behind end fittings.
Protect the aramid braid during installation: Align fittings before tightening to prevent axial twisting, and clamp or sleeve the hose away from sharp metal edges or abrasive moving parts.
Custom assemblies to your parameters: JINGCHENG supplies bulk aramid-braided PTFE hose as well as custom cut-length assemblies with crimped fittings tailored to your drawings. Contact our engineering team with your fluid media, temperature, pressure and connection requirements for a quotation.
