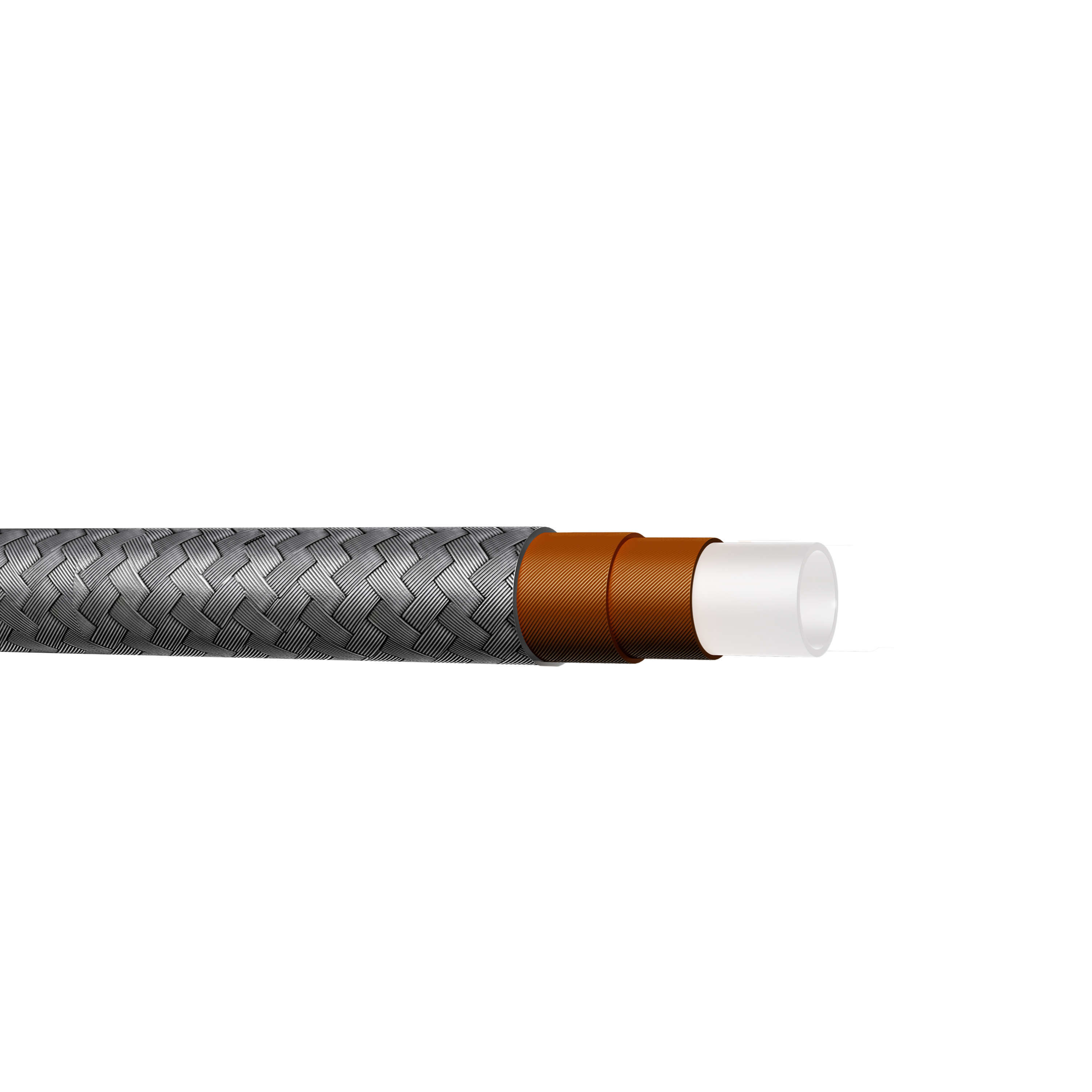

A PTFE steel wire wound braided hose is designed for high-pressure fluid transfer systems that require lightweight structure, flexible bending performance, chemical resistance and strong reinforcement. This hose uses a PTFE inner straight tube, one or two layers of copper-plated steel wire winding as the middle reinforcement, and a 304 stainless steel braided wire layer as the outer reinforcement.
The reinforced structure provides strong pressure performance while maintaining good flexibility. It is suitable for transferring fuel, gas, strong acids, strong alkalis and various organic solvents. It can also be used in fuel, coolant and lubricant delivery pipelines, hydraulic machinery, trains, automobiles, ships, aircraft and other demanding pipeline systems.
Shenzhen Jingcheng High-tech manufactures customized PTFE steel wire wound braided hoses for high-pressure equipment, transportation systems, chemical applications and industrial fluid transfer projects.

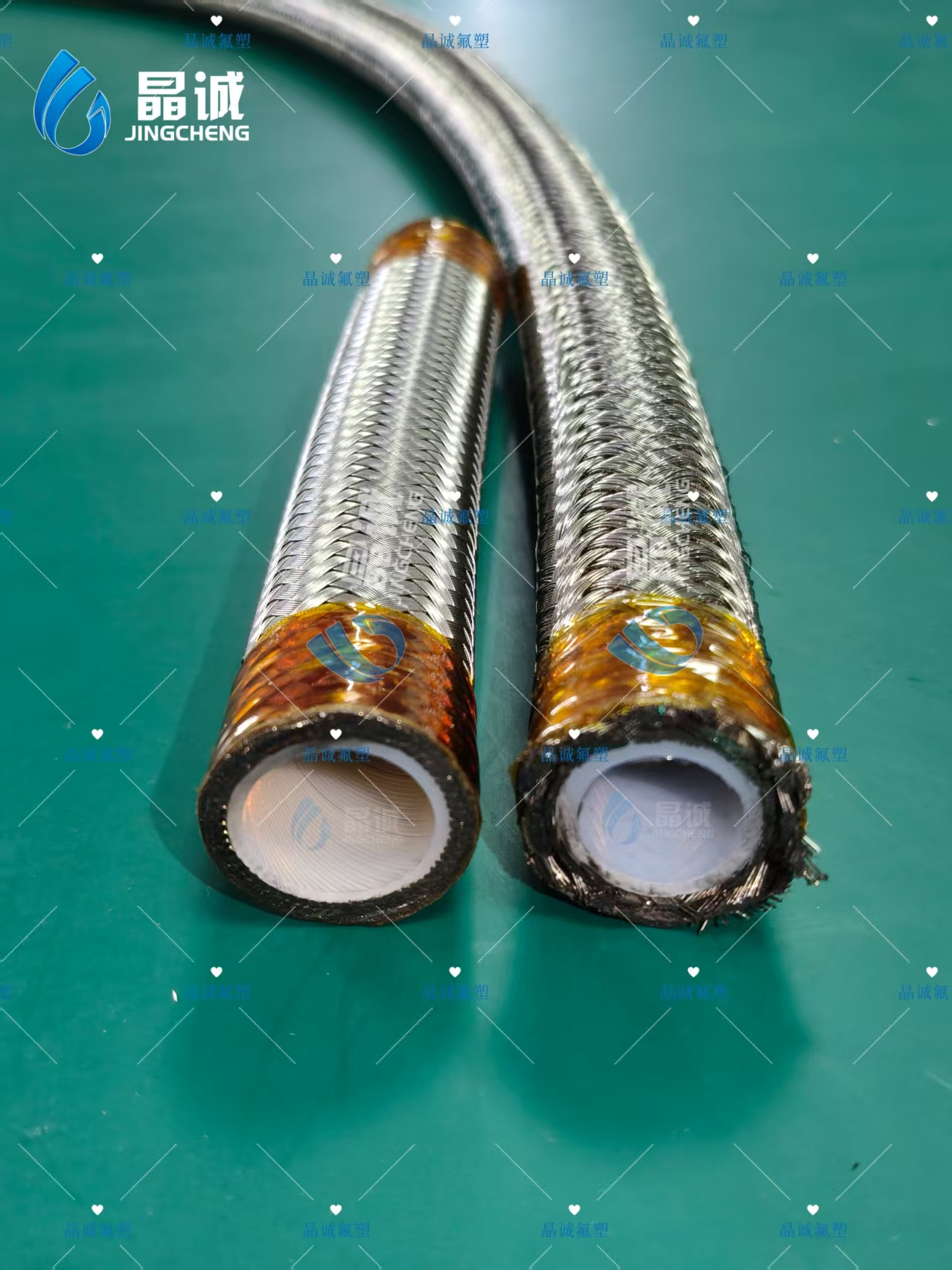

A PTFE steel wire wound braided hose is a reinforced PTFE hose with a special steel wire winding structure. The PTFE inner tube provides chemical resistance and stable fluid compatibility. The copper-plated steel wire winding layer improves reinforcement and bending performance, while the 304 stainless steel outer braid adds mechanical protection and pressure resistance.
This hose is suitable for applications where the transfer line needs both pressure capability and flexible installation.
In fuel, gas, hydraulic and chemical transfer systems, hoses must often resist high pressure, vibration, temperature changes and aggressive media. The wrong hose material or structure can cause leakage, cracking, swelling or premature failure.
A PTFE steel wire wound braided hose provides a reliable solution by offering:
PTFE inner tube for chemical resistance
Copper-plated steel wire winding reinforcement
304 stainless steel braided outer layer
Lightweight structure
Flexible bending performance
Strong pressure resistance
Suitable for fuel, gas, coolant and lubricant pipelines
Temperature range from -65°C to +220°C
Custom hose assembly options
The PTFE inner tube provides excellent resistance to many fuels, gases, acids, alkalis, organic solvents and aggressive media.
The middle layer uses one or two layers of copper-plated steel wire winding, helping improve reinforcement, pressure performance and hose flexibility.
The outer stainless steel braid provides mechanical protection and additional pressure resistance, making the hose suitable for harsh industrial and transportation environments.
This hose is designed to maintain good bending flexibility while providing reinforced strength, making it suitable for complex routing and equipment connection.
The hose supports a wide operating temperature range and can be used in many industrial and transportation fluid systems.
The hose can transfer fuel, gas, strong acids, strong alkalis and various organic solvents, depending on the actual working conditions and design requirements.
Our PTFE steel wire wound braided hose can be used in:
Fuel transfer pipelines
Gas transfer systems
Coolant delivery pipelines
Lubricant delivery pipelines
Hydraulic machinery
Train pipeline systems
Automotive fluid systems
Ship pipelines
Aircraft fluid systems
Chemical transfer systems
Strong acid and alkali transfer
Organic solvent transfer
High-pressure industrial equipment
Item | Available Options |
|---|---|
Product Name | PTFE Steel Wire Wound Braided Hose |
Model Series | JCC-03100-PTFE |
Inner Tube | PTFE straight tube |
Middle Layer | One or two layers of copper-plated steel wire winding |
Outer Layer | 304 stainless steel braided wire |
Temperature Range | -65°C to +220°C |
Inner Diameter | 1/2” to 1” |
Main Advantages | Lightweight, flexible, reinforced, chemical resistant |
Transmission Media | Fuel, gas, strong acids, strong alkalis, organic solvents |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-03113-PTFE | 1/2” / 12.7 mm | 15.1 mm | 19.3 mm | 6394.5 psi / 44 MPa | 25578 psi / 176.4 MPa | 90 mm |
JCC-03116-PTFE | 5/8” / 15.8 mm | 18.8 mm | 22.8 mm | 5165.6 psi / 36 MPa | 20663 psi / 142.5 MPa | 120 mm |
JCC-03119-PTFE | 3/4” / 18.8 mm | 21.8 mm | 26.2 mm | 4756 psi / 33 MPa | 19024 psi / 131.2 MPa | 150 mm |
JCC-03125-PTFE | 1” / 25 mm | 29 mm | 33 mm | 3918.6 psi / 27 MPa | 15675 psi / 108.1 MPa | 225 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional PTFE hose manufacturer specializing in PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. We provide customized hose solutions for hydraulic machinery, automotive systems, trains, ships, aircraft, chemical processing, fuel transfer, cooling systems, lubrication systems and industrial fluid transfer applications.
For global equipment manufacturers, distributors and industrial buyers, we provide factory-direct customized PTFE hose solutions with stable quality, short lead time and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce sourcing cost and improve supply chain efficiency.
The steel wire winding layer and stainless steel braided outer layer provide strong pressure performance and mechanical protection.
The PTFE inner tube is compatible with many fuels, gases, acids, alkalis and organic solvents.
The hose is designed for applications where bending flexibility and pressure resistance are both required.
We can customize hose length, inner diameter, fittings, connector type, bending radius and assembly structure according to drawings, samples or application conditions.
To recommend the correct hose, please provide:
Working medium
Working temperature
Working pressure
Required inner diameter
Required hose length
Minimum bending radius
Connector type or fitting standard
Application industry
Equipment model, drawing or sample photo
Whether one-layer or two-layer winding is required
Whether anti-static PTFE is required
With these details, our engineering team can provide a more accurate specification and quotation.
