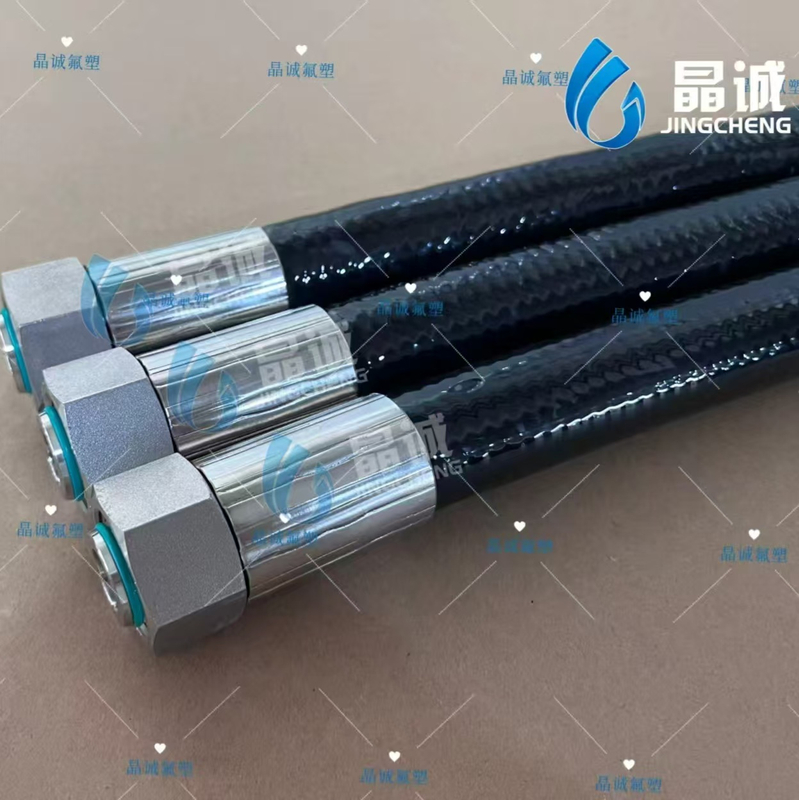

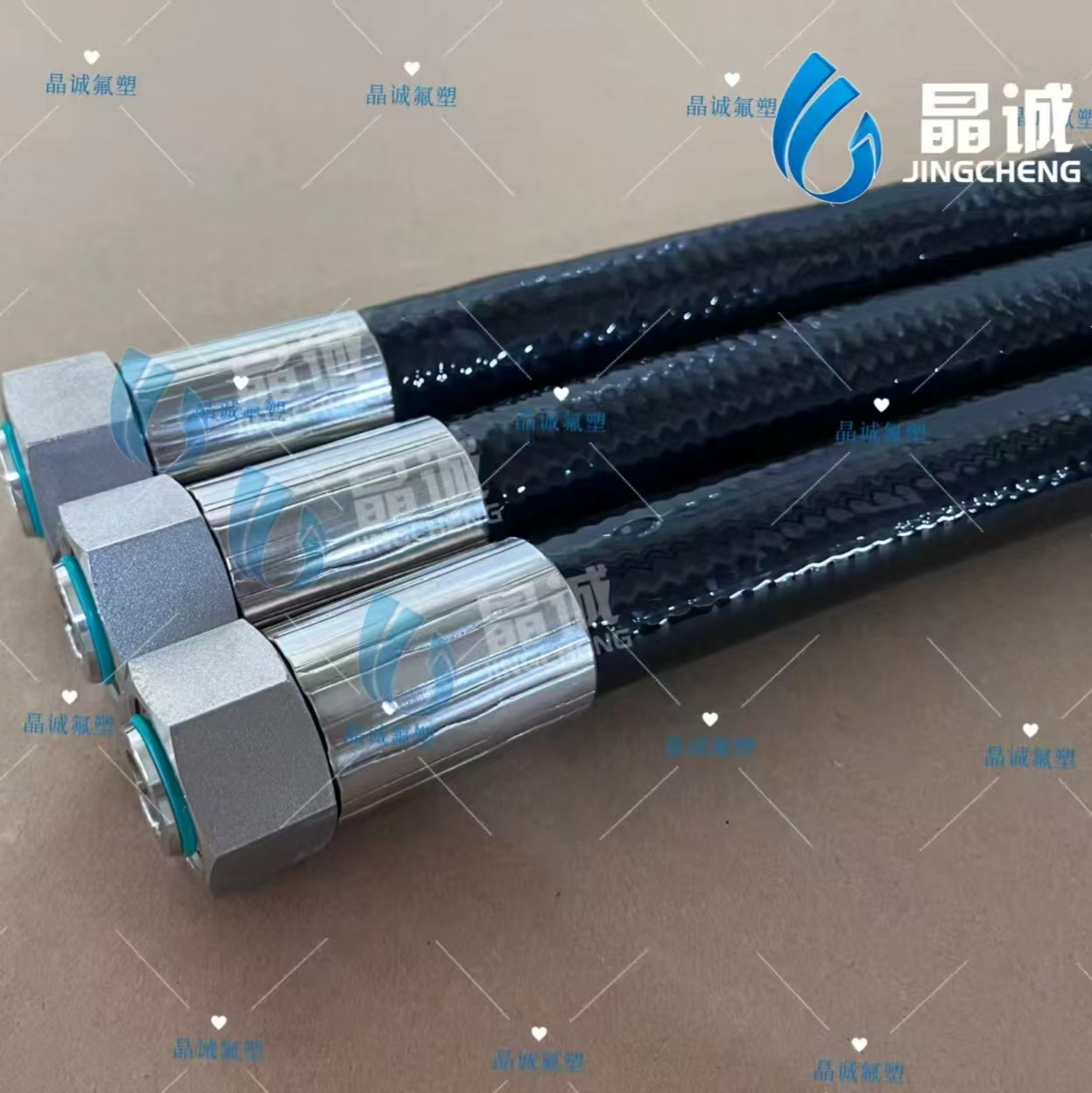

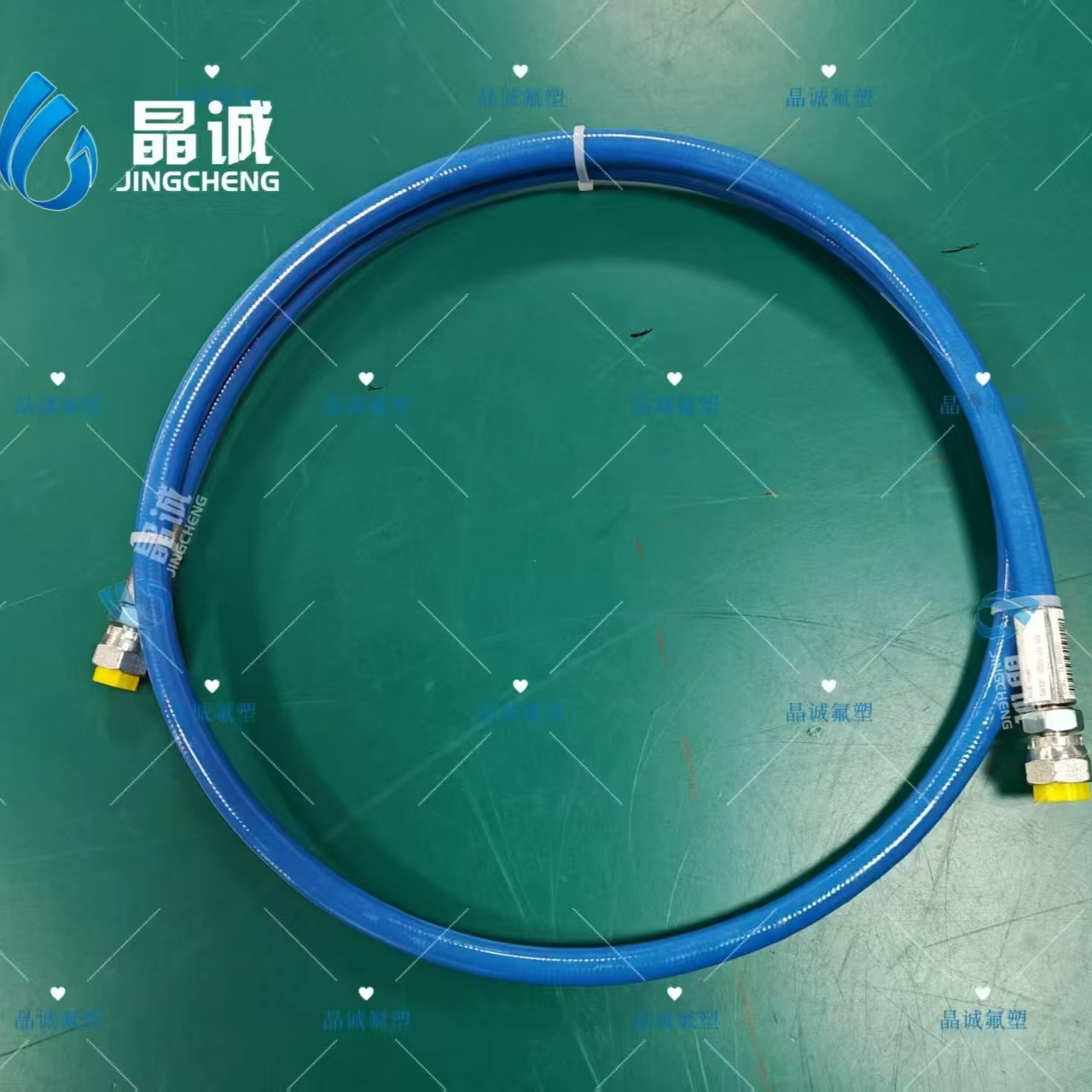

A TPU covered PTFE braided hose is designed for applications that require chemical resistance, pressure performance, outer surface protection and a clean appearance. This hose combines a smooth PTFE inner tube, a high-strength 304 stainless steel braided reinforcement layer and a smooth TPU/PU outer cover.
The PTFE inner tube provides excellent chemical resistance and low permeability, while the stainless steel braid improves pressure resistance and mechanical strength. The TPU outer cover protects the stainless steel braid from wear, contamination and external damage, making the hose suitable for pharmaceutical, food, cosmetics, beverage, chemical and industrial fluid transfer applications.
Shenzhen Jingcheng High-tech manufactures customized TPU covered PTFE braided hoses for global equipment manufacturers, distributors and industrial users. We support custom hose length, fittings, color, pressure rating and assembly structure according to customer requirements.
A TPU covered PTFE braided hose is a reinforced PTFE hose with three main layers:
Smooth PTFE inner tube
304 stainless steel braided reinforcement layer
Smooth TPU/PU outer protective cover
The inner PTFE layer is compatible with many chemicals and solvents. The stainless steel braid improves pressure performance. The outer TPU cover provides a cleaner, smoother and more protective surface compared with exposed stainless steel braid.
This structure is useful when the hose needs both high performance and better external protection.
In pharmaceutical, food, cosmetics and chemical production, hoses are often exposed to cleaning processes, equipment friction, chemical media and installation movement. Exposed stainless steel braided hoses may collect dust, suffer from external wear, or scratch nearby equipment surfaces.
A TPU covered PTFE braided hose helps solve these problems by offering:
Smooth PTFE inner tube for chemical resistance
304 stainless steel braid for pressure reinforcement
TPU/PU outer cover for cleaner surface protection
Good wear resistance
Low permeability
Customizable outer cover colors
Wide temperature range
Suitable for viscous and corrosive media transfer
The smooth PTFE inner tube provides excellent resistance to many fuels, gases, strong acids, strong alkalis, solvents and corrosive media. It also supports stable flow and reduces material retention.
The high-strength 304 stainless steel braid improves pressure resistance, burst strength and mechanical durability.
The smooth TPU/PU outer layer protects the stainless steel braid from wear, contamination and external damage. It also gives the hose a cleaner appearance for equipment applications where surface cleanliness matters.
The outer cover can be customized in black, red, blue or other colors according to customer requirements. This is useful for line identification, equipment matching and brand appearance.
The hose supports a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature transfer environments.
PTFE is chemically stable and compatible with many industrial fluids, solvents, fuels and corrosive media.
This hose can be used for viscous media such as paint, adhesives and other fluid materials where chemical compatibility and stable flow are required.
Our TPU covered PTFE braided hose can be used in:
Pharmaceutical fluid transfer
Food and beverage processing equipment
Cosmetics production equipment
Paint and adhesive transfer
Corrosive chemical fluid transfer
High-temperature hydraulic systems
Pneumatic applications
Fuel and gas transfer
Strong acid and alkali transfer
Industrial equipment connection lines
Clean transfer systems
Item | Available Options |
|---|---|
Product Name | TPU Covered PTFE Braided Hose |
Model Series | JCC-61100-PTFE |
Inner Tube | Smooth PTFE tube |
Reinforcement | High-strength 304 stainless steel braid |
Outer Cover | Smooth TPU/PU protective layer |
Temperature Range | -70°C to +260°C |
Inner Diameter | 5/32” to 1” |
Outer Color | Black, red, blue or custom |
Main Advantages | Chemical resistant, clean outer surface, wear resistant, low permeability |
Application | Pharmaceutical, food, cosmetics, chemical, hydraulic and pneumatic transfer |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-61104-PTFE | 5/32” / 4 mm | 9.4 mm | 27 MPa | 82 MPa | 50 mm |
JCC-61106-PTFE | 1/4” / 6.35 mm | 11.5 mm | 42 MPa | 126.9 MPa | 75 mm |
JCC-61108-PTFE | 5/16” / 7.8 mm | 13.5 mm | 19 MPa | 57.9 MPa | 100 mm |
JCC-61110-PTFE | 3/8” / 9.7 mm | 14.5 mm | 23 MPa | 70.2 MPa | 125 mm |
JCC-61113-PTFE | 1/2” / 12.7 mm | 18.5 mm | 23 MPa | 68 MPa | 165 mm |
JCC-61116-PTFE | 5/8” / 15.9 mm | 21.8 mm | 18 MPa | 53.8 MPa | 200 mm |
JCC-61119-PTFE | 3/4” / 19 mm | 25.1 mm | 15 MPa | 44.8 MPa | 225 mm |
JCC-61125-PTFE | 1” / 25.6 mm | 31.5 mm | 10 MPa | 31 MPa | 300 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional PTFE hose manufacturer specializing in PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. We provide customized hose solutions for pharmaceutical equipment, food processing systems, cosmetics production, chemical transfer, automotive systems, hydraulic equipment and industrial fluid transfer applications.
For global equipment manufacturers, distributors and industrial buyers, we provide factory-direct PTFE hose solutions with stable quality, flexible customization, short lead time and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce sourcing cost, shorten the supply chain and improve procurement efficiency.
The TPU/PU outer cover protects the stainless steel braid and provides a cleaner, smoother hose surface for equipment installation.
The PTFE inner tube is compatible with many chemicals, fuels, gases, solvents and corrosive media.
We can customize hose length, inner diameter, fittings, connector type, outer cover color and assembly structure according to your equipment.
We support fast response for replacement hoses, project orders and customized production. Samples can be provided for testing before bulk order.
