Solventless lamination runs on tight process windows: adhesive viscosity, temperature stability, and consistent delivery all have to stay controlled—otherwise you risk unstable coating weight, poor bonding, and unplanned downtime.

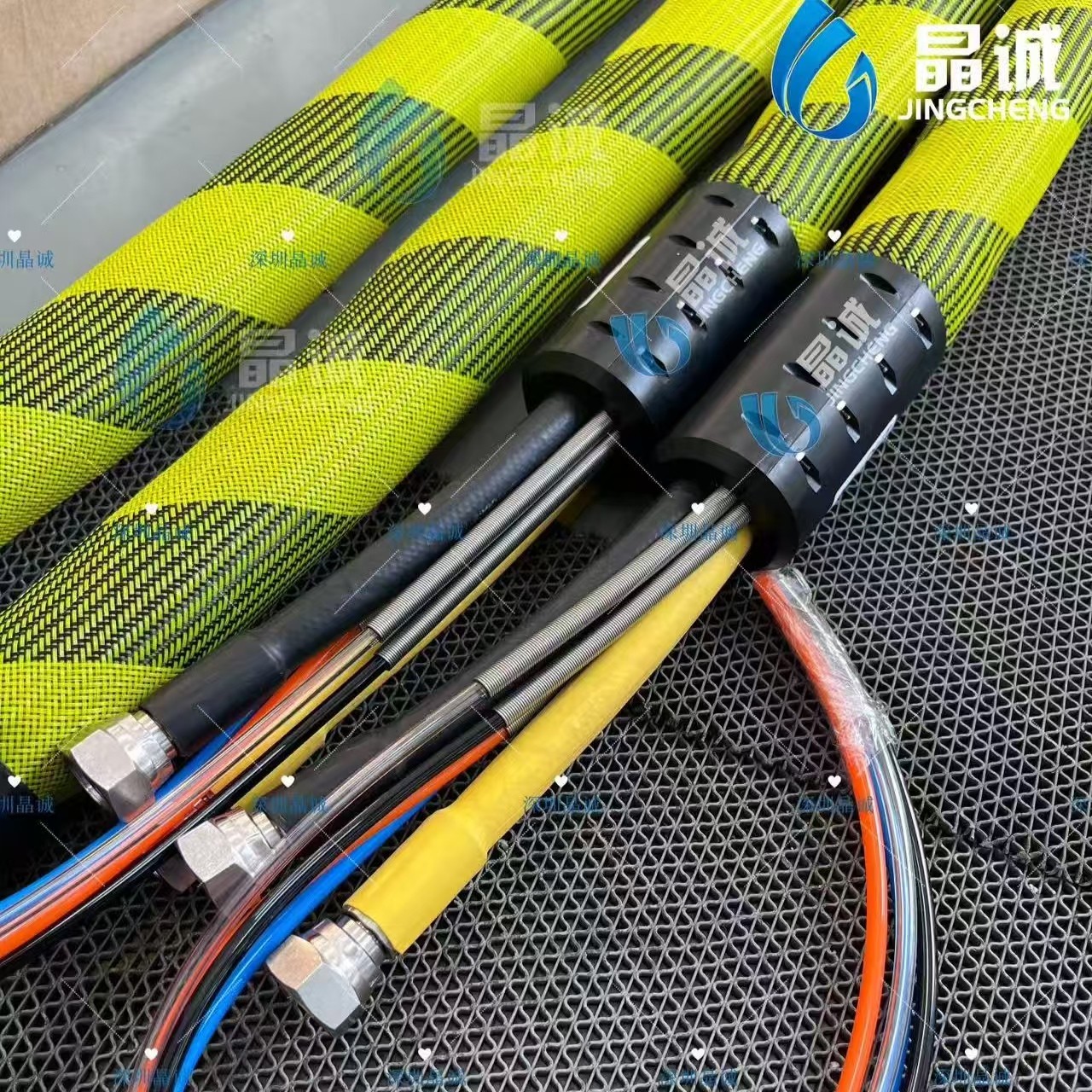

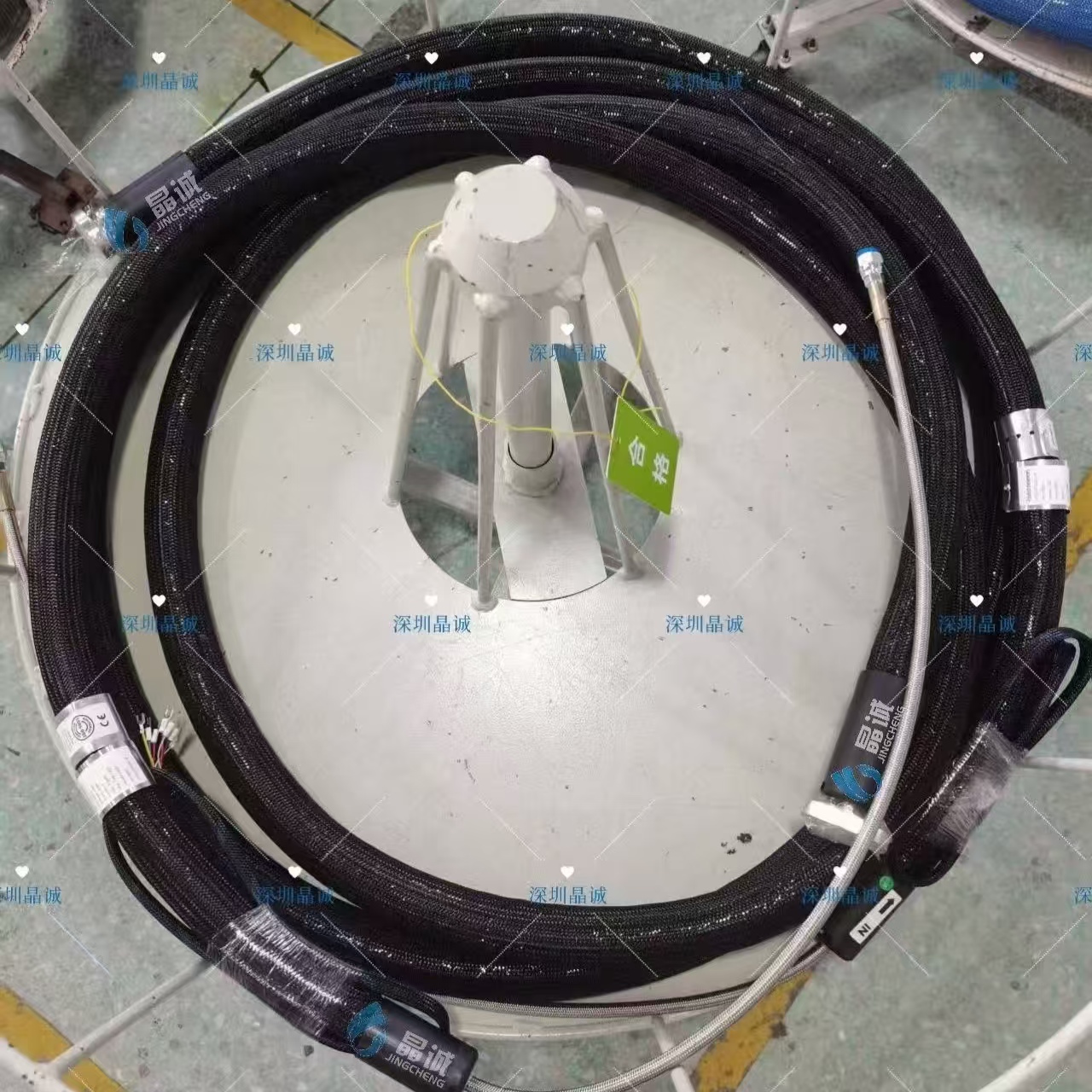

Our solventless laminator hose assemblies are built for insulated heat-traced transfer, helping keep your adhesive/fluids at a stable setpoint while protecting the line with reliable sealing and durable routing. This product is listed for solventless laminating machines in our catalog.
Max operating temperature up to 230°C (design-dependent).
Pressure capability based on size (catalog reference shows up to 173 bar working / 690 bar burst for certain sizes; design-dependent).
Uniform heating layer (woven heating element) to reduce internal temperature variation (design-dependent).
High-efficiency insulation materials to balance heat retention and safer surface temperature (design-dependent).
Wide electrical & control options: voltage range 12Vac–380Vac, multiple sensor types (PT100 / thermocouples, etc.) (design-dependent).
Solventless adhesive systems are sensitive to temperature. A small drift can change viscosity, pressure stability, coat weight, and even mixing performance. A properly designed heated/insulated hose helps you:
keep flow stable at the target temperature,
reduce viscosity spikes and pulsation,
protect pumps/valves from overload caused by thickened material,
improve repeatability and reduce scrap during long runs.
Engineered thermal stability: insulation + heat tracing designed around your setpoint and ambient conditions.
Process-fit assembly: built to match routing, fittings, and machine interface for clean installation and maintenance.
Spec-driven options: voltage, sensor, power density, length, and hose diameter can be configured for your laminator.
Values below are catalog references for the solventless laminator hose section; final ratings are design-dependent and confirmed by the exact build.
| ID (inch) | OD (mm, ±0.2) | Working Pressure (bar / psi) | Burst Pressure (bar / psi) | Min Bend Radius (mm) |
|---|---|---|---|---|
| 1/4" | 9.0 | 173 / 2501 | 690 / 10005 | 30 |
| 5/16" | 11.0 | 158 / 2284 | 630 / 3915 | 40 |
| 3/8" | 12.4 | 135 / 1958 | 540 / 7830 | 60 |
| 1/2" | 15.9 | 118 / 1704 | 470 / 6815 | 150 |
Common build variables include (all design-dependent):
Voltage: 380Vac / 220Vac / 110Vac / 12Vdc and others
Temperature sensor: J-type / K-type / PT100 / PT1000 / NI120 / custom
Hose length: 0.1 m to 10 m (and custom)
Hose size: common diameters (e.g., Φ8 / Φ12 / Φ16 / Φ19 / Φ25) and custom
Max temperature target: 100°C / 120°C / 200°C / 400°C options (build-dependent)
Pressure target: 4 / 10 / 20 / 35 MPa options (build-dependent)
Power density: 110 / 150 / 170 / 200 W/m options (build-dependent)
Fittings: metric / imperial / BSP and custom interfaces
To spec correctly, send:
Material/adhesive type + any cleaning media
Setpoint temperature (and allowable fluctuation)
Max working pressure + expected spikes
Flow rate and duty cycle (continuous / intermittent)
Required length + routing constraints + minimum bend radius you can allow
Machine brand/model + port thread standard (metric / NPT / BSP)
Power supply (voltage, single/three-phase)
Sensor requirement (PT100, thermocouple, none) + controller interface needs
Any safety/environment notes (abrasion, hot surfaces, tight spaces)
We follow a clear build flow: inquiry → spec confirmation → quotation → production → inspection & packing → shipping.
Our company is established in 2005, with operations in Shenzhen and a factory in Zhongshan.
